Amptron
12V 100Ah/200A Continuous Discharge BluEdge SLIMLINE LiFePO4 Battery + Bluetooth + RS485
🛒 Online Only
Pay in 4 interest-free with
or
or
$975.00
or 4 × $243.75 with AfterPay
or $97.50/wk with Zip
✓ Secure Checkout
🛡️ 3-Year Warranty
↩️ Easy Returns
🚚 Fast Shipping

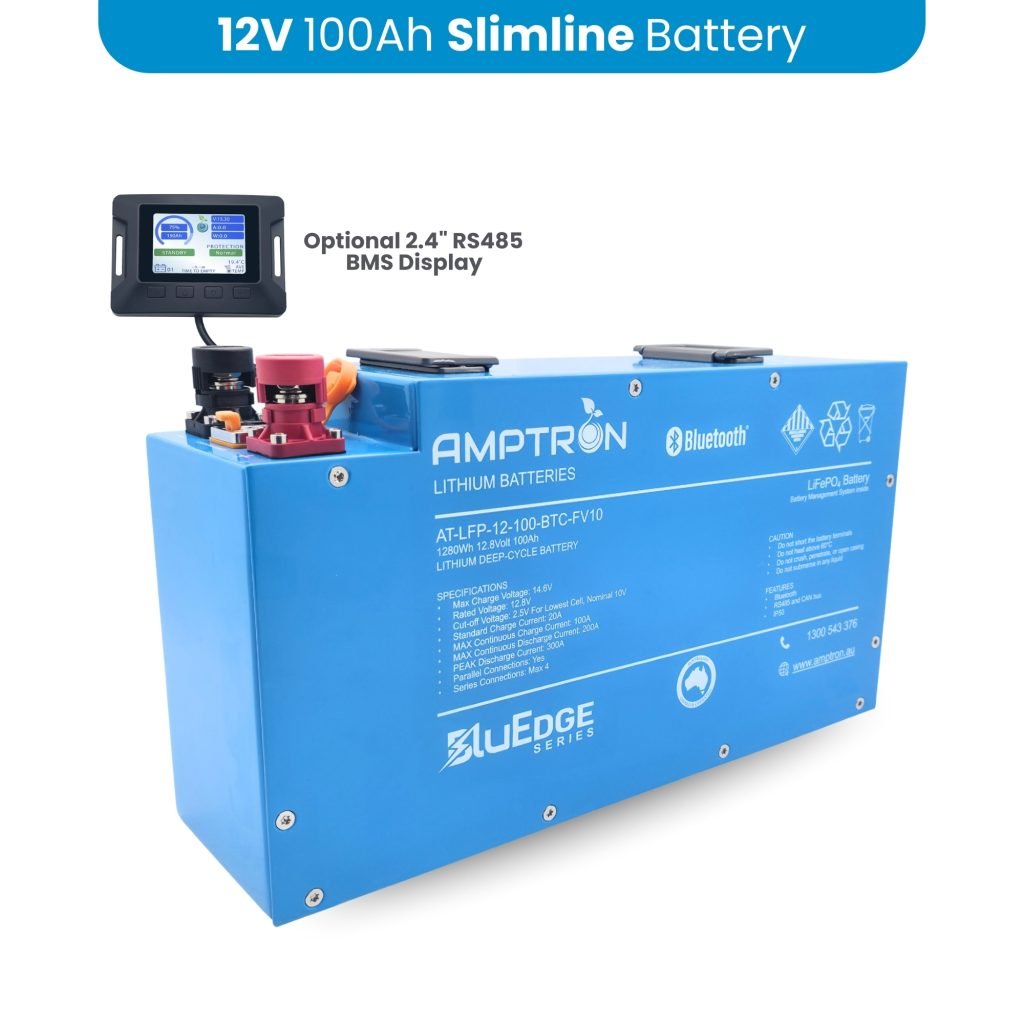

Amptron BluEdge 12V 100Ah 200A SLIMLINE LiFePO4 Battery with Bluetooth + RS485 + CANbus
The Amptron® BluEdge 12V 100Ah Slimline Battery is a premium, robust LiFePO4 solution with Bluetooth, CANBus, and RS485 communication. Designed for tight-space installations like 4×4 canopies, behind seats, or drawer systems, it delivers 200A continuous and 300A peak discharge, ideal for powering larger loads inverters, pumps, and compressors. Backed by a 5-year warranty and long cycle life.
*** Please note, this model does not support parallel communication.
Free in-store installation is available at our shops, or you can call us for our competitively priced Roadside and Onsite Service.
Product Description
Detailed information and noted points:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-12-100-BTC-FV10
|
BluEdge Series – 12V 100Ah / 200A Continuous Discharge Lithium LiFePO4 battery + Bluetooth
|
|
Size
|
L-395mm x W-118mm x H-220mm | |
|
Weight
|
12.5 kg
|
|
|
Connection Terminals
|
M8
|
|
|
Connection Terminal Torque Limit
|
6Nm | |
|
Outer Casing Material
|
Powder-coated Aluminum
|
|
|
Casing material for single cell
|
Aluminum
|
|
|
IP Rating
|
IP50
|
|
|
Chemistry
|
Lithium iron Phosphate (LiFePO4)
|
Working voltage per cell: 3.2V | Max. charge voltage per cell: 3.65V
|
|
Cell type
|
Prismatic | |
|
Rated Capacity
|
100Ah / 1280Wh (at 0.2C)
|
|
|
Battery packs in parallel
|
Supported (4)
|
* Parallel communication not supported
|
|
Battery packs in series
|
Supported
|
|
|
Battery cycle life
|
4000 times (0.2C standard charge & discharge)
|
|
|
Rated voltage / nominal voltage
|
12.8V | |
|
Operating voltage range
|
10V-14.6V
|
|
|
Shipping voltage
|
11-14V | |
| Recommended charge voltage |
14.4V
|
|
|
Cut-off voltage
|
10V / When lowest cell reaches 2.5V
|
|
|
Depth of discharge (DoD)
|
100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} Recommended DoD 80{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
|
|
Standard
(Recommended charge current)
|
20A
|
|
|
Charging time at recommended charge current
|
4-5 Hours
|
|
|
Maximum charge current
|
100A
|
|
|
Max continuous discharge current
|
200A
|
|
|
Peak discharge current (3 seconds)
|
300A
|
|
|
Internal resistance
|
≤ 20mΩ
|
|
|
Operating power consumption
|
≤ 25mA
|
|
|
Operating temperature
|
Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
|
|
|
Storage temperature range
|
Within 2 months -20°C～40°C
Within 6 months -10°C～35°C
|
|
|
Recommended storage temperature
|
20°C±5°C
|
|
|
Storage humidity range
|
10{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}-90{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
|
|
Recommended storage duration
|
Charge to 13.3V or 40-60{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} SOC
every 6 months
|
|
|
Cell over charge protection
|
3.65V ± 0.05V
|
|
|
Cell over discharge protection
|
2.5V ± 0.1V
|
|
|
Charging over current protection
|
100A (10s)
|
|
|
Discharging over current protection
|
1st 205A (10s)
2nd 305A (2s)
|
|
|
Short circuit protection
|
1600A (400us)
|
- ✓ Superior vibration and corrosion resistance
🛡️ Get More Warranty with Battery Australia
Purchase from Battery Australia and get up to 6 months EXTRA warranty — 3 months for buying, plus 3 months for in-store fitting. *T&Cs apply.
| Technical Specifications — 12V 100Ah/200A Continuous Discharge BluEdge SLIMLINE LiFePO4 Battery + Bluetooth + RS485 | |
|---|---|
| Dimensions | N/A |
| SKU | AT-LFP-12-100-BTC-FV10 |
| Delivery Options | |
|---|---|
| Standard Shipping | $15.00 — 3 to 5 business days |
| Express Shipping | $25.00 — 1 to 2 business days |
| Free Shipping | Orders over $150 — Standard free |
| Click & Collect — 5/17 Benronalds St, Seventeen Mile Rocks | FREE — Ready in 2 hours |
| Click & Collect — 240 Robinson Rd East, Geebung | FREE — Ready in 2 hours |
⚠️ Dangerous Goods: Lithium and lead acid batteries are classified as dangerous goods for shipping. Some remote areas may have restrictions.
