Description
Product Description

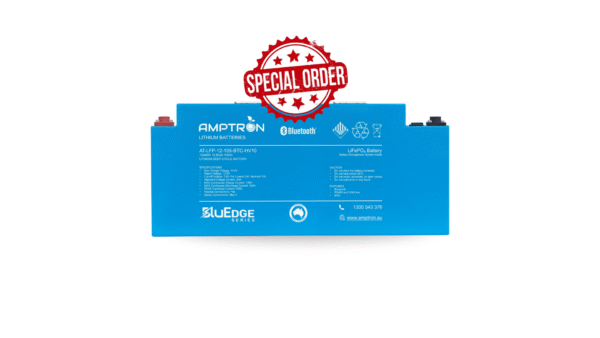

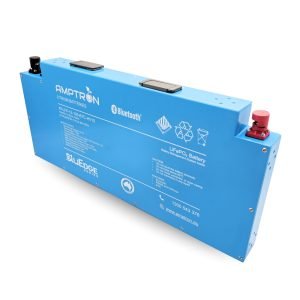

The AMPTRON BluEdge 12V 105Ah Lithium Battery delivers powerful and reliable deep cycle performance for caravans, RVs, marine systems, 4WDs, and off-grid applications. Designed as a direct replacement for AGM, Gel, and flooded lead acid batteries, this slimline LiFePO4 battery provides advanced energy storage in narrow and space-constrained installations.
The AMPTRON BluEdge 12V 105Ah Lithium Battery features integrated Bluetooth, CANbus, and RS485 communications for advanced battery monitoring and system integration. Its robust built-in Battery Management System (BMS) protects the battery from over charging, over discharging, short circuits, excessive temperatures, and reverse polarity.

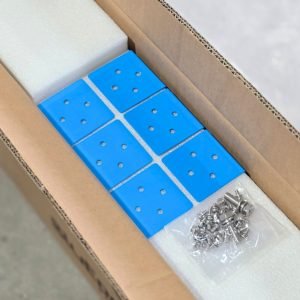

Built using premium aluminium encased prismatic cells and solid busbar connectors, this battery offers superior durability and vibration resistance for harsh Australian conditions. The slimline metal case design also allows versatile mounting options, including side installation for compact setups.
With a maximum continuous discharge current of 180A and peak discharge current of 300A, the AMPTRON BluEdge 12V 105Ah Lithium Battery provides dependable power for high-demand applications. The battery delivers more than 3500 cycles at 100% depth of discharge, ensuring long-lasting performance and excellent value.
This battery is ideal for caravans, campers, solar systems, backup power, and mobile energy solutions requiring lightweight, high-capacity lithium performance.
✅ Key Features
- Slimline LiFePO4 blade battery design
- Built-in Bluetooth, CANbus, and RS485
- Advanced Battery Management System (BMS)
- Heavy-duty aluminium prismatic cells
- 180A continuous discharge current
- 300A peak discharge current
- Long cycle life over 3500 cycles
- Lightweight and compact metal case
- High vibration resistance
- Suitable replacement for AGM and Gel batteries
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Model | AT-LFP-12-105-BTC-HV10 |
| Battery Chemistry | LiFePO4 |
| Voltage | 12.8V |
| Capacity | 105Ah / 1344Wh |
| Continuous Discharge | 180A |
| Peak Discharge | 300A (3 sec) |
| Charge Voltage | 14.4V – 14.6V |
| Battery Dimensions | 635 x 60 x 285 mm |
| Weight | 14 kg |
| Terminal Type | M8 |
| IP Rating | IP50 |
🔒 Built-In BMS Protection Features
- Low voltage protection
- Over voltage protection
- Short circuit protection
- Over current protection
- Reverse polarity protection
- Thermal protection
- Automatic cell balancing

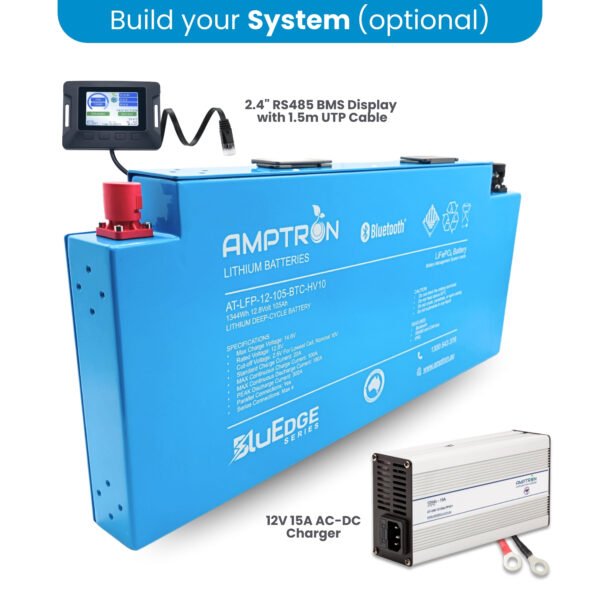

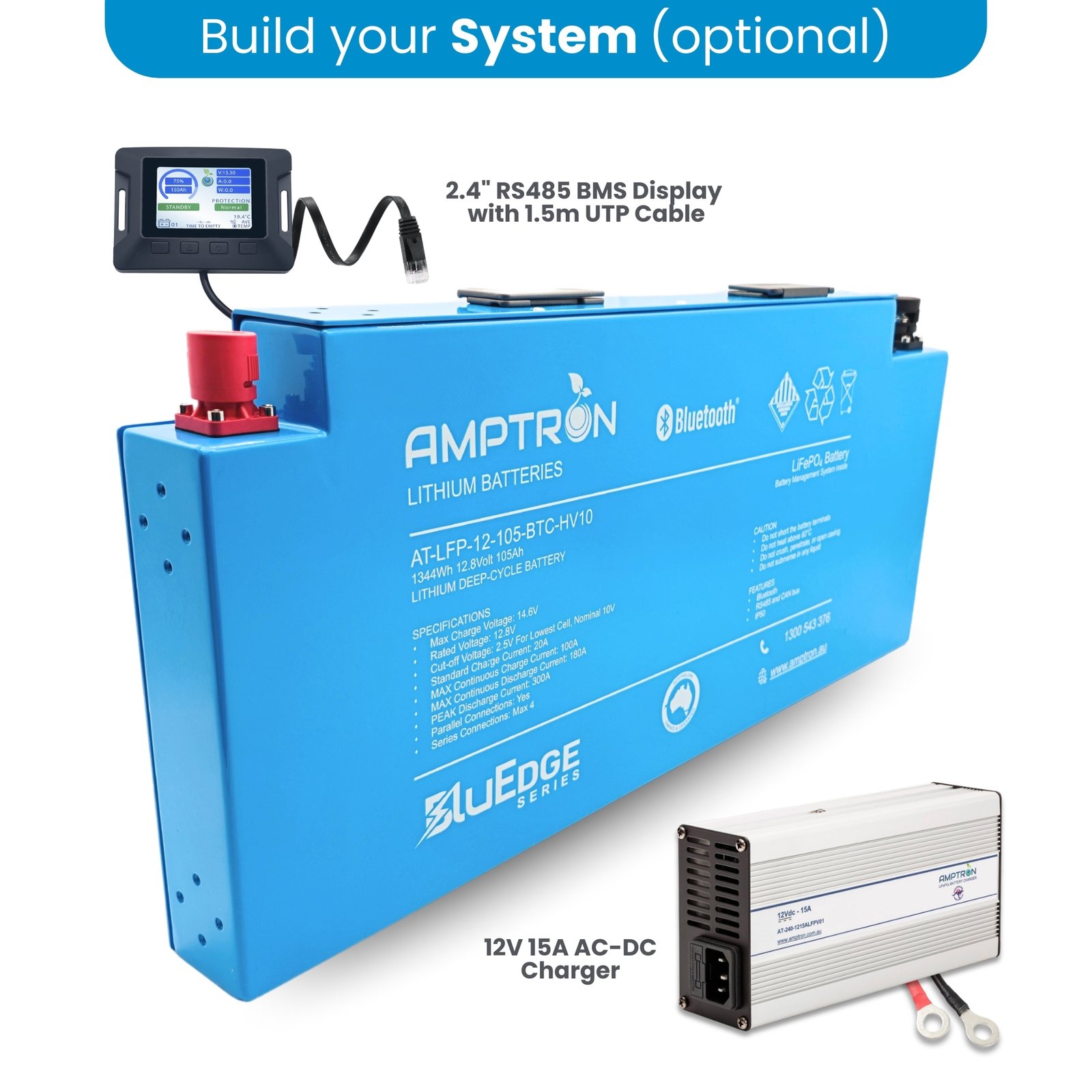

⚡ Optional Accessories

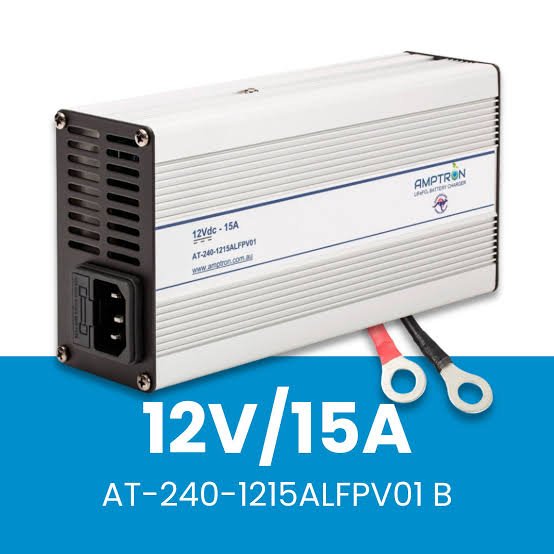

12V 15A AC-DC Charger
Compatible charger available with 10% discount when purchased with the battery.

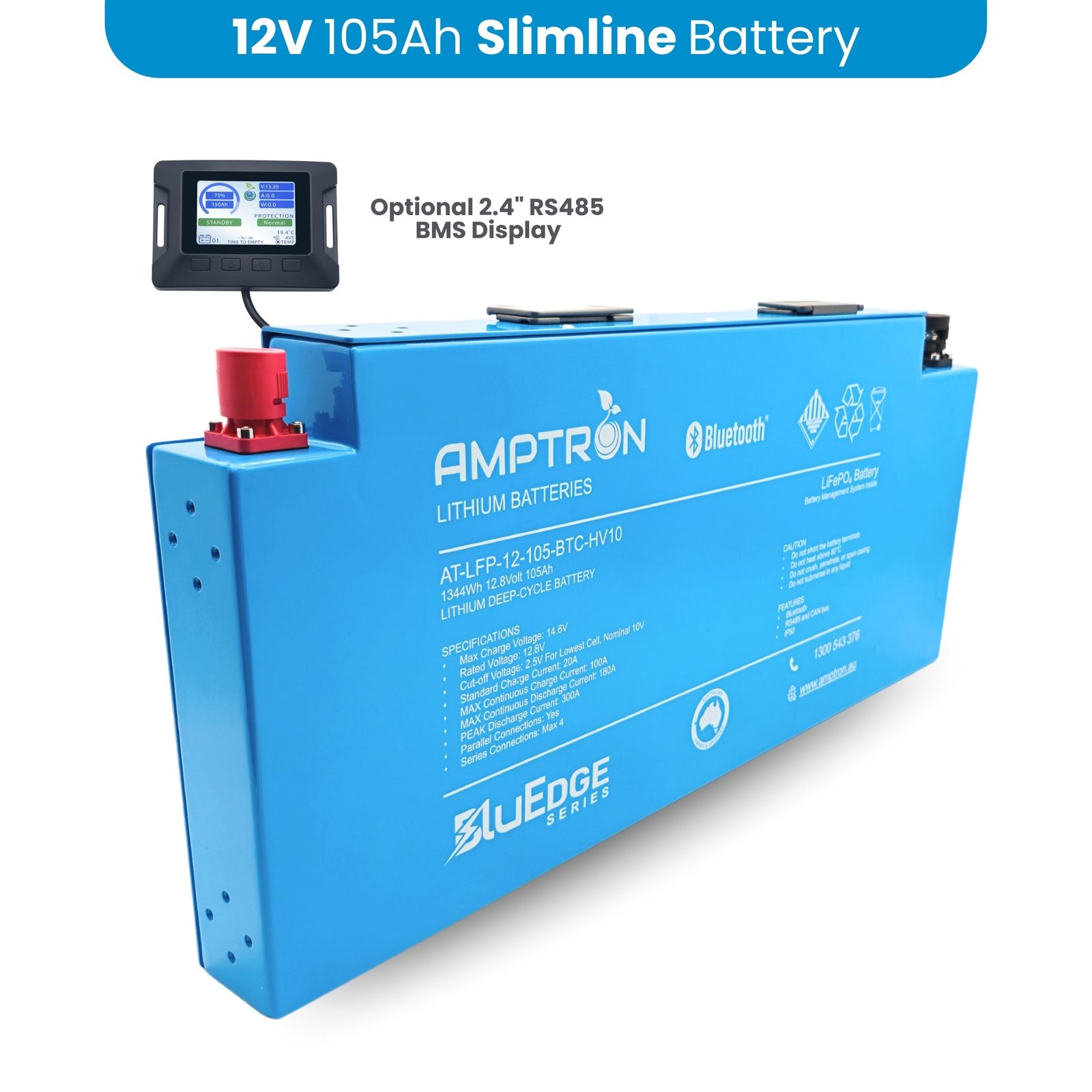

2.4″ BMS Display
Monitor battery performance with the optional BMS display and LAN cable connection.
🌞 Ideal Applications
- Caravan and RV systems
- 4WD and camping setups
- Marine and boating applications
- Solar energy storage
- Off-grid systems
- Backup power solutions
🛡️ Warranty
- Warranty: 4 Years
Reviews
There are no reviews yet.
