Description

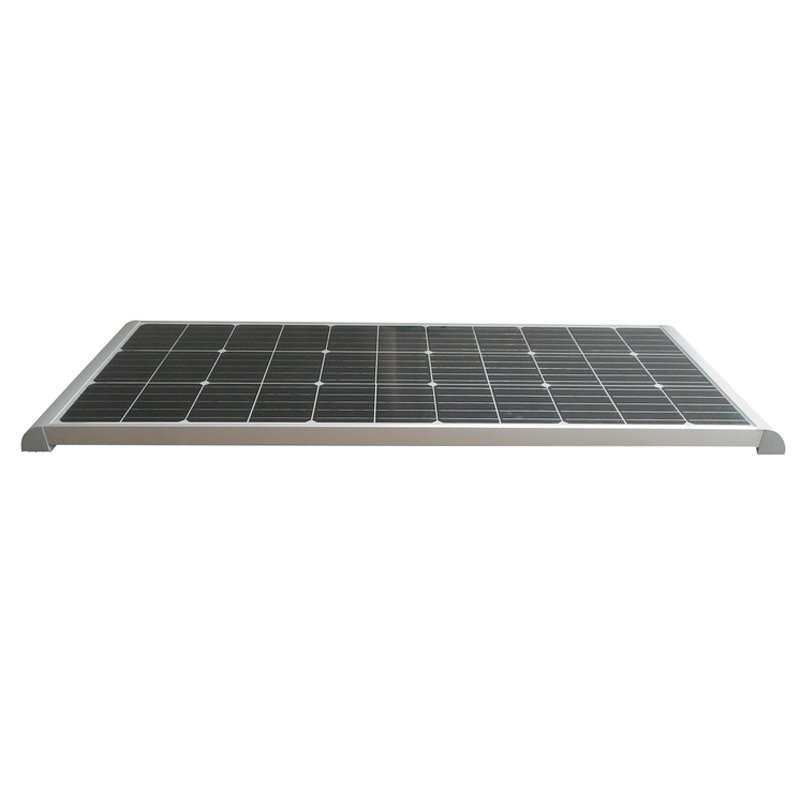

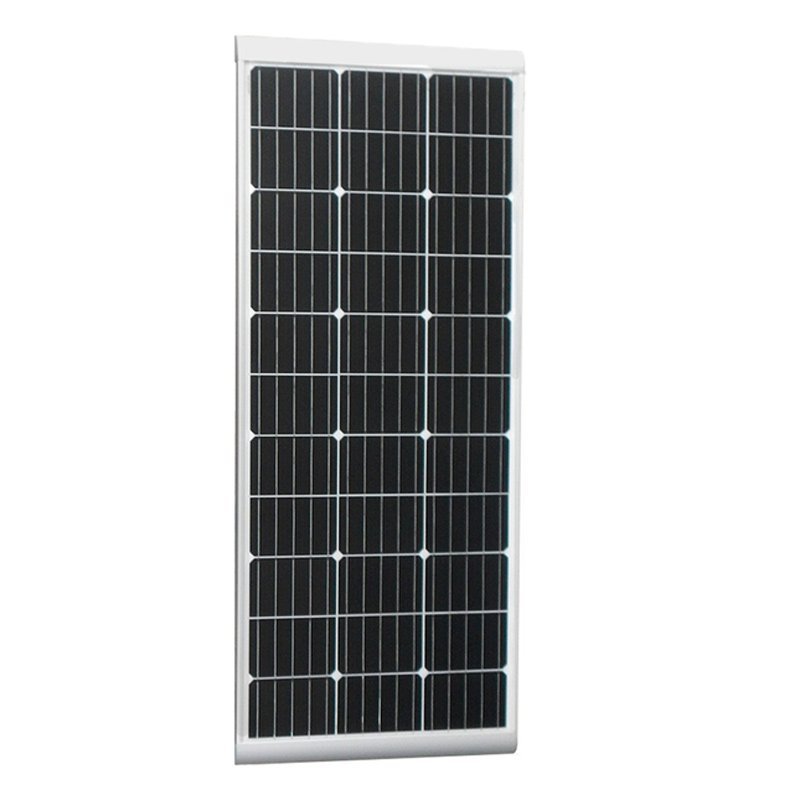

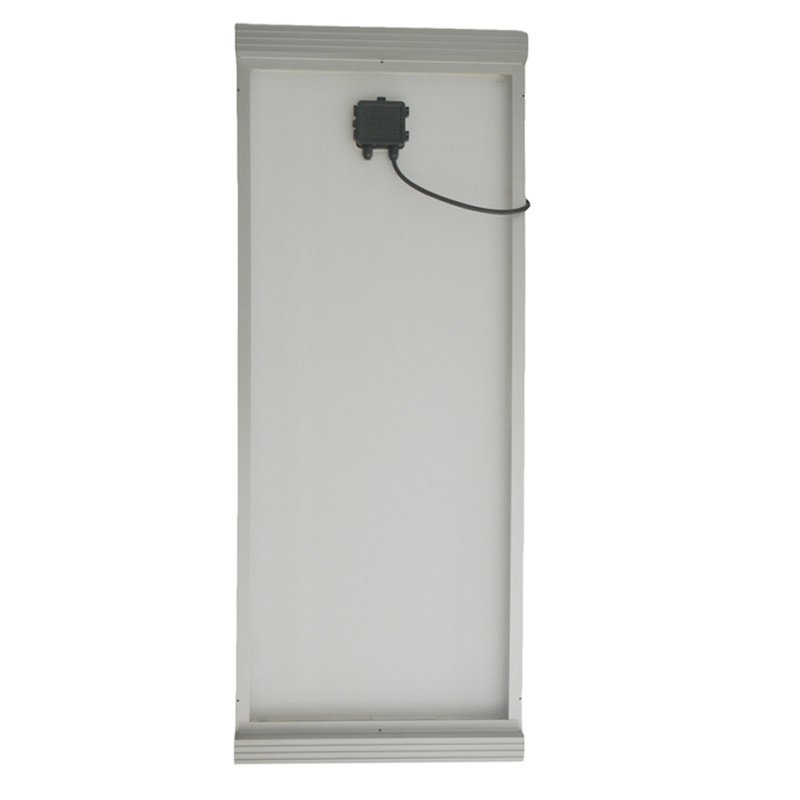

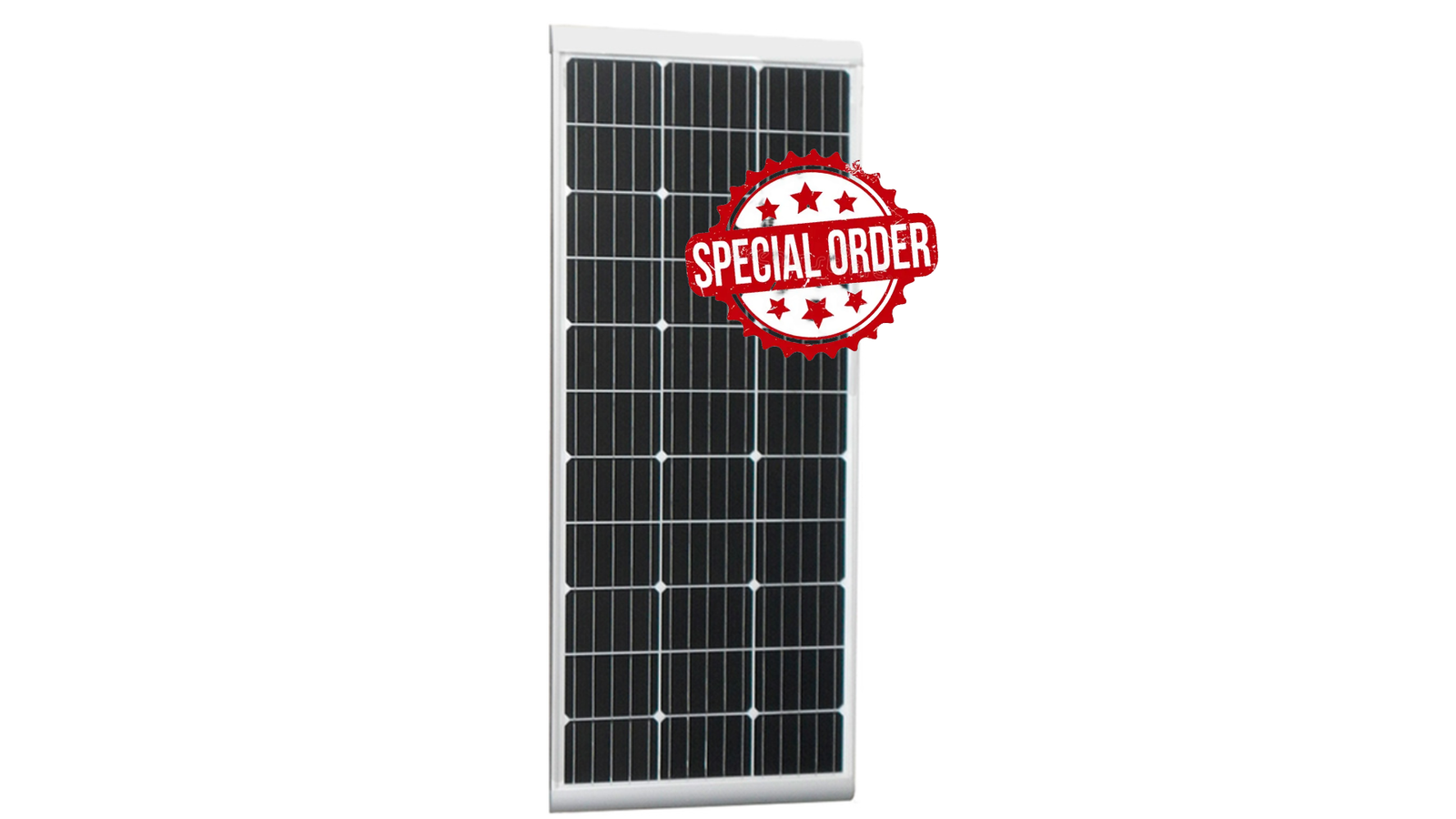

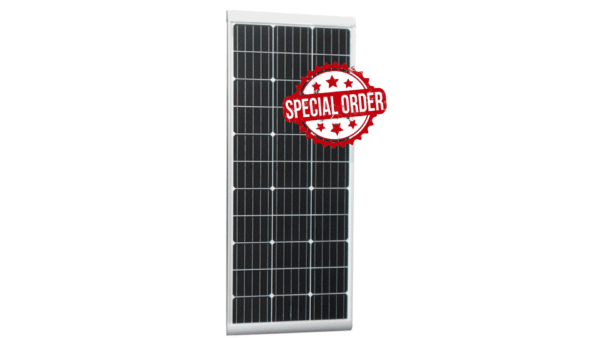

These modules are ideally suited for use on RV rooftops where a glass panel design is desired. The module design incorporates a unique aerodynamic profile to lower wind resistance and noise. The robust manufacturing process and the choice of reliable specifications of raw materials ensure reliability and trouble-free operation over the product life.
Specifications:
|
Item
|
Specification
|
Description/Remarks
|
|
MODEL
|
AT-AEROD-MONOSOL-12-170WV01
|
170W 12V Aerodynamic Glass Mono-crystalline Solar panel
|
|
Maximum power rating
|
Pmax 170 Watt
|
|
|
Solar Panel dimensions
|
L-1758mm x W-520mm x H-52mm
|
|
|
Tolerance on power output
|
=/- 6.0%
|
|
|
Current at max power
|
Imax 9.35 Amps
|
|
|
Voltage at max power
|
Vmax 18.18 Volts
|
|
|
Short circuit current
|
Isc 9.91 Amps
|
|
|
Open circuit voltage
|
Voc 21.44 Volts
|
|
|
No of cells
|
32
|
|
|
Cell Efficiency
|
21.80%
|
|
|
Temp. coefficient – short circuit current
|
1.2mA / ℃
|
|
|
Weight
|
12.20kg
|
100W 12V Glass Perc Shingled Panel Features:
The robust manufacturing process and the choice of reliable specifications of raw materials ensure reliability and trouble-free operation over the product life.
- Slimline profile not widely available but perfect for tight spaces
- The Shingled design of the 210mm PERC Mono solar cells do not require a bus bar across the top of the cells, resulting in improved power conversion efficiency of the module. Shingled solar panels also have significantly reduced losses caused by shading. Shingled panels are also more resistant to failures caused by external forces and thermal expansion impacting the modules.
- Additionally, the panels have limited visible circuitry resulting in a clean and simple curb appeal.
