Description

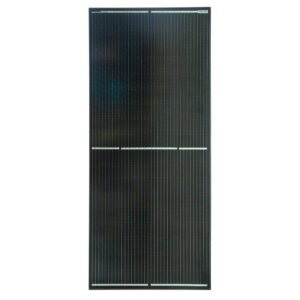

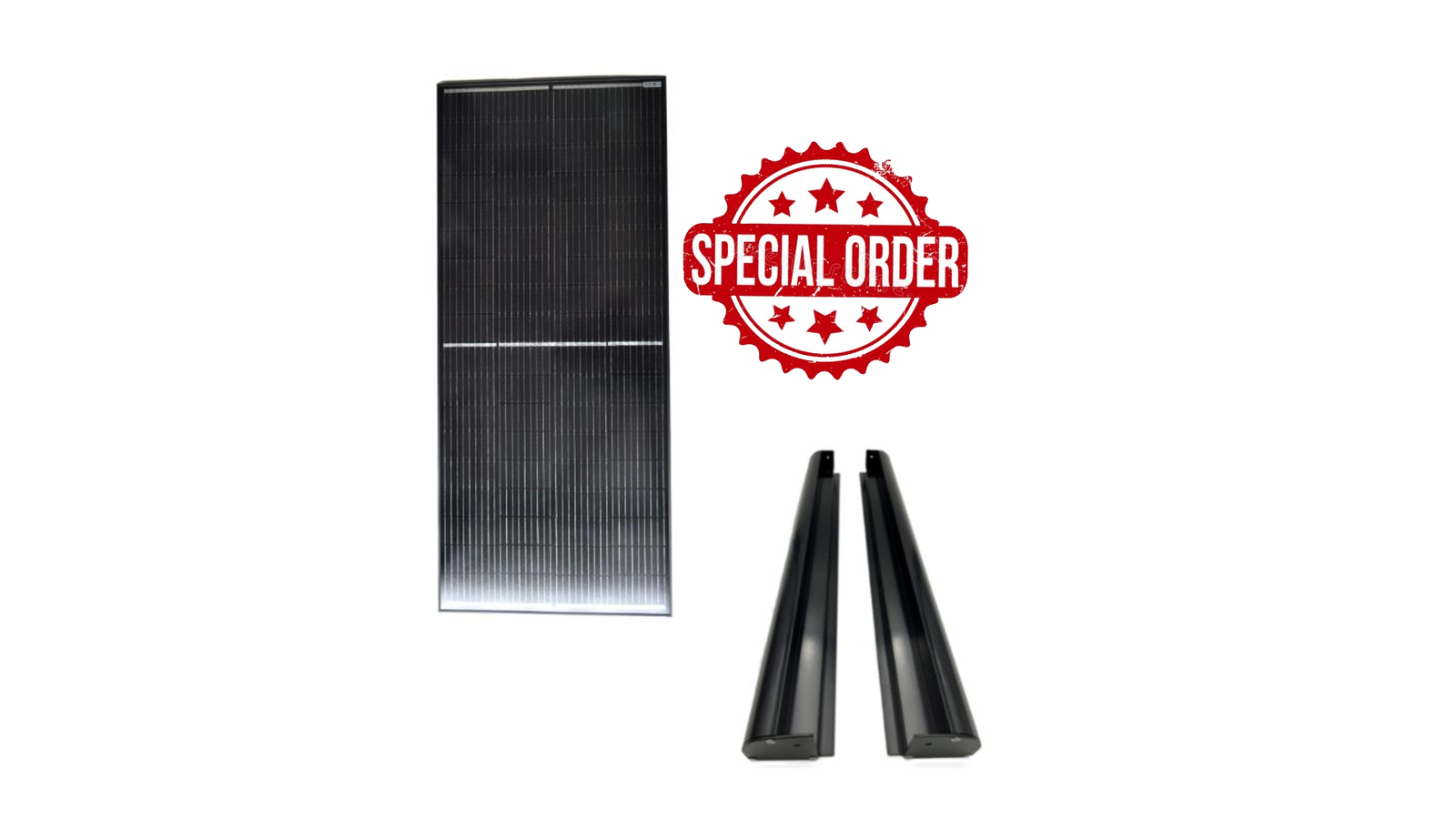

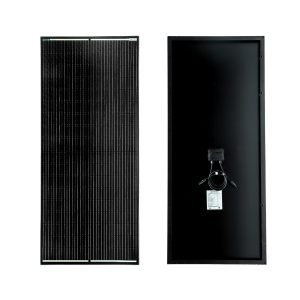

200W High Voltage Glass Perc Half Mono-crystalline Solar panel, 35mm Black Aluminium Framed Panel – Optional Aerodynamic Mounting Kit

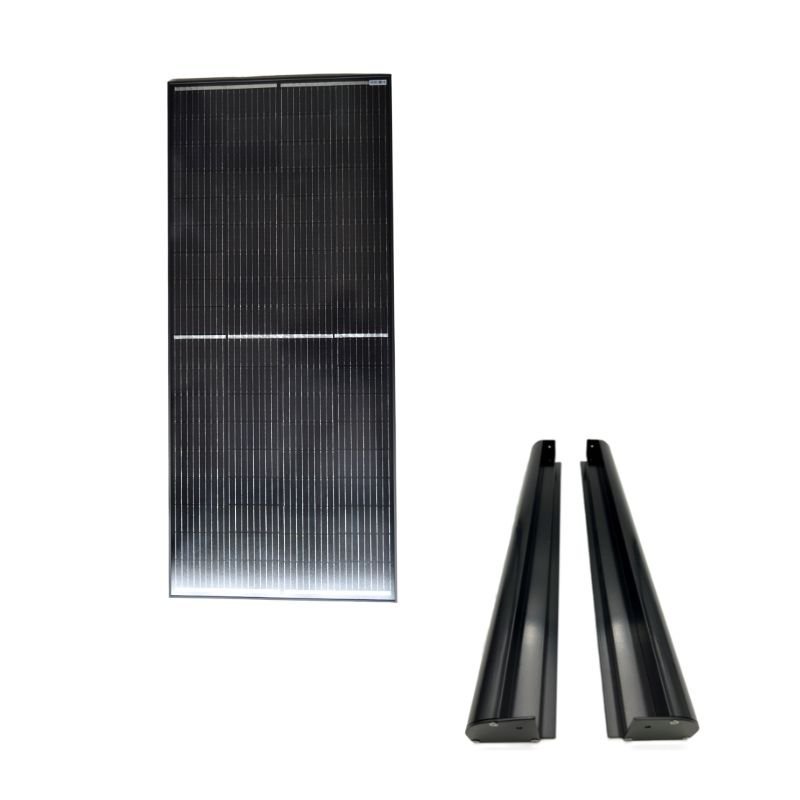

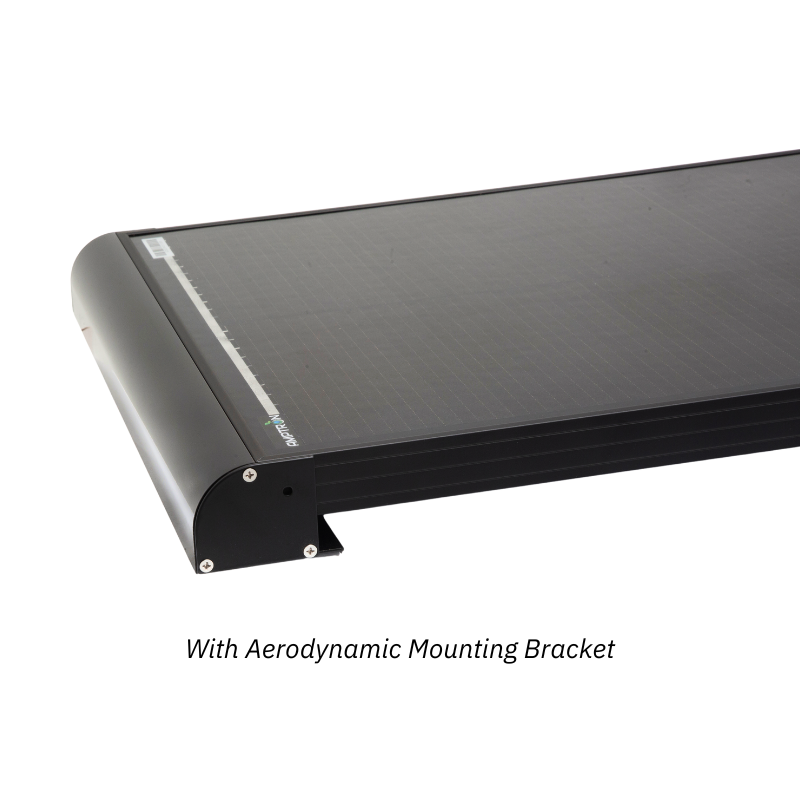

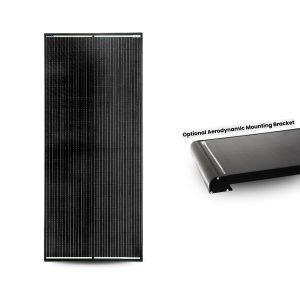

Our High-Voltage Panel (63.8V) is Ideal for charging higher voltage battery systems (24V, 36V or 48V). This 200W is a highly efficient Photovoltaic Power Source For RVs, Campers, Cabins, Boats and Home Backup Power Systems. It has excellent shading tolerance, thanks to the half cut cell topology. Easily add an aerodynamic mounting set (optional) for hassle free Caravan / Motorhome mounting and increased aerodynamic efficiency.
Including Mounting Brackets: Yes

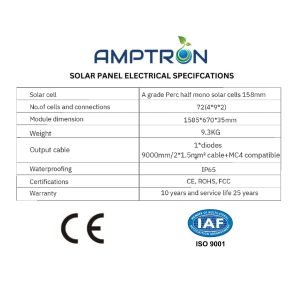

Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-GLASS-63.8-200AV10
|
200W 12/24/36/48V Glass Perc Half Mono-crystalline Solar panel
|
|
Maximum power rating
|
Pmax 200 Watt
|
|
|

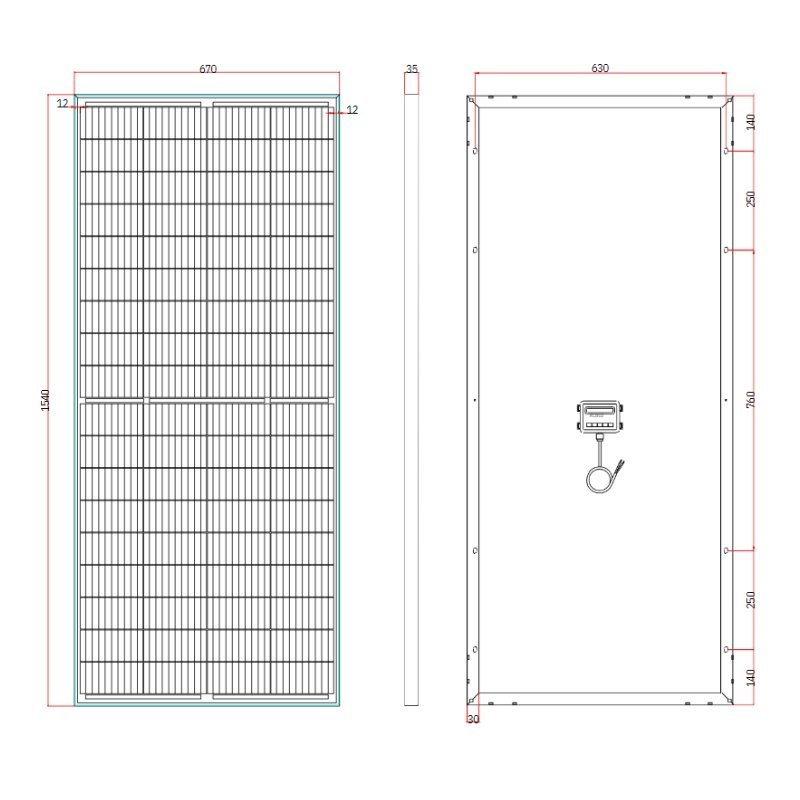

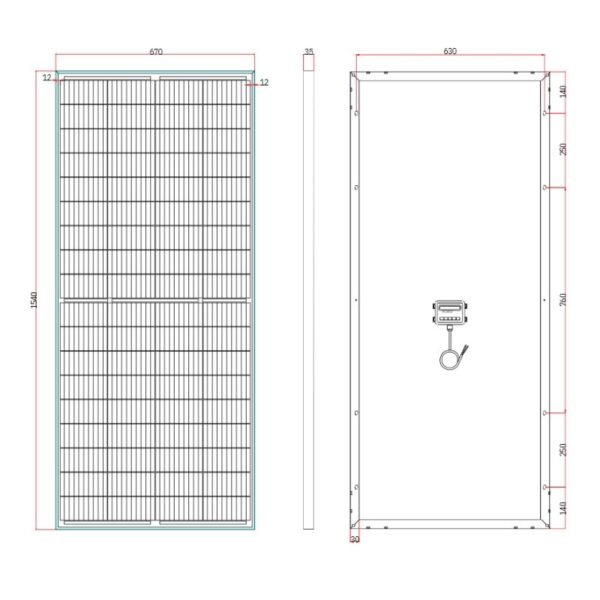

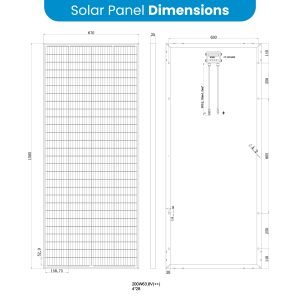

Solar Panel dimensions
|
L-1585mm x W-670mm x H-35mm (without Aerodynamic brackets)
L-1655mm x W-670mm x H-35mm (with Aerodynamic brackets) |
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power
|
Imax 3.14Amps
|
|
|
Voltage at max power
|
Vmax 63.8 Volts
|
|
|
Short circuit current
|
Isc 3.29 Amps
|
|
|
Open circuit voltage
|
Voc 74.6 Volts
|
|
|
No of cells
|
112(4*28)
|
|
|
Cell Efficiency
|
22.70%
|
|
|
Maximum system voltage
|
1000V DC(IEC)
|
|
|

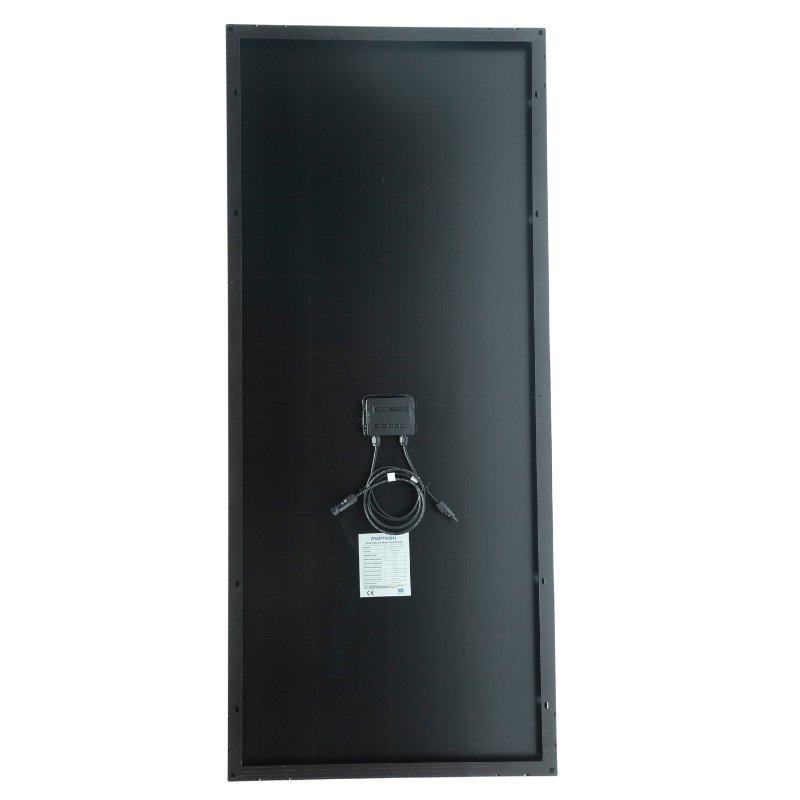

Junction Box
|
with 900mm x 4sqmm 2 core cable + MC4 compatible
|
|
|
Weight
|
9.3kg
|
