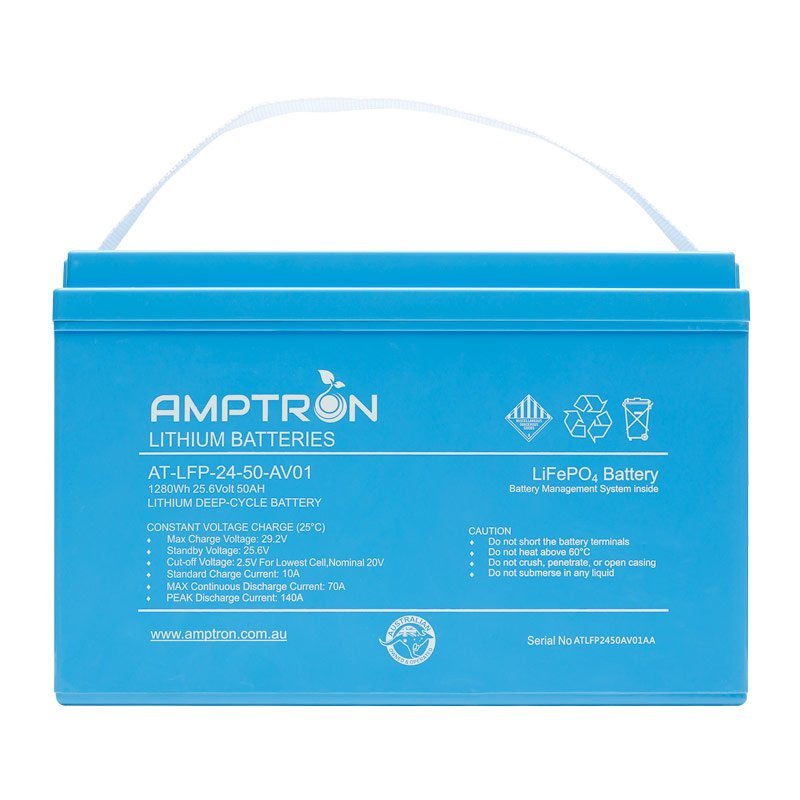

24V 50Ah / 70A Continuous Discharge LiFePO4 Battery
AMPTRON® 24V 50Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 70A and peak discharge current 140A for 5 seconds.
Free in-store installation is available at our shops, or you can call us for our competitively priced Roadside and Onsite Service.
Product Description
Detailed information and noted points:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-24-50AV01
|
24V 50Ah LiFePO4 Battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-330mm x W-172mm x H-215mm
|
L x W x H
|
|
Weight
|
13.5kg
|
|
|
Cell type
|
3.2V 50Ah
|
Prismatic cells
|
|
Battery module
|
8 pcs 3.2V 50Ah cells, 1 parallel string of 8 cells in series
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
50Ah / 1280Wh
|
|
|
Cycle life
|
> 2000 cycles at 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
25.6V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
29.2V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
2.5V for lowest cell, Nominal 20V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
Batteries can be discharged to 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} of the rated capacity
|
|
Optimum charge current
|
10A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Rapid charging
|
Max. charge current 50A (1C3A)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
70A
|
1.4C
|
|
Peak discharge current
|
140A
|
2.8C
|
|
Discharge performance in normal temperature
|
20A (0.2C3A) ≥ 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
1C3A ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～60℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
- ✓ Superior vibration and corrosion resistance
🛡️ Get More Warranty with Battery Australia
Purchase from Battery Australia and get up to 6 months EXTRA warranty — 3 months for buying, plus 3 months for in-store fitting. *T&Cs apply.
| Technical Specifications — 24V 50Ah/70A Continuous Discharge LiFePO4 Battery | |
|---|---|
| Dimensions | N/A |
| SKU | AT-LFP-24-50AV01 |
| Delivery Options | |
|---|---|
| Standard Shipping | $15.00 — 3 to 5 business days |
| Express Shipping | $25.00 — 1 to 2 business days |
| Free Shipping | Orders over $150 — Standard free |
| Click & Collect — 5/17 Benronalds St, Seventeen Mile Rocks | FREE — Ready in 2 hours |
| Click & Collect — 240 Robinson Rd East, Geebung | FREE — Ready in 2 hours |
⚠️ Dangerous Goods: Lithium and lead acid batteries are classified as dangerous goods for shipping. Some remote areas may have restrictions.
