AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

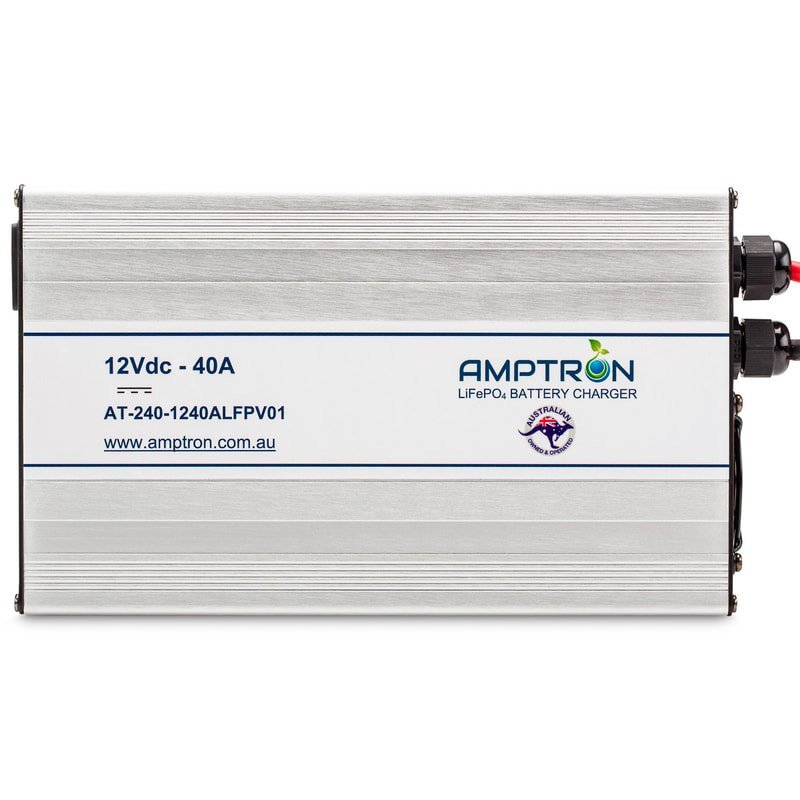

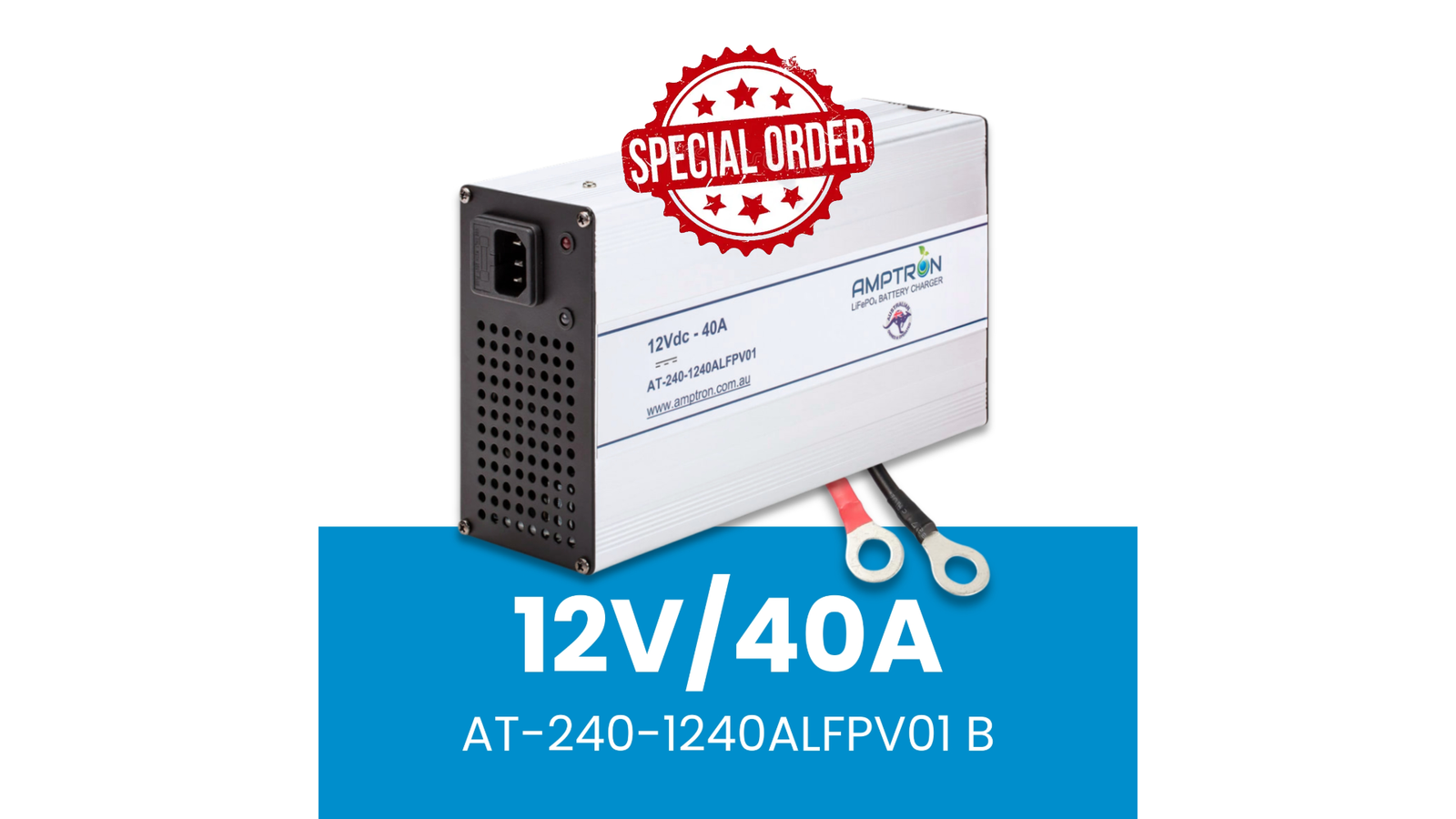

The 12V 40A model charger operates from mains AC 200-264V as input, supplying up to a large 40A charging output suitable for nominal 12V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-1240ALFPV01B
|
AC/DC 12V 40A LiFePO4 Battery Charger + Battery Wakeup
|
|
Input Voltage
|
min 200Vac to max 260Vac
|
|
|
Input Power
|
Max 754W
|
|
|
Constant charge voltage
|
Vdc min 14.3V to max 14.9V
|
|
|
Constant charge current
|
Min 38A to max 42A
|
|
|
Charge complete current
|
Vdc min 3.0A to max 3.4A
|
8% CC
|
|
Ripple voltage
|
250mV
|
|
|
Efficiency
|
83%
|
At full load
|
|
Product Dimensions
|
L-220mm x W-135mm x H-70mm
|
Foot Mount Bracket = L-14mm on each side of charger body
|
|
Packaged Weight
|
3Kg
|
Charge Curve:
