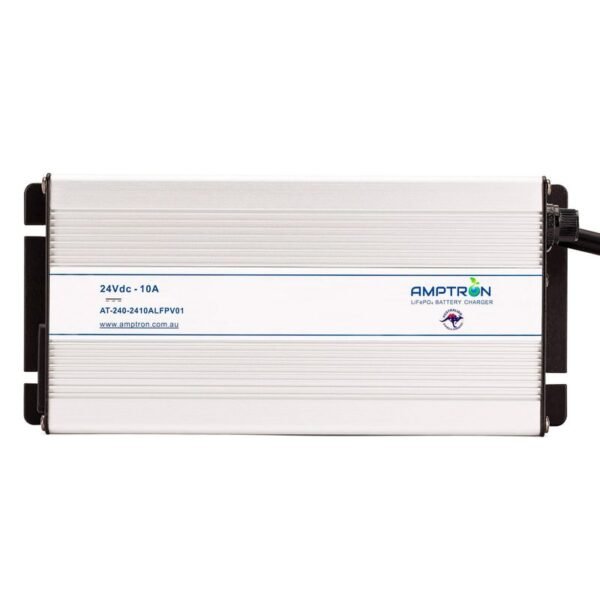

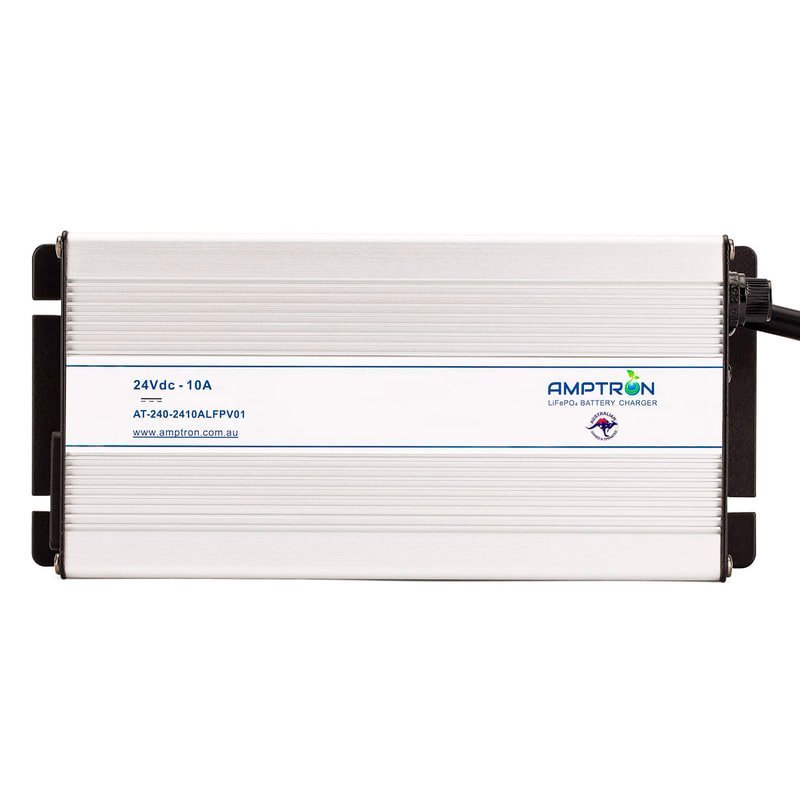

AC-DC 24V 10A Lithium ​Battery Charger c/w battery wakeup feature

SKU: AT-240-2410ALFPV01B

$208.00

18 People watching this product now!
product-delivery

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “AC-DC 24V 10A Lithium ​Battery Charger c/w battery wakeup feature”

Your email address will not be published. Required fields are marked *

Description

AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

The 24V 10A model charger operates from mains AC 200-264V as input, supplying up to 10A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.

Detailed information and noted points:

Item
Specification
Description/Remark
Model
AT-240-2410ALFPV01B
AC/DC ​24V 10A LiFePO4 Battery Charger + Battery Wakeup
Input Voltage
min 200Vac to max 264Vac
Input Power
Max 356.3W
Constant charge voltage
Vdc min 29.0V to max 29.4V
Constant charge current
Min 9.7A to max 10.3A
Charge complete current
Vdc min 0.6A to max 1.0A
Ripple voltage
250mV
Efficiency
85%
At full load
Product Dimensions
L-170mm x W-90mm x H-63mm
Weight
1Kg



Charge Curve:

Amptron EcoFlow Delta 1300 Power Pack Graph

BUILT IN PROTECTION SYSTEM
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers have a built-in Protection System to prevent damage to the charger from almost any external accidental occurrence that would normally cause damage. The internal Protection System will automatically disconnect to prevent damage to the charger, and will automatically reconnect when the error condition has been resolved.

PROTECTION SYSTEM FEATURES

  • Over Voltage Protection – When the charger output voltage exceeds the maximum charging voltage, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
  • Over Current Protection – When the charger output current exceeds the maximum charging current, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
  • Short Circuit Protection – When the charger detects a short circuit at output terminals, the charger enters a short-circuit protection state. It will restore to normal working conditions automatically after troubleshooting.
  • Reverse Polarity Protection – When the charger detects that the polarity at the output terminals are reversed, the charger enters a reverse polarity protection state. It will restore to normal working conditions automatically after troubleshooting. This Protection System is designed to last throughout the life of the charger and provide reliable charging for thousands of cycles.

AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers have been certified and registered with the Australian – Electrical Equipment Safety System. Achieving the Regulatory Compliance Mark (RCM) is a testament to our commitment regarding safety & product quality.



Please click and read Battery charger warranty policy
