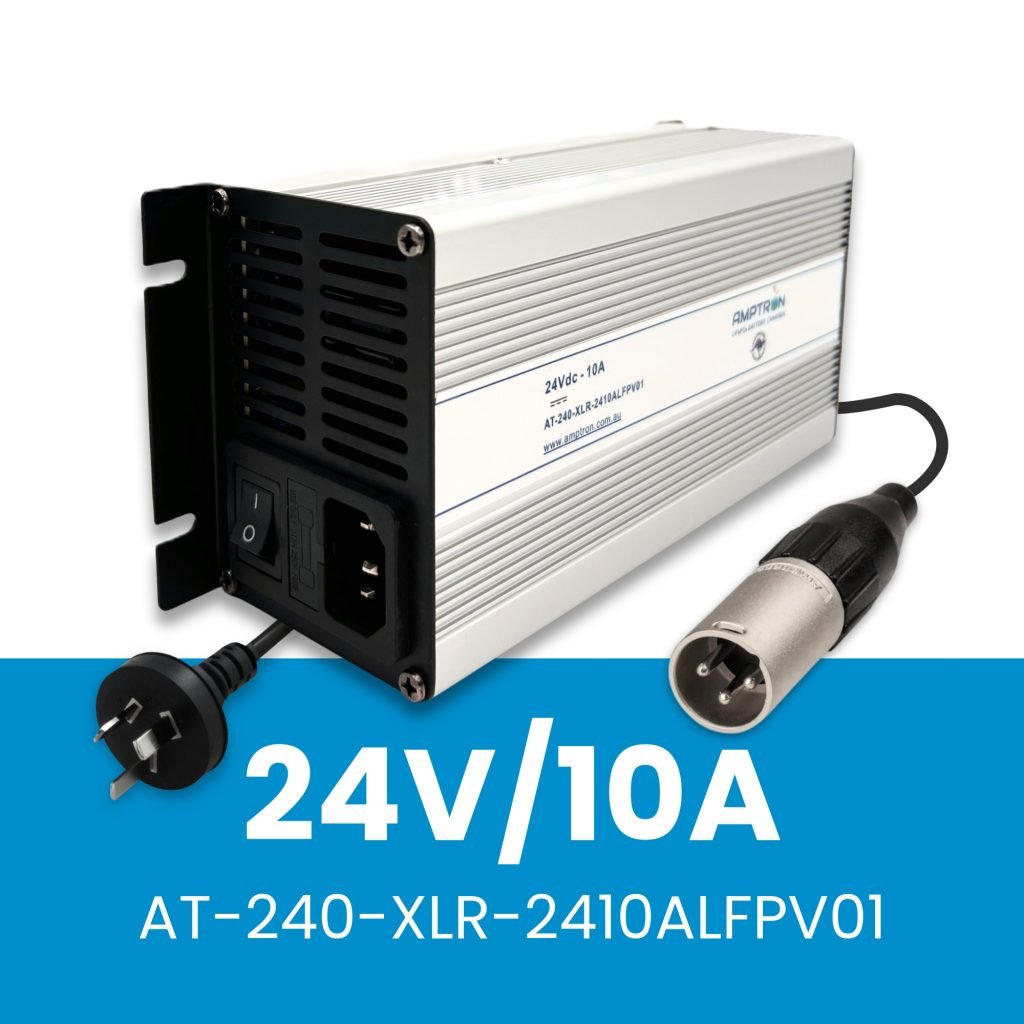

24V 10A AC-DC Lithium LiFePO4 Battery Charger with XLR round Din Plug
The 24V 10A model charger operates from mains AC 200-264V as input, supplying up to 10A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use. This model has a XLR round din style plug for quick connection to your appliance.
Free in-store installation is available at our shops, or you can call us for our competitively priced Roadside and Onsite Service.
Product Description
Detailed information and noted points:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-XLR-2410ALFPV01
|
AC/DC 24V 10A LiFePO4 Battery Charger C/W XLR Plug
|
|
Input Voltage
|
min 200Vac to max 264Vac
|
|
|
Input Power
|
Max 356.3W
|
|
|
Constant charge voltage
|
Vdc min 29.0V to max 29.4V
|
|
|
Constant charge current
|
Min 9.7A to max 10.3A
|
|
|
Charge complete current
|
Vdc min 0.6A to max 1.0A
|
|
|
Ripple voltage
|
250mV
|
|
|
Efficiency
|
85{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
At full load
|
|
Product Dimensions
|
L-170mm x W-90mm x H-63mm
|
|
|
Weight
|
1Kg
|
Charge Curve:
- ✓ Superior vibration and corrosion resistance
