Description
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

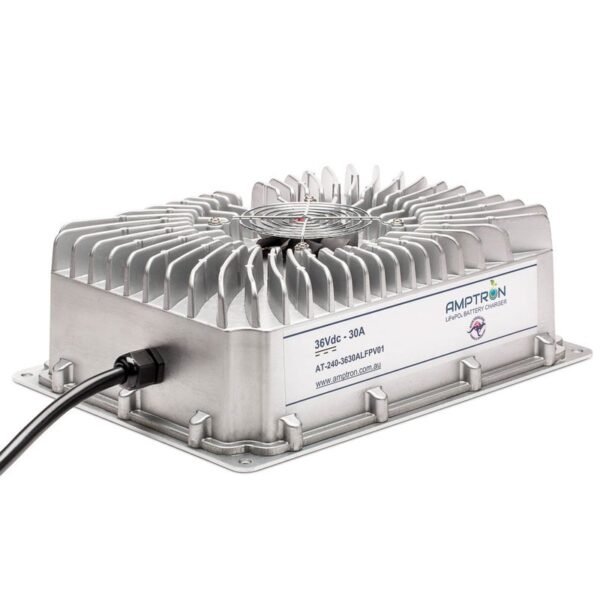

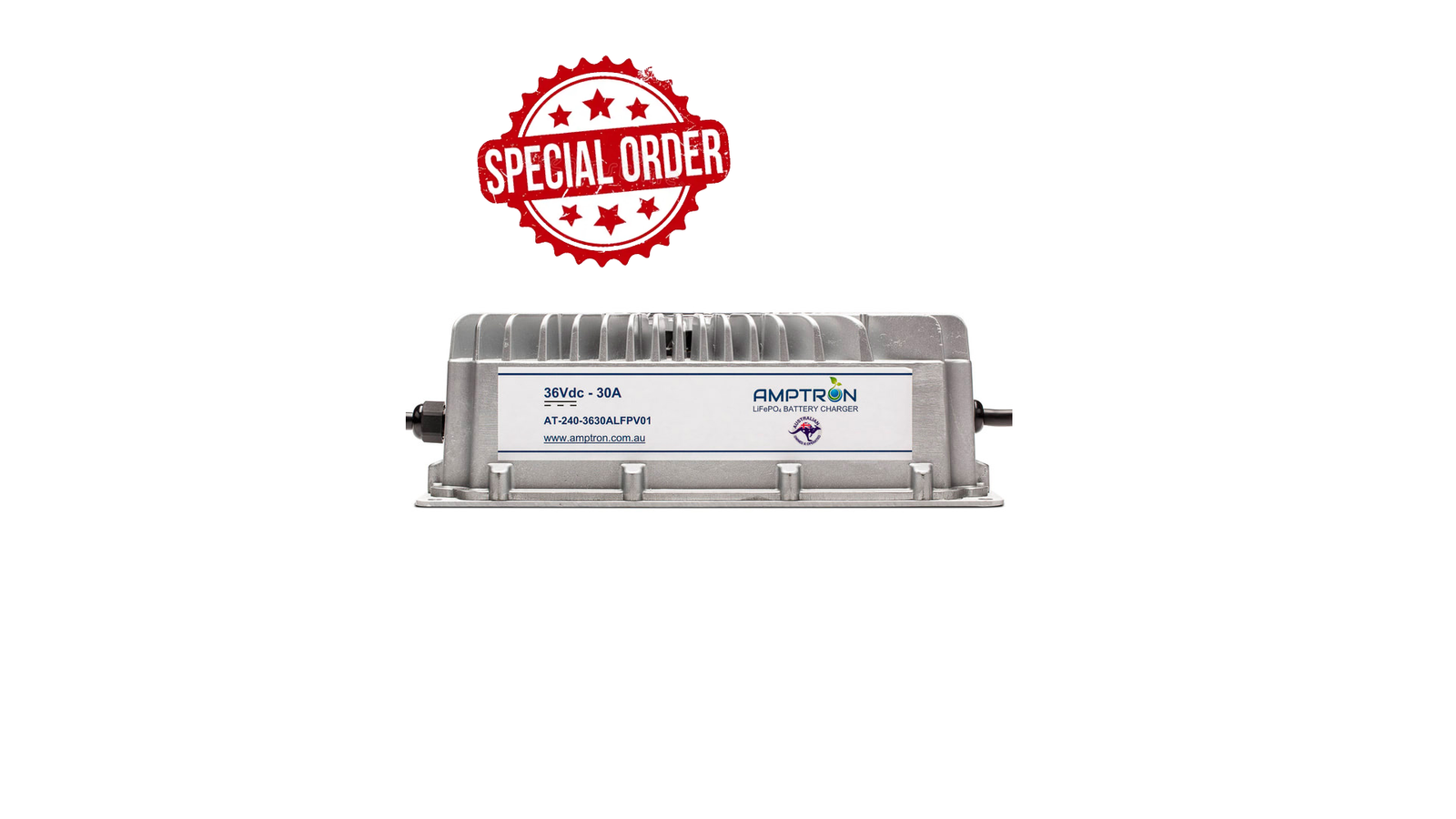

The 36V 30A IP65 model charger operates from mains AC 200-260V as input, supplying up to 30A charging output suitable for nominal 36V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
Technical Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-IP65-3630ALFPV01
|
AC/DC 36V 30A IP65 LiFePO4 Battery Charger
|
|
Input Voltage
|
min 200Vac to max 260Vac
|
|
|
Input Power
|
Max 1609W
|
|
|
Constant charge voltage
|
Vdc min 43.5V to max 44.1V
|
|
|
Constant charge current
|
Min 29A to max 31A
|
|
|
Charge complete current
|
Vdc min 2.2A to max 2.6A
|
8% CC
|
|
Ripple voltage
|
500mV
|
|
|
Efficiency
|
85%
|
At full load
|
|
Product Dimensions
|
L-310mm x W-230mm x H-101mm
|
|
|
Weight
|
8Kg
|
| Weight | 8 kg |
|---|---|
| Dimensions | 44 × 37 × 20 cm |
