Description
Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-SEMIFLEX-MONOSOL-12-170WBV01
|

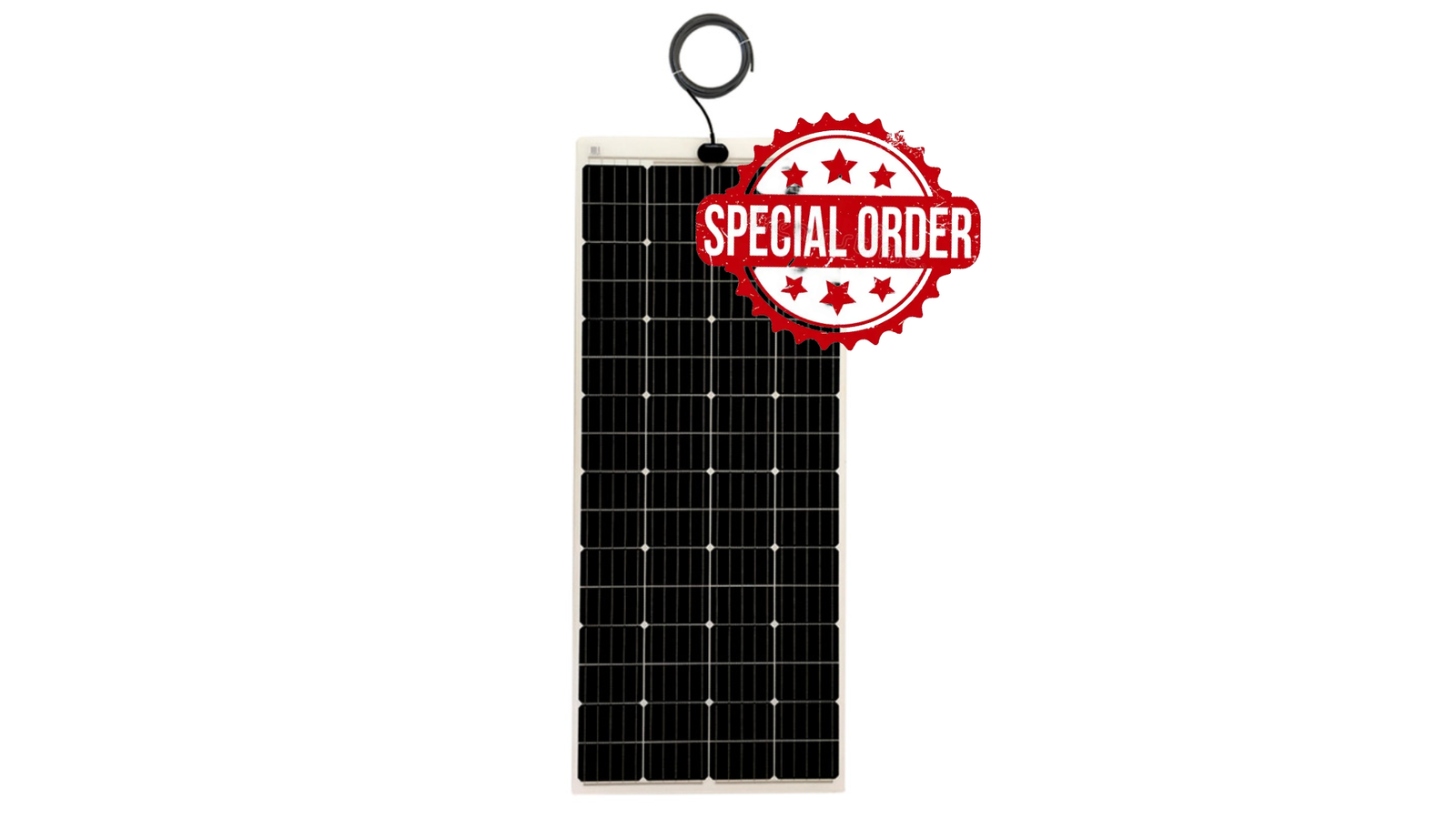

170W 12V Semi-Flexible Mono-crystalline Solar panel
|
|
Maximum power rating
|
Pmax 170 Watts
|
|
|
Solar Panel dimensions
|
L-1723mm x W-530mm x H-3mm
|
|
|
Tolerance on power output
|
+/- 3.0%
|
|
|
Current at max power
|
Imax 9.06 Amps
|
|
|
Voltage at max power
|
Vmax 18.75 Volts
|
|
|
Short circuit current
|
Isc 9.44 Amps
|
|
|
Open circuit voltage
|
Voc 22.14 Volts
|
|
|
No of cells
|
33
|
|
|
Cell Efficiency
|
21.80%
|
|
|
Temperature Range
|
-40℃ to +80℃
|
|
|
Weight
|
4.50kg
|
The Semi-Flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble-free performance over the module life.
• High efficiency Monocrystalline Cells.
• Ultra-thin & lightweight.
• Outstanding electrical performance in higher temperatures and low irradiation.
• Robust moisture ingress protection.
• Rigid, waterproof junction Box.
• High performance Fluro Ethylene top film.
