Description

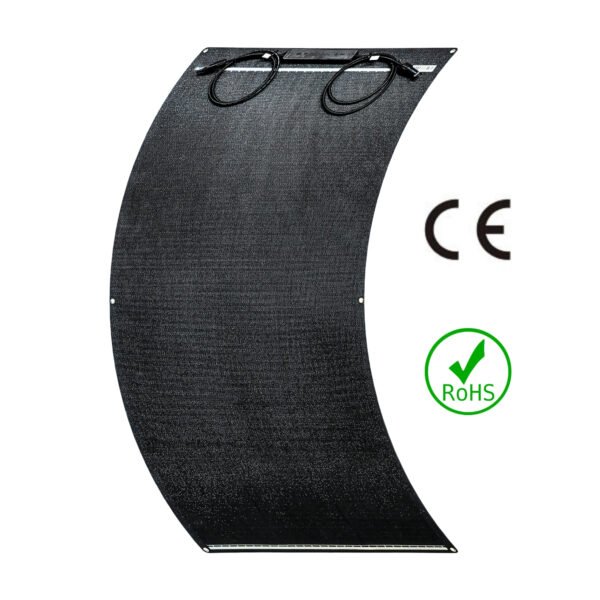

This new Semi-Flexible solar panel range is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble free performance over the module life.

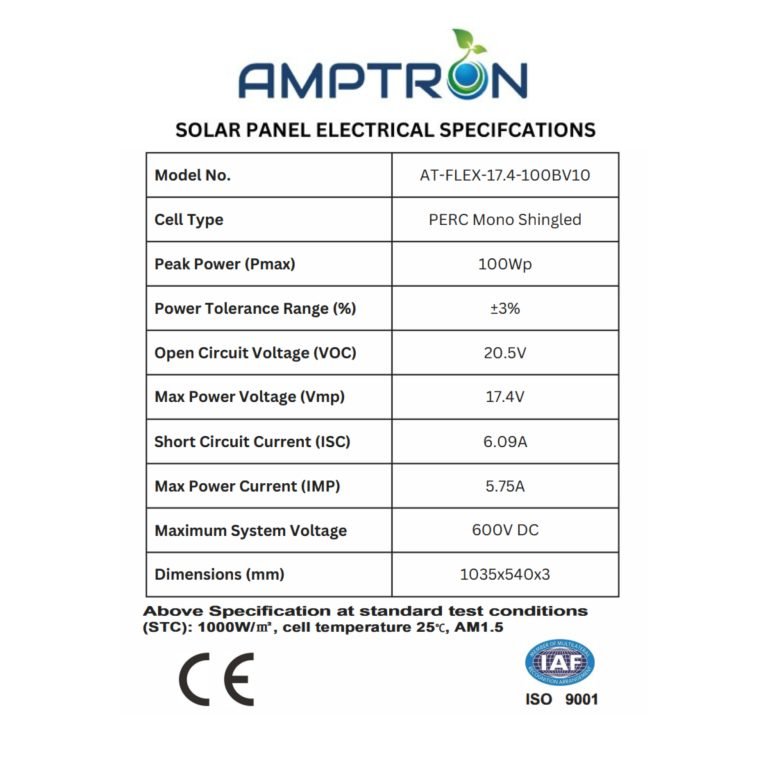

SPECIFICATIONS:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-FLEX-17.4-100BV10
|
100W Narrow 12V Semi-Flexible Perc Shingled Solar Panels ETFE Coating
|
|
Maximum power rating
|
Pmax 100 watts
|
|
|

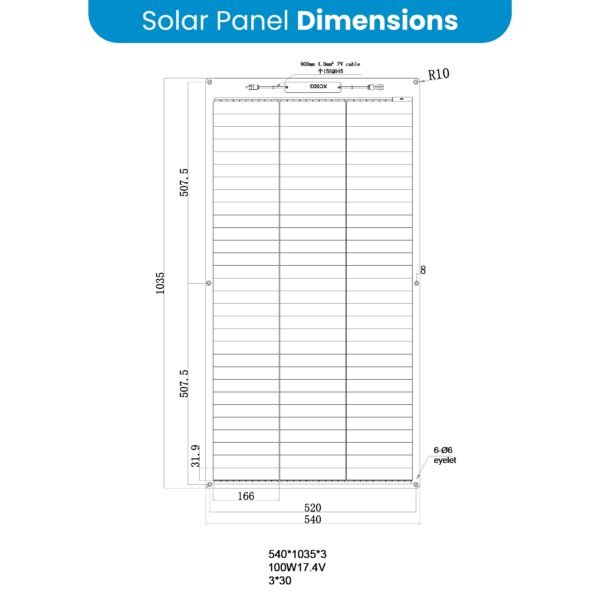

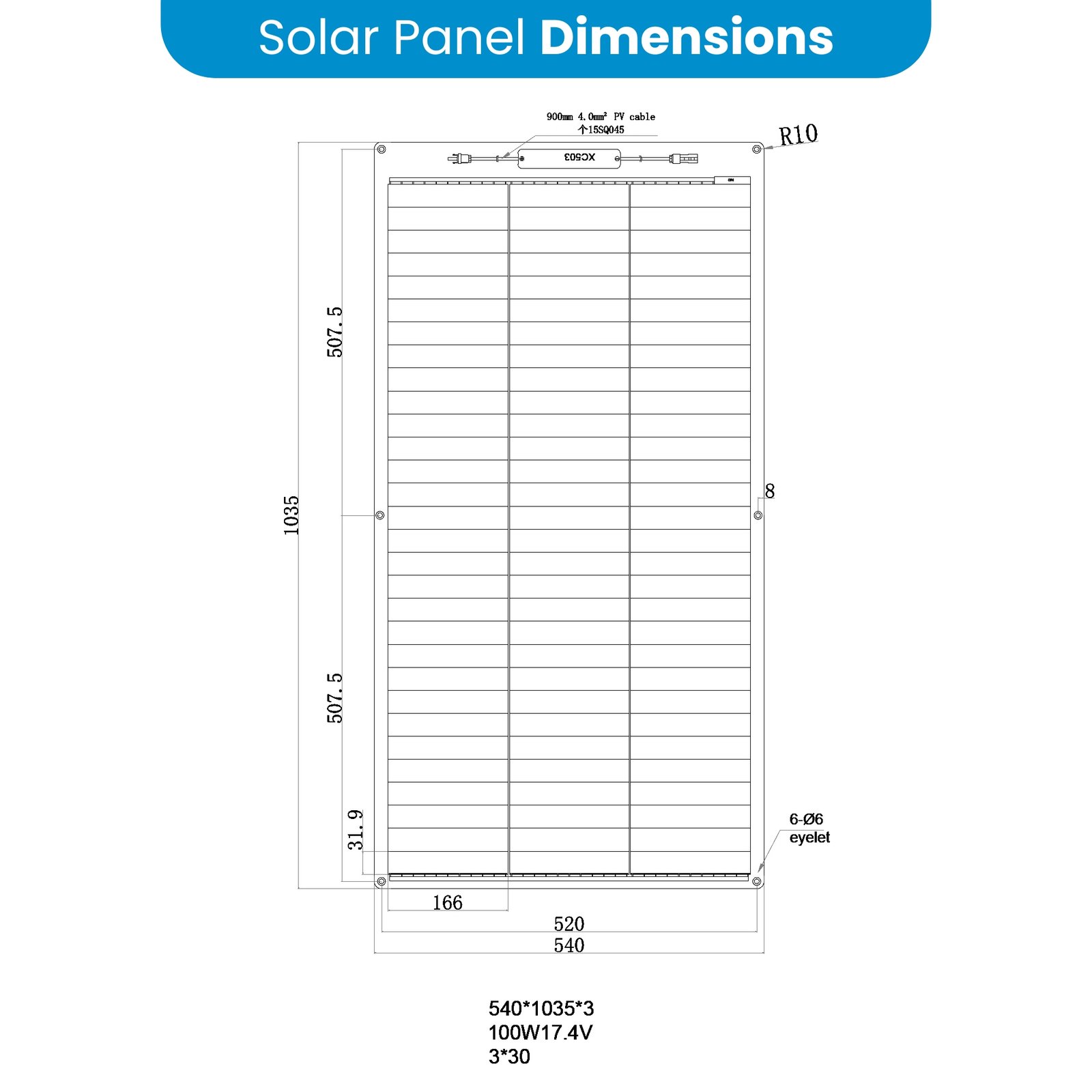

Solar Panel dimensions
|
L-1035mm x W-540mm x H-3mm
|
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power
|
Imax 5.75 Amps
|
|
|
Voltage at max power
|
Vmax 17.4 Volts
|
|
|
Short circuit current
|
Isc 6.09 Amps
|
|
|
Open circuit voltage
|
Voc 20.5 Volts
|
|
|
Max System Voltage
|
600 Volts
|
|
|
No of cells
|
90
|
|
|
Cell Efficiency
|
22%
|
|
|
Temperature Range
|
-40℃ to +80℃
|
|
|
Weight
|
2.2kg
|

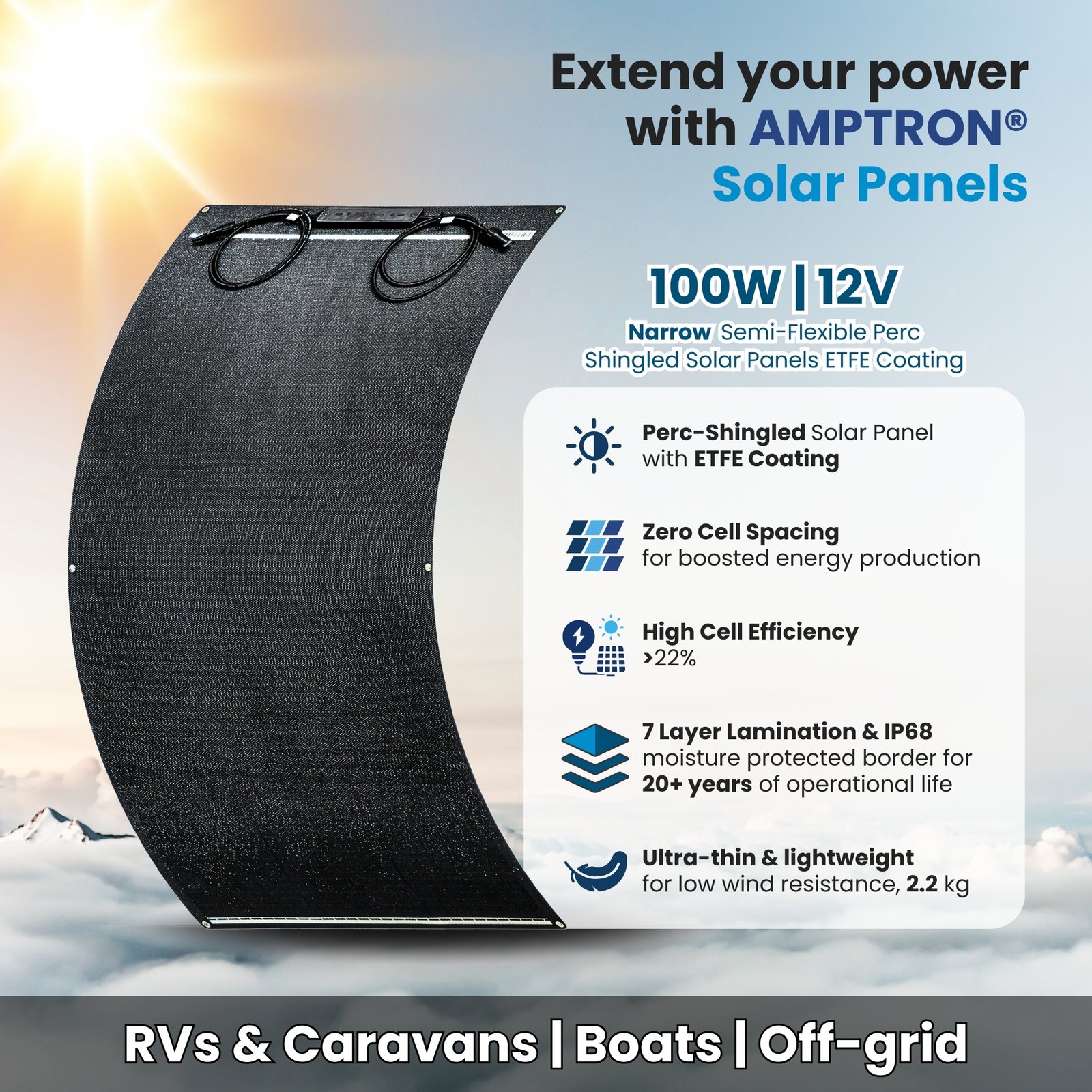

Semi-Flexi Solar Panel Features:

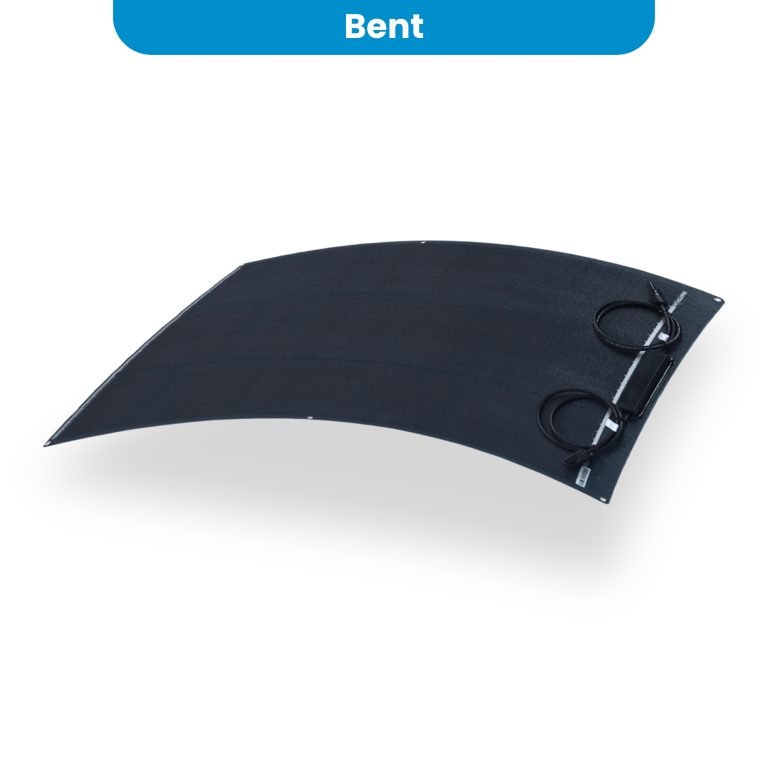

The Semi-Flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble-free performance over the module life.
The solar cells use PERC Shingle-cell technology to achieve zero cell spacing, which effectively increases the light-receiving area of the module. Other features:
- Ultra-thin & lightweight.
- Outstanding electrical performance in higher temperatures and low irradiation.
- Robust moisture ingress protection
- Rigid, waterproof junction Box.
- The Solar panels also include an industrial grade ETFE coating for long life and
durability
