Description

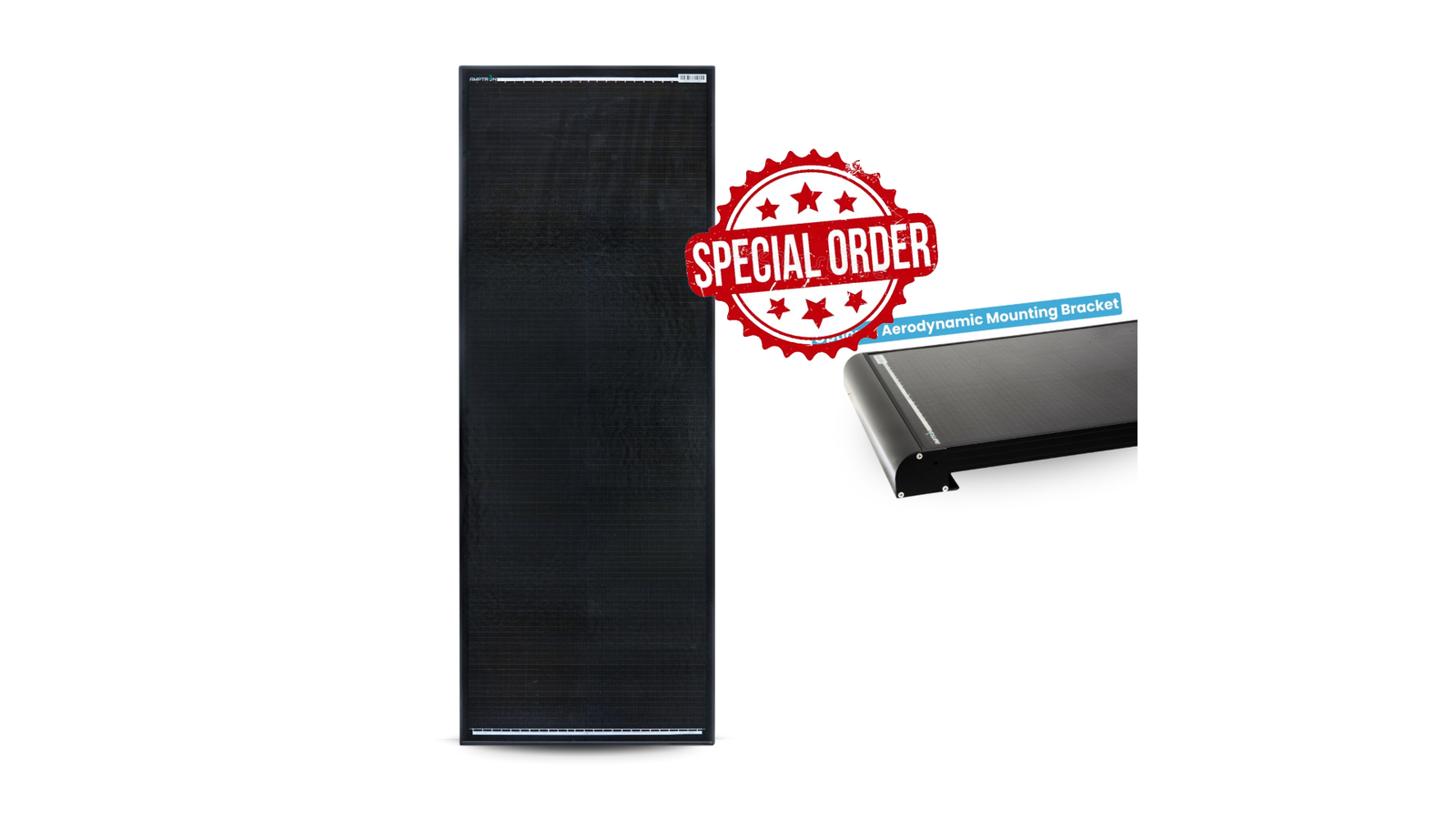

Highly Efficient Photovoltaic Power Source For RVs, Campers, Cabins, Boats and Home Backup Power Systems. Particularly useful for narrow spaces on vehicles, motorhomes or caravans where there is not much roof real-estate to work with. Our 100W Slimline panel is Ideal for charging 12V battery systems, or connect in series for high voltages .With its shingled cell design, our 100W solar panels have excellent shading tolerance, and are rugged and durable with great vibration and shock resistance. Easily add an aerodynamic mounting set for hassle free Caravan / Motorhome mounting and increased aerodynamic efficiency.
Including mounting Brackets: Yes
Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-GLASS-22.8-100BV10
|
100W 12V Glass Perc Shingled Solar Panel 45mm Slimline width 460mm
|
|
Maximum power rating
|
Pmax 100 Watt
|
|
|
Solar Panel dimensions
|
L-1210mm x W-460mm x H-35mm (without Aerodynamic brackets)
L-1255mm x W-460mm x H-35mm (with Aerodynamic brackets) |
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power
|
Imax 4.39 Amps
|
|
|
Voltage at max power
|
Vmax 22.8 Volts
|
|
|
Short circuit current
|
Isc 4.65 Amps
|
|
|
Open circuit voltage
|
Voc 26.9 Volts
|
|
|
No of cells
|
80 (2 x 40)
|
|
|
Cell Efficiency
|
22.0%
|
|
|
Maximum system voltage
|
1000V DC(IEC)
|
|
|
Junction Box
|
with 1.5sqmm 2 core cable MC4
|
|
|
Weight
|
6.02kg
|
Additional Information:
The robust manufacturing process and the choice of reliable specifications of raw materials ensure reliability and trouble-free operation over the product life.
Slimline profile not widely available but perfect for tight spaces
The Shingled design of the 210mm PERC Mono solar cells do not require a bus bar across the top of the cells, resulting in improved power conversion efficiency of the module. Shingled solar panels also have significantly reduced losses caused by shading. Shingled panels are also more resistant to failures caused by external forces and thermal expansion impacting the modules.
Additionally, the panels have limited visible circuitry resulting in a clean and simple curb appeal.
