Description

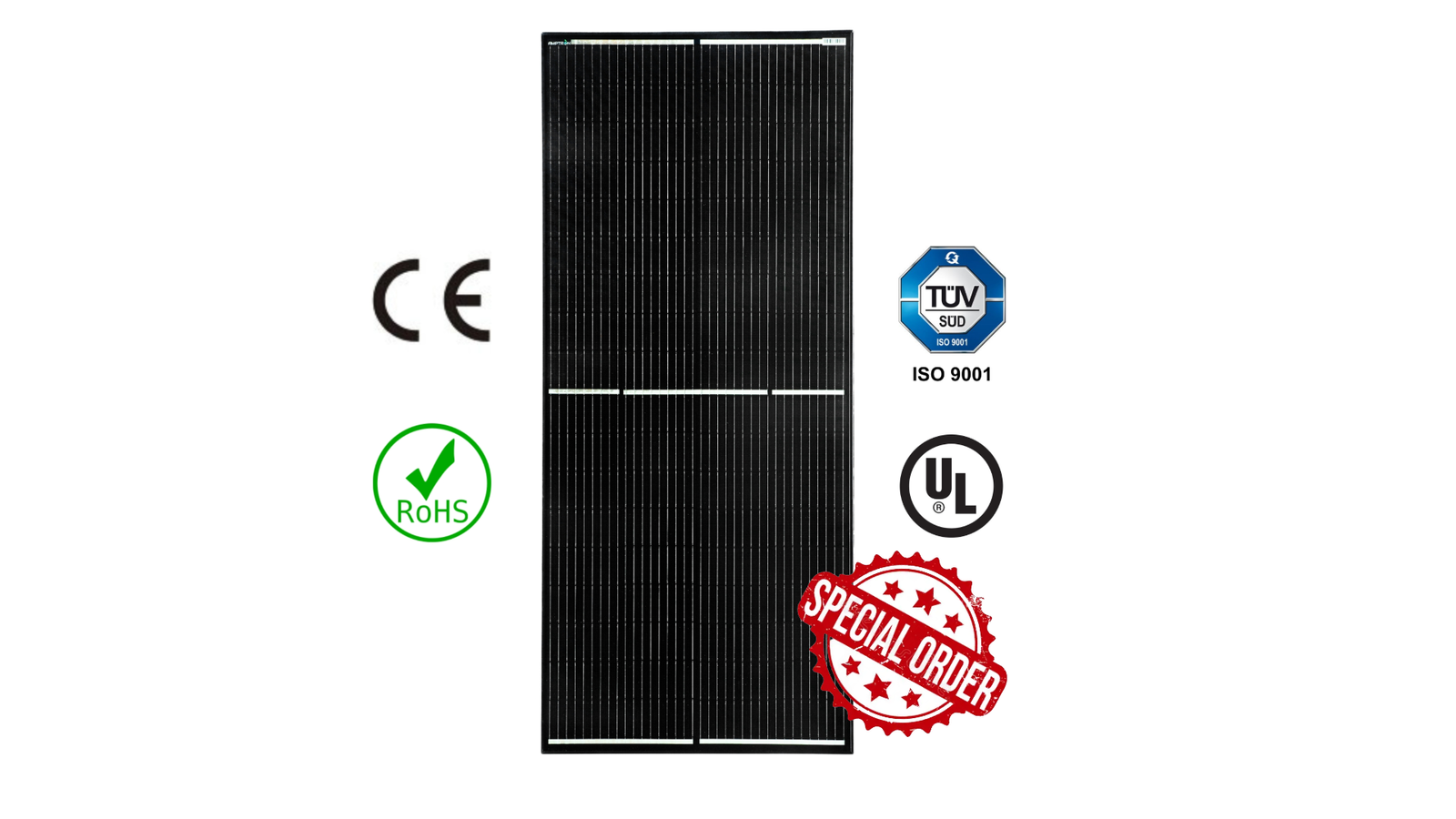

Maximise your solar output with our advanced 200W monocrystalline solar panel, engineered with half-cut cell technology and a split-panel layout, it delivers superior performance even in partial shade—one side can be fully shaded while the other continues generating power at full capacity. This innovative design enhances energy reliability in variable conditions, making it perfect for RV solar systems, caravan roofs, marine setups, cabins, and home backup power.

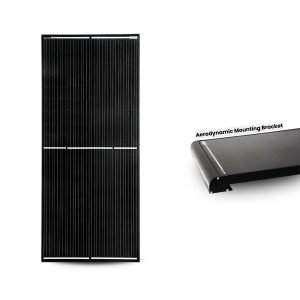

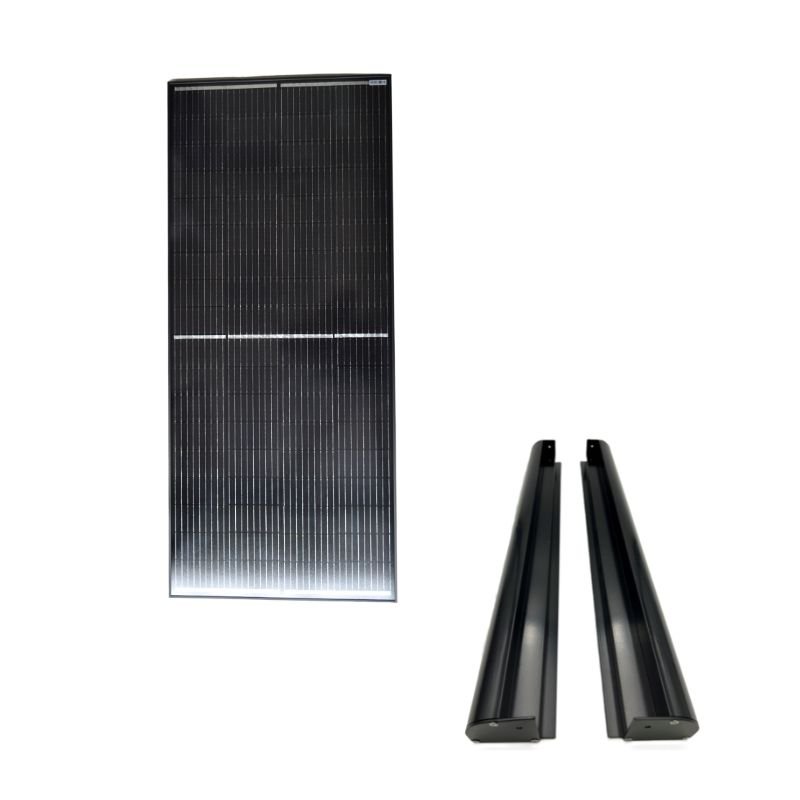

Optional aerodynamic mounting kit available for easy installation & efficiency.
SPECIFICATIONS:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-GLASS-20.5-200AV10
|
200W 12V Glass Perc Half Mono-crystalline Solar panel, 35mm Black Aluminium Framed Panel
|
|
Maximum power rating
|
Pmax 200 Watt
|
|
|

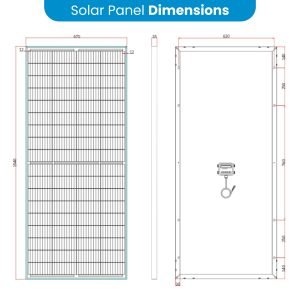

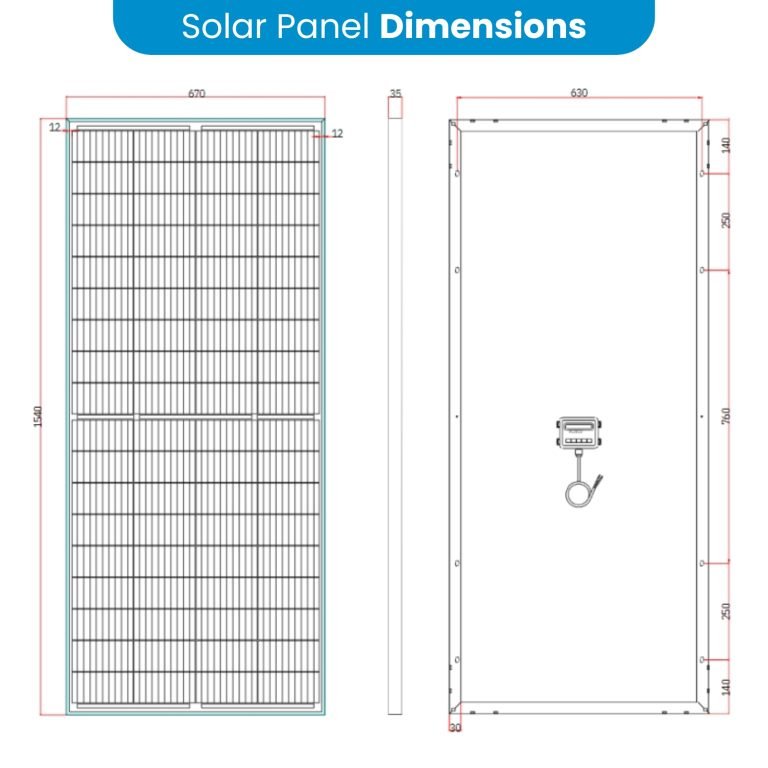

Solar Panel dimensions
|
L-1540mm x W-670mm x H-35mm (without Aerodynamic brackets)
L-1610mm x W-670mm x H-35mm (with Aerodynamic brackets) |
|
|
Tolerance on power output
|
+/- 3.0 %
|
|
|
Current at max power
|
Imax 9.76Amps
|
|
|
Voltage at max power
|
Vmax 20.5 Volts
|
|
|
Short circuit current
|
Isc 10.24Amps
|
|
|
Open circuit voltage
|
Voc 24.0 Volts
|
|
|
No of cells
|
72(4*9*2)
|
|
|
Cell Efficiency
|
22.70%
|
|
|
Maximum system voltage
|
1000V DC(IEC)
|
|
|

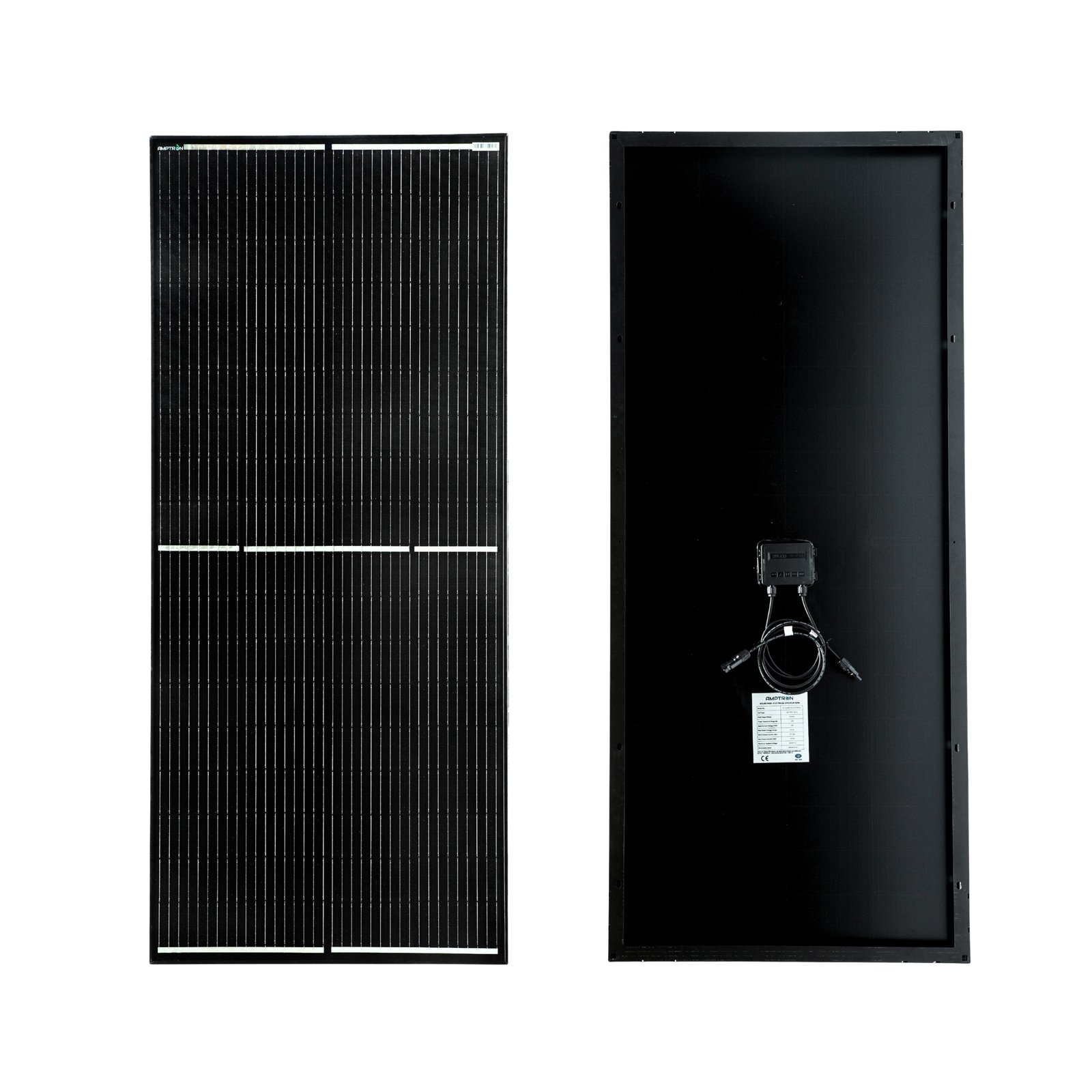

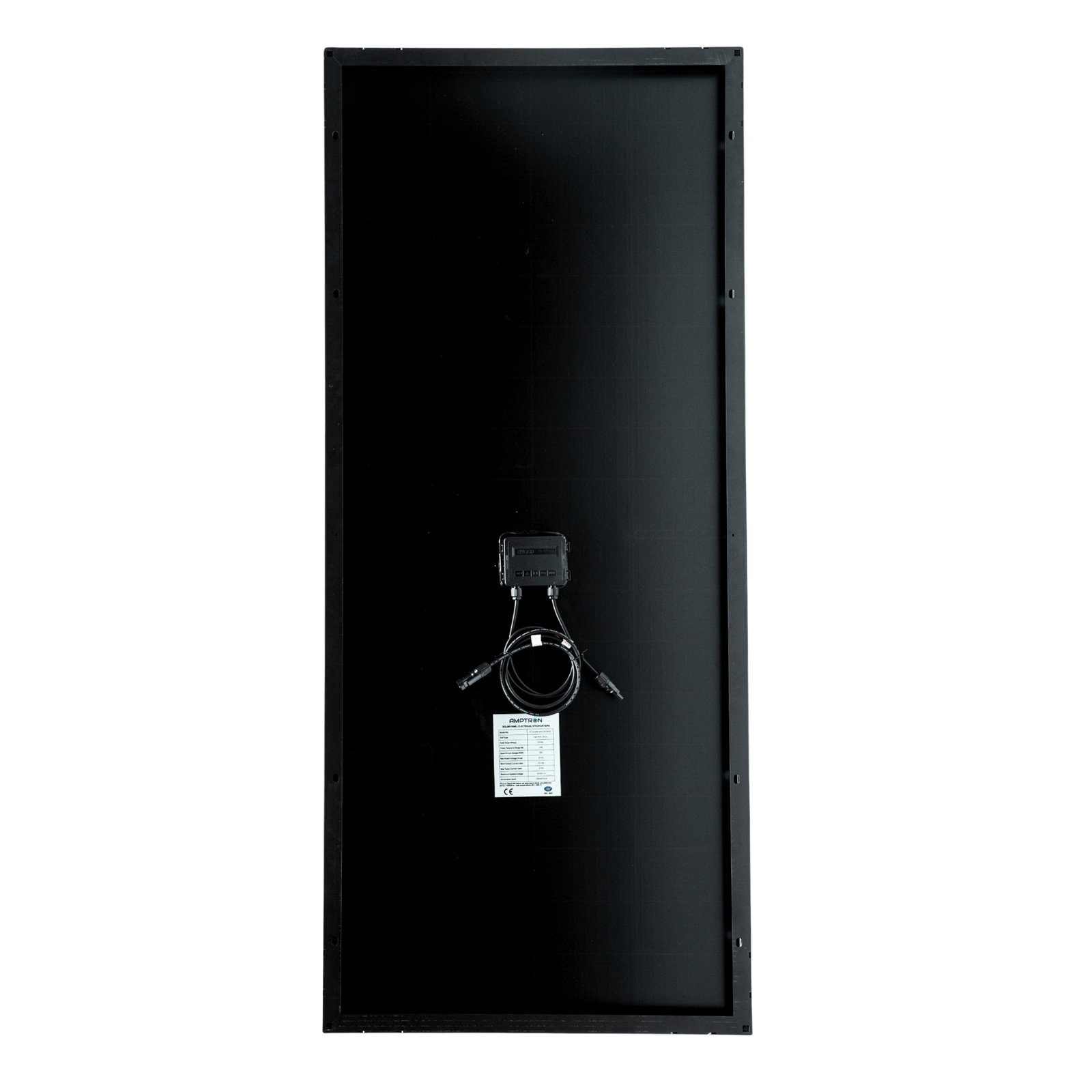

Junction Box
|
with 4sqmm 2 core cable + MC4 compatible
|
|
|
Weight
|
9.3kg
|
WARRANTY:
Please click and read Solar panel warranty policy
