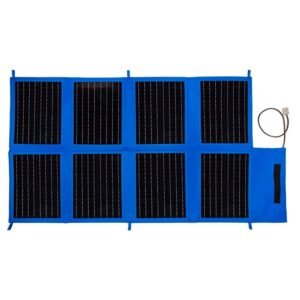

The lightweight compact foldable solar blanket is a convenient portable solar electric generator to supply energy for your charging needs. The blanket utilises quality high-efficiency cells and quality fabrics. The versatile weatherproof design provides multiple mounting and connection options.

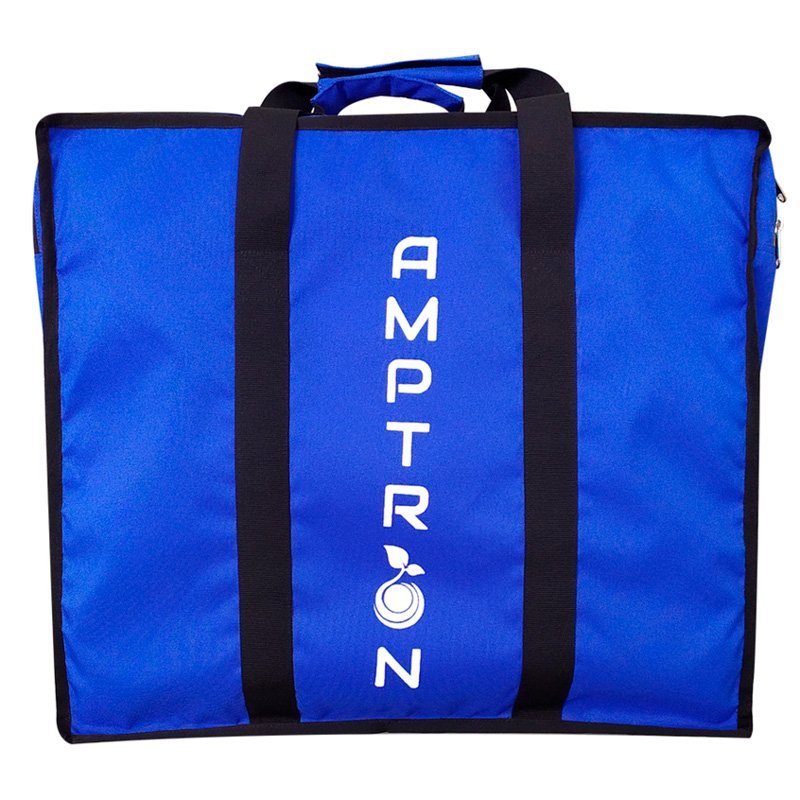

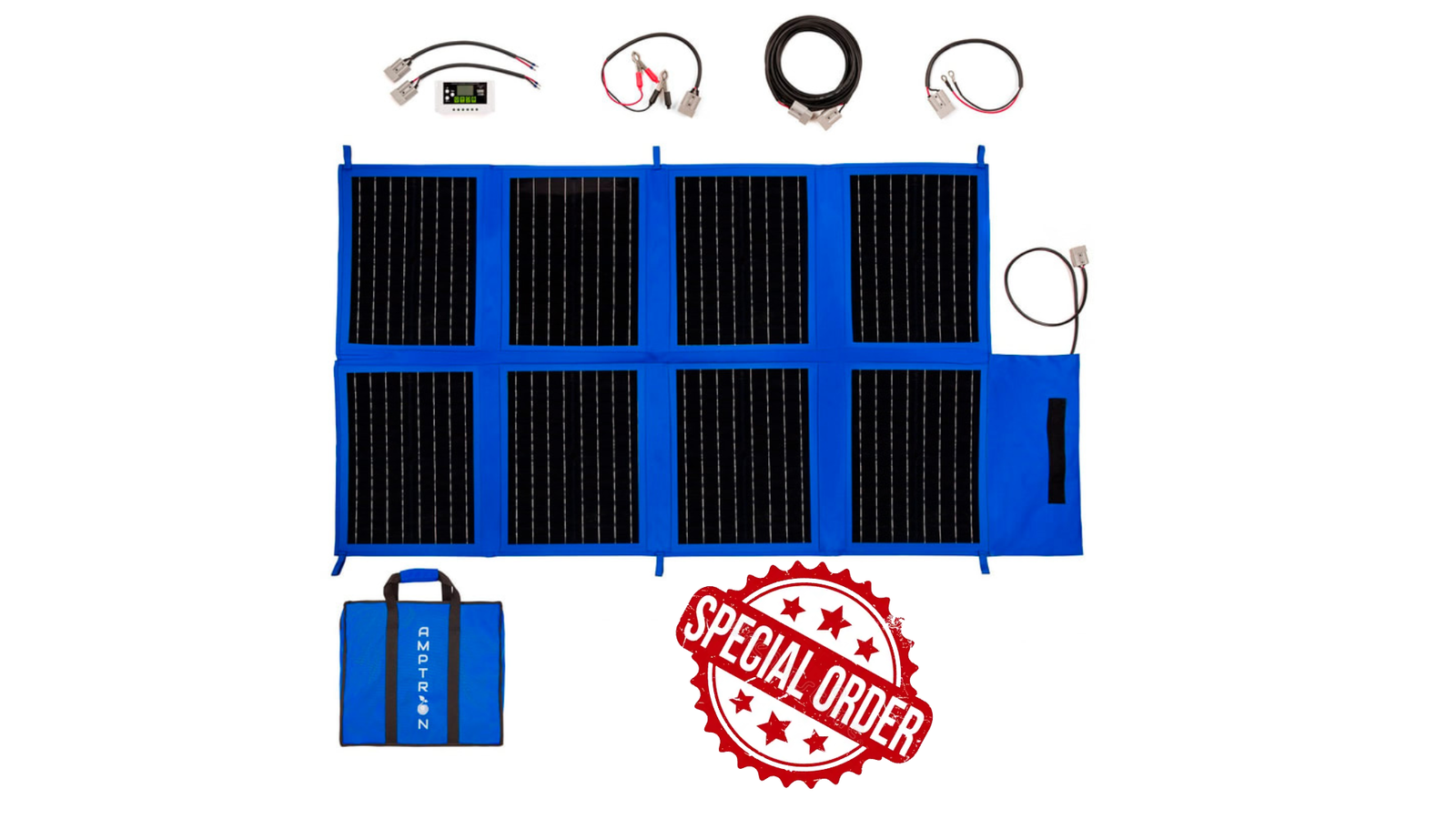

Kit includes 30Amp PWM solar controller – 5m Extension Cable – 0.6m long Cable with Anderson connectors and Alligator Clips – Foam padded heavy duty carry bag.
Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-SOLBLANK-12-200-AV02
|
200W 12V Mono-Crystalline Solar Blanket K​it​ ​
|
|
Maximum power rating
|
Pmax 200 Watts (25w x 8)
|
|
|
Solar Blanket dimensions
|
L-1855mm x W-1000mm x H-85mm
|
|
|
Tolerance on power output
|
+/- 6.0%
|
|
|
Current at max power
|
Imax 11.0 Amps
|
|
|
Voltage at max power
|
Vmax 18.17 Volts
|
|
|
Short circuit current
|
Isc 11.68 Amps
|
|
|
Open circuit voltage
|
Voc 21.44 Volts
|
|
|
No of cells
|
32 x 8
|
|
|
Temperature Coefficients
|
Isc +0.047%/0C, Voc -0.323%/0C, FF -0.117%/0C
|
|
|
STC Intensity 1000W/M2
|
Module Temperature 250C
|
Spectrum AM=1.5
|
|
Weight
|
6.0kg
|
Please download and read 200W Solar Blanket_AT-SOLBLANK-18-200-AV02 user manual
