Description
The AMPTRON® PowerUp 3600 is Australia’s safest portable power station that comes with the built-in RCBO with seamless expansion up to 12kWh.
- In-built RCBO for overload & short circuit protection
- Expandable upto 12,288 Wh Output capacity (12kWh).
- Single battery size is 3072Wh (3kWh) OR 256 Ah (12V equivalent)
- DC 12V 50A Output, 30A DC Input – with Anderson Connectors

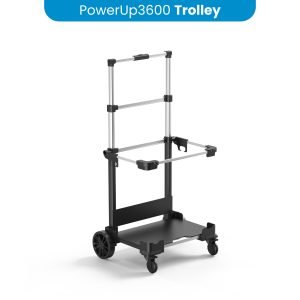

- Optional carrying trolley for easy handling & movement

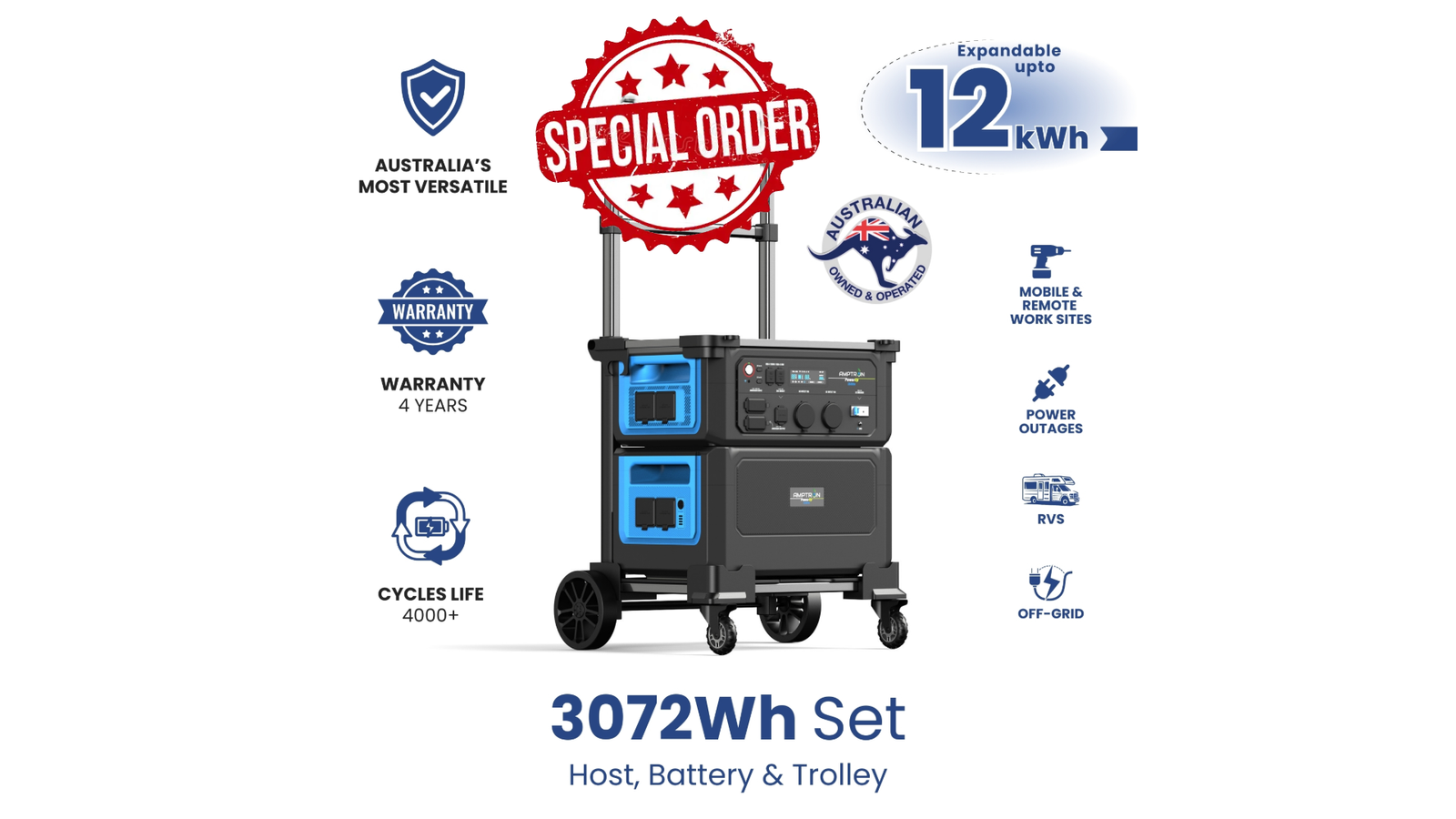

- This pack includes the Host Unit, Battery Pack (3072Wh capacity) & Trolley
Product Description:
Amptron® PowerUp 3600 is a portable AC and DC power station that is suitable for replacing a 5KVA diesel/petrol generator. The unit can be scaled to over 12kWh capacity with up to 4 batteries and it has class leading AC and DC outputs with fast charging options from AC and DC (solar or 12V sources) supporting a wide range of applications from recreational use, to home energy storage & industrial applications.
The PowerUp 3600 sets the standard for safety with class leading AC protection and the highest safety certifications in the industry, offering multiple fast charging options from both AC and DC (solar and vehicle-based) power sources. Its durable design, featuring battery modules with a long cycle life, ensures reliable performance for all your power needs.
The unit has been designed to be highly manoeuvrable and portable, with a stackable design (individual component weights can be easily handled by a single person) and optional carrying trolley. AC safety is market leading with an inbuilt RCBO providing circuit and electrocution protection. The 15A AC outlet will allow powering of higher-draw equipment, and can also be used to supply AC power for applications that have a 15A AC inlet power connector, such as mobile site offices and caravans.
What’s Unique about this Power Pack & Why Should You Get It
🛡️ Australia’s Safest Power Station

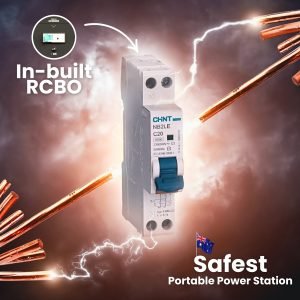

PowerUp 3600 comes with a market-leading safety feature: an inbuilt RCBO for protection against direct load, overcurrent, and short-circuit. Live freely because safety matters.
⚡ Fast Charging – Via AC & DC Both
It features a wide-range DC input (11.5–100V, up to 30A) compatible with solar panels and vehicle-based charging systems via an Anderson SB50 Red connector, allowing flexible off-grid recharging. For even faster turnaround, the unit supports AC charging up to 1800W, enabling rapid top-ups from a standard wall outlet — ideal for users who need reliable power in a hurry.
🔌 PowerUp Anything You Want, Anywhere*
Being one of the most powerful portable power stations in the market with certification and compliances, PowerUp 3600 can be used professionally at mobile and remote working sites powering heavy duty tools off the grid. It powers up 99% of the mobile applications*.
Consumption and Backup Time
Appliance/Device | Power (W) | Backup Time (hours) |
---|---|---|
Coffee Maker | 800 | 3.8 |
Electrical Grill | 1560 | 2.0 |
Microwave | 700 | 4.4 (2 min heating > 120 times) |
Kettle | 2200 | 1.4 |
Portable Fridge | 100 | 30.7 |
Toaster | 800 | 3.8 |
TV | 110 | 27.9 |
Projector | 312 | 9.8 |
Oven | 1650 | 1.9 |
Water Heater | 800 | 3.8 |
Air Heater | 2200 | 1.4 |
Clothes Dryer | 500 | 6.1 |
Dishwasher | 1800 | 1.7 |
Security Camera | 10 | 307.2 (12+ days) |
Floor Lamp | 40 | 76.8 |
Refrigerator | 120 | 25.6 |
Remote Work Setup (Laptop, Mobile & Screen) | 200 | 15.4 |
Portable or Window Aircon | 900 | 3.4 |
Heavy Duty Electric Drill | 1500 | 2.0 |
Angle Grinder | 2000 | 1.5 |
Chainsaw | 2200 | 1.4 |
Camera | 60 | 51.2 |
Laptop Charging | 100 | 30.7 |
Drone | 200 | 15.4 |
Speaker | 250 | 12.3 |
To calculate estimated backup time with PowerUp 3600, divide the battery capacity (3072Wh) by your device’s power consumption (in watts).
Example:
If your device, like EcoFlow’s portable air conditioner, uses 900W, the calculation is:
3072 ÷ 900 = 3.41 hours
To convert the decimal into minutes, multiply the fractional part by 60:
0.41 × 60 = ~25 minutes
So, the total backup time would be approximately 3 hours and 25 minutes
Use this Calculation Sheet to get number of hours:
PowerUp Set Backup Hours.xlsx

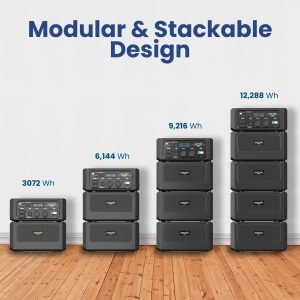

🔄 Modular & Stackable Design

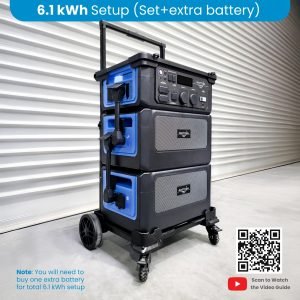

It is designed to carry the 9 kWh system by one person with the folding trolley (The host unit + 2 x Batteries). This makes it easier for transportation and highly suitable for any mobility power applications.
⏳ 4000+ Cycles Life
Engineered with Grade-A LiFePO4 battery rated to 4000 Cycles (51.2V nominal) for years of reliable portable power on the go!
Versatile Power for Every Scenario – Use Cases for PowerUp 3600
The AMPTRON® PowerUp 3600 is designed to be the ultimate all-in-one portable power solution — built for professionals, adventurers, and homeowners alike. Whether you’re managing a mobile worksite, living off the grid, or preparing for unexpected outages, the PowerUp 3600 offers reliable, scalable energy on demand. With its class-leading 3600W (5000W peak) AC output, modular 12kWh expandability, and market-leading safety features, it’s powerful enough to run industrial tools and sensitive enough for your electronics — all while remaining highly portable thanks to its stackable design and optional trolley.
No matter the environment, PowerUp 3600 keeps you connected, productive, and powered up.
Mobile & Remote Working Sites
Fair Work compliant, Built for Australian job sites.
Unlike other models, PowerUp 3600 includes an integrated AC RCBO breaker compliant with Australian standards, and it is one of the only portable power stations approved for use on formal worksites and public events under Fair Work Commission guidelines. Safely run drills, grinders, and welders on remote job sites — no noisy generator needed. Its modular, trolley-based design ensures easy one-person handling and deployment wherever work takes you.
Home Backup
When the grid goes down, PowerUp 3600 keeps your essentials running. PowerUp 3600 seamlessly supports essential home appliances like fridges, TVs, internet routers, and even air conditioners during outages. Its RCBO safety system ensures safe indoor use without any risk of overload or electrical faults.
Independent Power System
With solar charging, modular expansion up to 12kWh, and long-lasting LiFePO4 batteries, PowerUp 3600 is the heart of a reliable, self-sufficient power setup. Ideal for tiny homes or cabins with no grid connection.
Off-grid Living
Designed for sustainable living, PowerUp 3600 offers long-lasting 4000+ cycle LiFePO4 batteries, fast solar charging, and quiet operation. Made for Australian weather conditions, Power your lighting, refrigeration, tools, and electronics — all with zero emissions.
Power Outages – Ready When the Grid Isn’t
More than 300,000 homes were left in the dark when Cyclone Alfred hit south-east Queensland and northern NSW. In outrageous weather like this, the lights can go out fast without warning.
Having the PowerUp 3600 means you’re never left in the dark ever again. With rapid charging, modular expansion of up to 12kWh, and built-in RCBO protection for safe indoor use — It’s peace of mind when the power’s out to live normally even in situations like Alfred.
Film Making and Photography
Silent, portable, and reliable power for your location filmmaking and wedding shoots. Power up your cameras, lighting, speakers, drones, monitors and laptops with ease. Reliable dependable source for uninterrupted shooting, anywhere for Australian photographers and filmmakers.
Mobile Businesses, Fully Charged
For food vans, pop-up stalls or tradie trailers, this unit delivers commercial-grade power with 15A output and fast recharge. Perfect for multi-day events, festivals, or even indoor mall activations. Stay plugged in from powering everything from lights and EFTPOS systems to cooking appliances and sound setups.
Marine & Boating Power on Demand
Boat ready when you are out on the water. A smart & stackable power solution that delivers clean AC and DC output for marine electronics, lights, and refrigeration — without relying on an onboard generator.
Outdoor Events & Festivals
Power sound systems, lighting, food stalls, and equipment with up to 3600W continuous power. Its silent, emission-free operation is ideal for public spaces and eco-conscious events.
Outdoor BBQs & Gatherings
Take the backyard to the bush with power for your BBQ, music, lights, and eskies. Easy to move, quick to charge — PowerUp 3600 is built for weekends away and backyard legends alike.
RVs & Camping
Hook straight into your van’s 15A inlet and keep all your appliances running off-grid. Whether you’re crossing the Nullarbor or camped by the coast, PowerUp 3600 keeps you powered the whole way.
Pool Heating & Garden Power
Power pool pumps, garden lighting, or outdoor tools where extension cords can’t reach. Its portable design brings reliable power to every corner of your property.
Remote Field Clinics
From rural outreach to emergency relief, PowerUp 3600 supports fridges, lighting, and medical devices with certified safe power. Built for reliability in the most demanding conditions.
Remote Agriculture
Run pumps, fencing, and monitoring gear where the grid doesn’t go. With solar compatibility and stackable batteries, it’s the off-grid power solution Aussie farmers can trust.
Any Other Remote Power Needs
Whether you’re off-grid, on the road, or responding to a crisis — PowerUp 3600 delivers powerful, portable energy where the grid can’t reach. If you can carry it, you can power it.
*Note that you will require extra batteries according to your usage. Calculate your usage and then choose number of batteries.
Multiple Ways to Charge Your PowerUp 3600
- Wall outlet (AC): 80% in 60 mins, 0–100% in 1h 45m
- Solar panels: 200W = 17h, 400W = 8h, 800W = 4h (in good sun)
- 12V Car (Anderson): Up to 30A, ~7.5h full charge
- Dual AC + Solar: Prioritises solar then AC; min charge time = 1.5h
Applications
Use Case | Advantage | Description |
---|---|---|
🛠️ Mobile & Remote Working Sites | Fair Work compliant + site-ready | The only unit in its class with an Australian standard RCBO breaker, approved for use on formal worksites and public events. Run drills, grinders, and welders with safe, silent 3600W output — no generator needed. Modular design with trolley allows single-person transport. |
🏠 Home Backup | Safe, reliable backup for essentials | Keeps fridges, TVs, internet, and aircon running during outages with built-in RCBO safety for indoor use. |
🔋 Independent Power System | Scalable off-grid solar power | Modular 12kWh expansion with solar and long-life batteries ideal for tiny homes or cabins without grid. |
🌿 Off-grid Living | Long-lasting, quiet, emission-free | Powers lighting, refrigeration, tools with 4000+ cycle batteries designed for harsh Aussie conditions. |
⚡ Power Outages | Fast, safe backup during blackouts | Keeps essentials running during outages like Cyclone Alfred with fast recharge and indoor safety features. |
🎥 Filmmaking & Photography | Silent, portable reliable power | Powers cameras, lighting, drones, and laptops for uninterrupted shoots anywhere in Australia. |
🚐 Mobile Businesses | Commercial-grade, fast recharge | Food vans, stalls, and trailers powered reliably with 15A output wherever your business goes. |
⚓ Marine & Boating | Clean, generator-free marine power | Supplies AC/DC power for marine electronics, lights, and fridges quietly and safely on the water. |
🎪 Outdoor Events & Festivals | Silent, emission-free event power | Powers stalls, sound, lighting, and payment systems for eco-conscious events and markets. |
🍖 Outdoor BBQs & Gatherings | Portable power for outdoor fun | Powers BBQs, music, lights, and eskies easily for weekends away or backyard gatherings. |
🚎 RVs & Caravans | Off-grid van power via 15A inlet | Keeps appliances running on the road or at camp with reliable, portable power for extended trips. |
🏕️ Camping | Quiet, rugged, portable power | Clean and fuss-free power for lighting, cooking, and electronics in the bush without noisy generators. |
🌼 Pool Heating & Garden Power | Portable outdoor power solution | Powers pumps, garden lights, and tools anywhere without cords dragging across your yard. |
🏥 Remote Field Clinics | Certified safe, reliable power | Supports fridges, lighting, and medical devices in rural or emergency setups with safe, dependable power. |
🚜 Remote Agriculture | Off-grid farm power solution | Powers pumps, fences, and monitoring gear with solar compatibility and stackable batteries. |
🌏 Any Other Remote Power Needs | Powerful, portable, versatile | From off-grid living to emergencies, PowerUp 3600 delivers energy wherever the grid can’t reach. |
Specifications:
Item
|
Specification
|
|

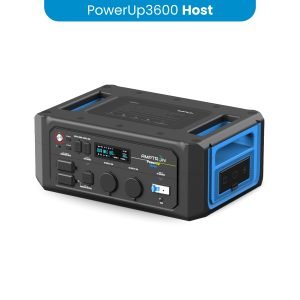

HOST UNIT
|
||
MODEL /SKU
|
AT-PORT-POWERUP3600-SET
|
|
MATERIAL
|
ABS + Polycarbonate
|
|

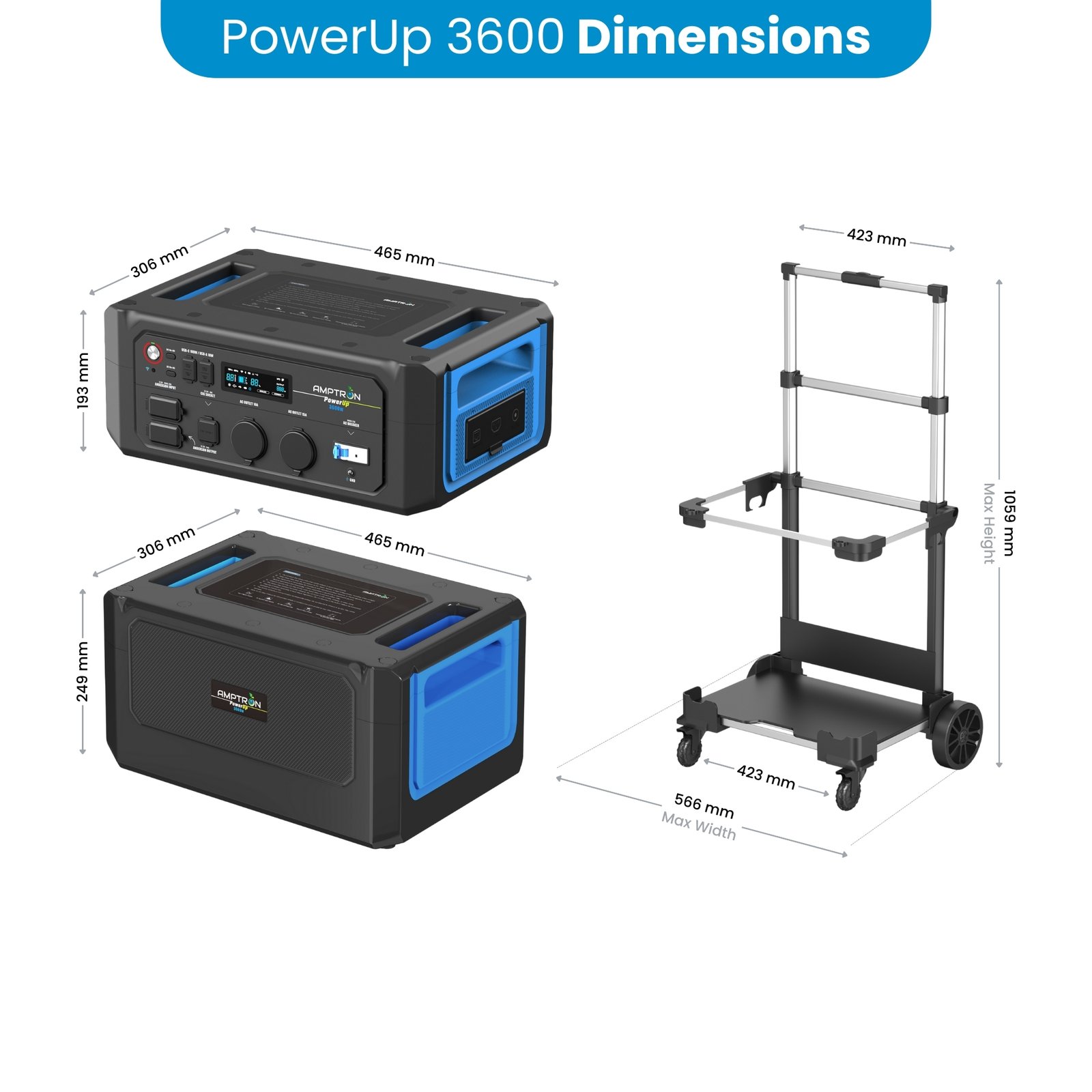

Size (L*W*H) mm
|
465 x 306 x 192mm
|
|
WEIGHT (KG)
|
12Kg
|
|
INPUT BATTERY VOLTAGE RANGE
|
44.8 – 57.6V
|
|
WORKING ENVIROMENT TEMPERATURE
|
0 ~ 45deg C
|
|
DC MPPT Input
|
Anderson SB50 Red 11.5V
100V/30A (Recovery 13.2V)
Max 1000W
|
|
AC INPUT
|
200-240V 10A 50/60Hz Max 1800W
|
|
DC OUTPUT (USB A) x 2
|
5v 3A / 9V2A / 12V 1.5A QC 3.0
|
|
DC OUTPUT (USB C) x 2
|
5V / 9V / 12V / 15V / 20V 5A max PD 100W
|
|
DC OUTPUT CIG SOCKET x 1
|
12V 10A Max
|
|
DC OUTPUT ANDERSON SB50
|
12v 50A (Max 600W)
|
|
AC OUTPUT 10A
|
AC200-240V / 10A Max 50/60Hz / Rated Power 2300W
|
|
AC OUTPUT 15A
|
AC200-240V / 15A Max 50/60Hz / Rated Power 2450W
|
|
NOISE
|
Output Power ≥5KW N≤65dB
Output Power <5KW N≤55dB
|
|
AC OUTPUT WAVE FORM
|
Pure Sinewave Efficiency >88%
|
|
AC PROTECTION
|
CHINT RCBO C25 RCM N136
|
|

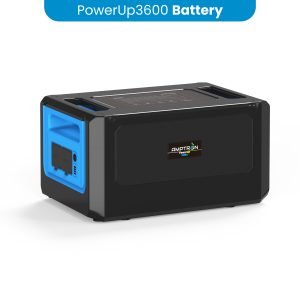

BATTERY
|
||
MODEL / SKU
|
AT-PORT-POWERUP-BATT-3072WH
|
|
WEIGHT (KG)
|
29kg
|
|
RATED CAPACITY
|
3072Wh (51.2V) / 60Ah
|
|
CELL LAYOUT
|
16S3P
|
|
VOLTAGE
|
51.2V
|
|
BATTERY CELL
|
40138 / LiFePO4 40138
|
|
CHARGING TEMPERATURE
|
0 – 45°C | |
DISCHARGING TEMPERATURE
|
-20 – 60°C | |
STORAGE TEMPERATURE
|
-10 – 45°C | |
WORKING HUMIDITY
|
20% – 90% (No Condensation at this level) | |
STANDBY TIME
|
3 Months (Recharge every 3 months) |

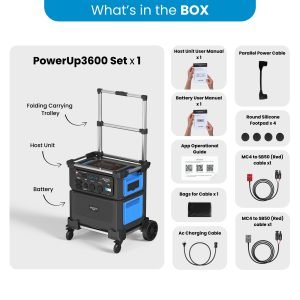

- 1 x Host (Inverter Charger Control Unit)
- 1 x 3072Wh Battery Unit
- 1 x Carrying Trolley
- 1 x PowerUp Host User Manual
- 1 x PowerUp Battery User Manual
- 1 x Parallel Power Cable
- 4 x Rounded silicone footpad
- 1 x Cable Bag
- 1 x MC4 to SB50 (Red) Cable
- 1 x MC4 to SB50 (Grey) Cable
Please click the link and read:
Amptron’s PowerUp3600 Warranty Guide
