Description

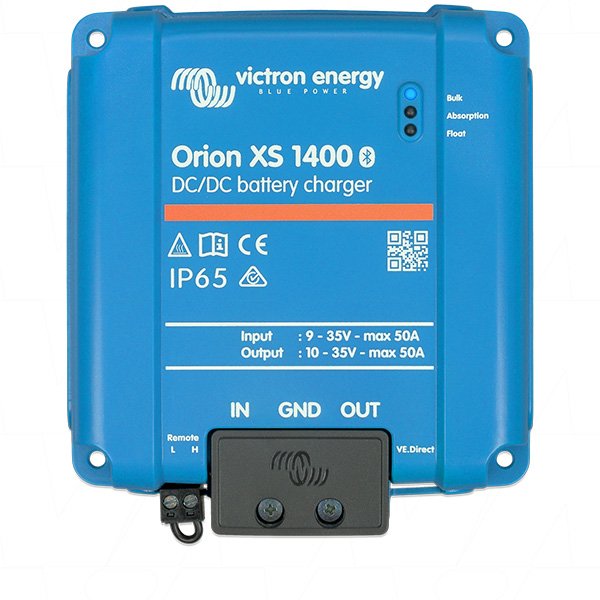

🔋 Victron Energy Orion XS 1400 DC-DC Battery Charger
The Victron Energy Orion XS 1400 delivers fast and efficient DC-DC charging.
It supports dual battery systems in vehicles, caravans, and marine setups.
It provides reliable performance and protects your system at all times.
The Victron Energy Orion XS 1400 works as both a DC-DC charger and a power supply.
It supports a wide input and output voltage range.
It performs well in vehicles with smart alternators like Euro 5 and Euro 6.
It ensures stable charging even with voltage drops in long cable runs.
⚡ Adjustable Charging Current
You can adjust the charging current in 0.1A steps.
Use the VictronConnect app for easy control.
🔄 Multi-Voltage Support
The Victron Energy Orion XS 1400 supports 12V and 24V systems.
It delivers up to 50A output current.
It provides up to 1400W at 24V and 700W at 12V.
You can configure multiple setups:
- 12V to 12V
- 12V to 24V
- 24V to 12V
- 24V to 24V
🚗 Smart Alternator Compatibility
The charger detects when the engine runs.
It activates only when the alternator supplies power.
It prevents unnecessary battery drain.
🔋 Adaptive 4-Stage Charging
The Orion XS uses a smart 4-stage charging algorithm.
It adjusts absorption time based on battery usage.
It protects batteries from overcharging.
It ensures full recharge after deep discharge.
❄️ Battery Protection Features
The charger shuts down at low temperatures to protect lithium batteries.
It stops operation when input voltage drops too low.
It restarts automatically when voltage returns to normal.
🔌 Remote On/Off Control
You can control the unit remotely.
Use a switch, BMS, or the VictronConnect app.
🛡️ Advanced Protection
The unit protects against overload, short circuit, and overheating.
It reduces output power when temperatures rise.
🔗 Parallel Capability
You can connect multiple units in parallel.
This increases total output power.
📱 Bluetooth Smart Technology
The Victron Energy Orion XS 1400 includes built-in Bluetooth.
You can monitor and adjust settings wirelessly.
The app shows real-time data, warnings, and alarms.
🌐 Smart Networking & Connectivity
The charger supports VE.Smart Networking.
It uses battery data to optimise charging performance.
It improves efficiency and extends battery life.
It also includes a VE.Direct port.
You can connect it to GX devices for advanced monitoring and control.
🌧️ IP65 Rated Protection
The Orion XS features an IP65 rating.
It resists dust and heavy rain.
It performs reliably in tough environments.
