Amptron

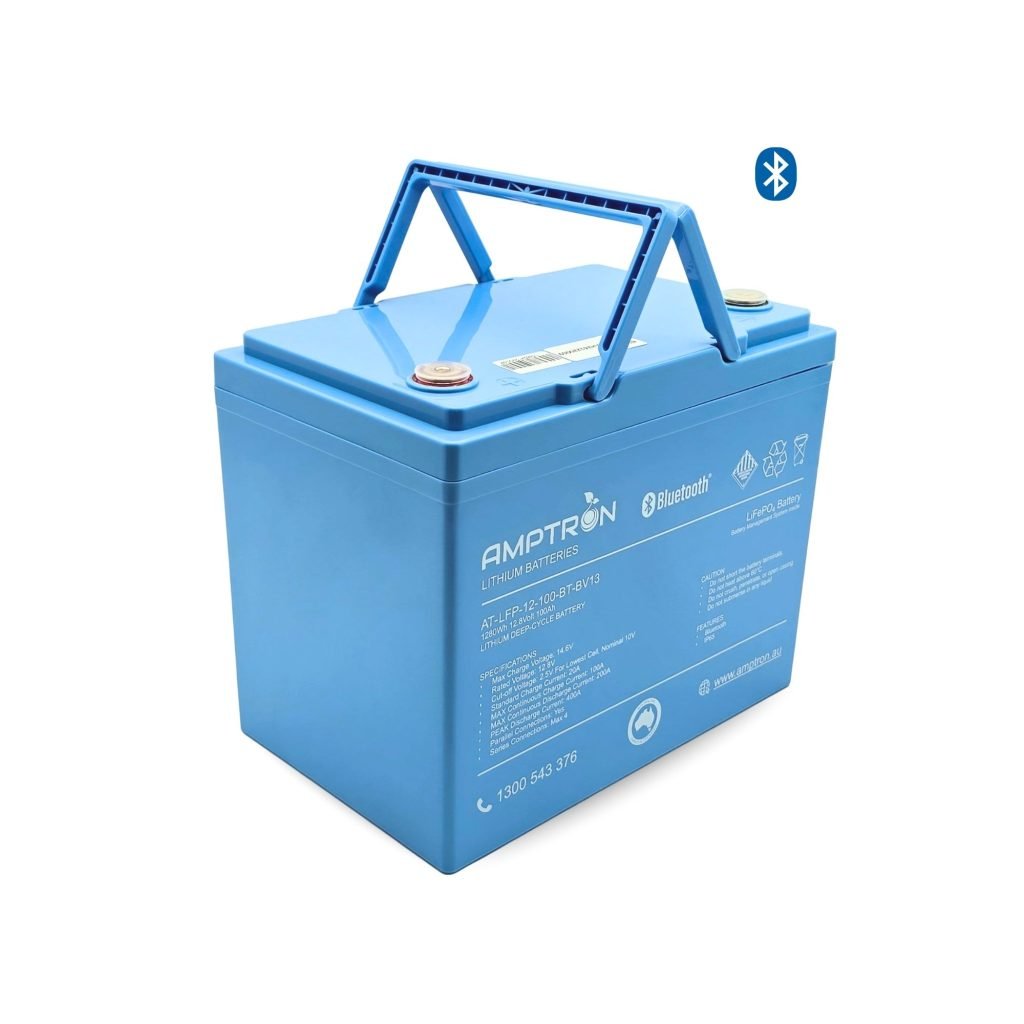

12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth
🛒 Online Only
Pay in 4 interest-free with
or
or
$784.00
or 4 × $196.00 with AfterPay
or $78.40/wk with Zip
✓ Secure Checkout
🛡️ 3-Year Warranty
↩️ Easy Returns
🚚 Fast Shipping
12V 100Ah / 200A Continuous Discharge Compact LiFePO4 Battery with Bluetooth
The Classic model 12V 100Ah Lithium LiFePO4 Battery comes in a very compact form factor and is an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 200A and peak discharge current 400A for 3 seconds.
- 100Ah Capacity (1,280Wh)
- Smaller form factor (L-260mm x W-168mm x H-209mm), 11kg
- >4000 Life Cycles @100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} DoD
- 200A Continuous Discharge Rating (400A peak)
- IP65 Rating
- 4-years local Aussie warranty
Free in-store installation is available at our shops, or you can call us for our competitively priced Roadside and Onsite Service.
Product Description
Detailed information and noted points:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-12-100-BT-BV13
|
12V 100Ah / 200A Continuous Discharge Lithium LiFePO4 battery with Bluetooth Connectivity
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-260mm x W-168mm x H-209mm
|
|
|
Weight
|
11kg
|
|
|
Cell type
|
3.2V 100Ah
|
Prismatic
|
|
Battery module
|
4 pcs 3.2V 102Ah cells, 4 serial
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
100 Ah / 1280Wh
|
|
|
Cycle life
|
> 4000 cycles at 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
14.2 – 14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off voltage
|
2.5V for lowest cell, nominal 10V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
Batteries can be discharged to 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} of the rated capacity
|
|
Standard charge current
|
20A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Optimum charge current range
|
20A (0.2C) to 50A (0.5C)
|
Cell max voltage < 3.65V
|
|
Rapid charging
|
Max. charge current 100A (1C3A)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
200A
|
1.75C, cell min voltage> 2.0v
|
|
Peak discharge current
|
400A
|
3.2C (3 seconds)
|
|
Discharge performance in normal temperature
|
20A (0.2C3A) ≥ 100{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
1C3A ≥90％ |
|
|
Operating temperatures
|
Charge 0℃～55℃ (Ambient)
Discharge -20℃～60℃ (Ambient) Storage -20℃～40℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1} in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Communication
|
Bluetooth
|
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
- ✓ Superior vibration and corrosion resistance
🛡️ Get More Warranty with Battery Australia
Purchase from Battery Australia and get up to 6 months EXTRA warranty — 3 months for buying, plus 3 months for in-store fitting. *T&Cs apply.
| Technical Specifications — 12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth | |
|---|---|
| Dimensions | N/A |
| SKU | AT-LFP-12-100-BT-BV13 |
| Delivery Options | |
|---|---|
| Standard Shipping | $15.00 — 3 to 5 business days |
| Express Shipping | $25.00 — 1 to 2 business days |
| Free Shipping | Orders over $150 — Standard free |
| Click & Collect — 5/17 Benronalds St, Seventeen Mile Rocks | FREE — Ready in 2 hours |
| Click & Collect — 240 Robinson Rd East, Geebung | FREE — Ready in 2 hours |
⚠️ Dangerous Goods: Lithium and lead acid batteries are classified as dangerous goods for shipping. Some remote areas may have restrictions.
