Description

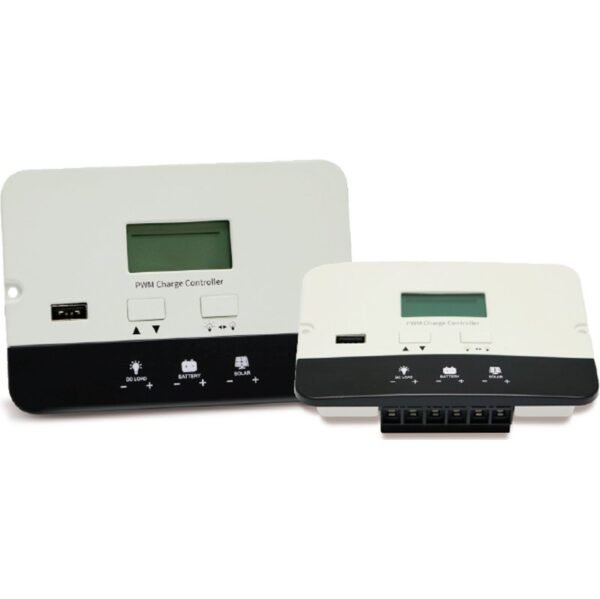

Model: AT-SOLCHR-AP2420V01
Battery System Voltage: 12V/24V Auto (FLD/GEL/SLD) Manual (Li)
No-load Loss: 12ma (12V), 10ma (24V)
Max. Solar input voltage: <55Voc
Rated charging current: 20A
Rated load current: 20A
USB output: 5V 1A DC
Max. Photo-voltaic system input power: 340W/12V 680W/24V
Light Control Voltage: 5V*n
Light Control Delay Time: 10s
Max Load Output Current: 20A
USB Output: 5V 1A
Operating Temperature: -35ºC ~ +45ºC
IP Protection: IP32
Dimensions: L-139mm x W-90mm x H-34.5mm
Weight: 0.2kg
Accessory: Extra Mounting Bracket
Warranty: 2years
|
BATTERY VOLTAGES
|
Flooded Lead Acid
|
Sealed Lead Acid
|
Gel (Default)
|
Lithium (adjustable)
|
|
Equalize Charge Voltage
|
14.8V*n
|
14.6V*n
|
–
|
–
|
|
Boost Charge Voltage
|
14.6V*n
|
14.4V*n
|
14.2V*n
|
Default: 14.2V*n
|
|
Float Charge Voltage
|
13.8V*n
|
13.8V*n
|
13.8V*n
|
–
|
|
Boost Charge Recovery Voltage
|
13.2V*n
|
13.2V*n
|
13.2V*n
|
–
|
|
Over-discharge Recovery Voltage
|
12.6V*n
|
12.6V*n
|
12.6V*n
|
–
|
|
Over-discharge Voltage
|
11.1V*n
|
11.1V*n
|
11.1V*n
|
Default: 11.1V*n
|
