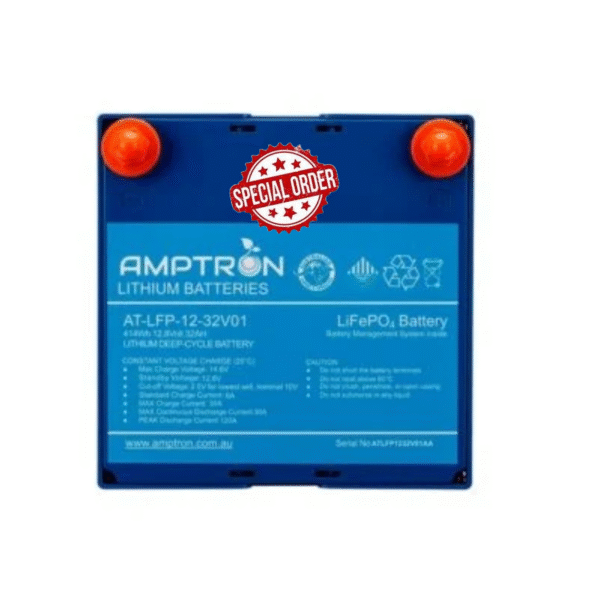

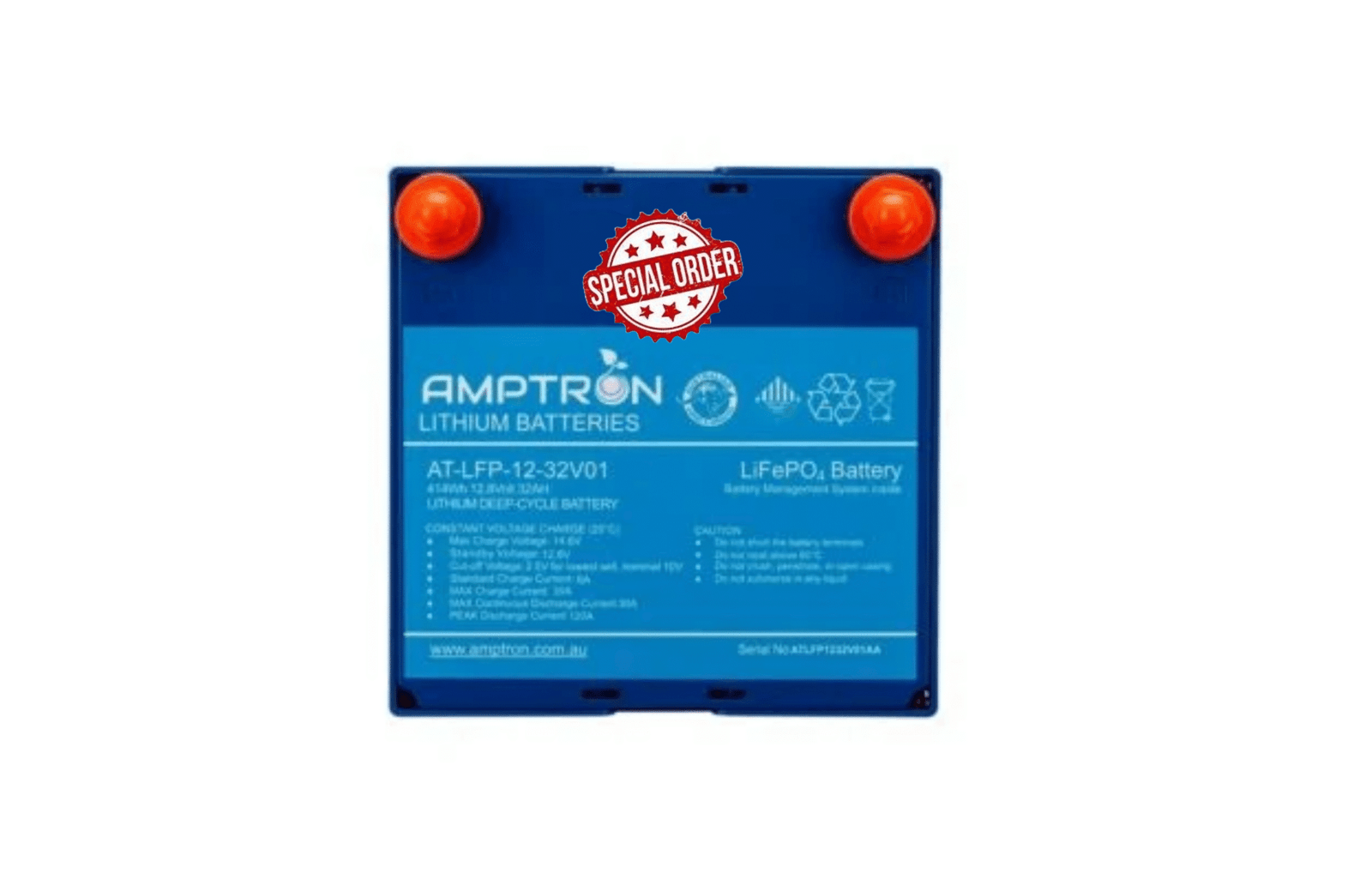

AMPTRON® 12V 32Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for any application currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 30A.
This Combo kit includes a 6A LiFePO4 battery charger. The 6A 12V model charger operates from mains AC 200-240V as input, supplying charging output suitable for nominal 12V LiFePO4 batteries.
These batteries are designed using only the highest quality components and are backed with our 4 year replacement warranty. This includes the use of a robust Battery Management System (BMS), Nickel plated steel cylindrical cells, and internal protection to reduce movement and damaging vibrations. Our batteries can also be placed on their sides providing versatile installation options.
The integrated Battery Management System is designed to monitor, protect, and optimise each cell within the battery. The BMS maximises the performance of the battery by automatically balancing the cells and protecting them from over charging, over discharging, over temperature, and excessive charge or discharge currents. Our integrated BMS allows our batteries to be used as an alternative replacement for most applications requiring deep cycle batteries, however if the charging system does not support a Lithium charge profile, there are some compromises – please contact Amptron for more information.
AMPTRON® warrants each AMPTRON® branded battery sold by AMPTRON® or any of its authorised dealers or distributors worldwide, to be free of defects in materials and workmanship (subject to limits, and in normal conditions, as described later in this warranty) from the date of sale for (Generation 1 Series = 4 years). For the (BluEdge Series = 5 years) & for the (ESS Energy Storage Series = 5 Years & Optional 10 Years).
Please click and read Battery warranty policy
Item
|
Specification
|
Description/Remark
|
Model
|
AT-LFP-12-AND32AV01
|
12V 32Ah Lithium LiFePO4 battery and battery charger Combo kit
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
Battery dimensions
|
L-175mm x W-175mm x H-110mm
|
|
Weight
|
4.2kg
|
|
Standard capacity(0.2C6A)
|
32 Ah / 408Wh
|
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Cycle life
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
Charge voltage
|
14.4 – 14.6V
|
Max. charge voltage per cell: 3.65V
|
Cut-off voltage
|
10V
|
Discharge voltage per cell: 2.50V
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
Standard charge current
|
6A
|
0.2C
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
Max continuous discharge current
|
30A
|
Maximum Instantaneous Current 120A 5ms
|
Operating temperatures
|
Standard 0℃~45℃
Discharge -20℃~60℃ Storage 0℃~40℃ |
Recommended long term storage temperature is 15℃~25℃
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12 months
|
Battery should be kept at 0℃ ~ 40℃ where it’s dry, clean and well-ventilated.
|
Discharge output
|
M8 Bolt Terminal Connection
|
|
|
||
Charger
|
|
|
Model
|
AMPTRON C300
|
6A 14.4V LiFePO4 Battery Charger
|
Input Voltage
|
min 200Vac to max 240Vac 50Hz
|
|
Charging input
|
T-Anderson connectors Length:330±10 mm
|
