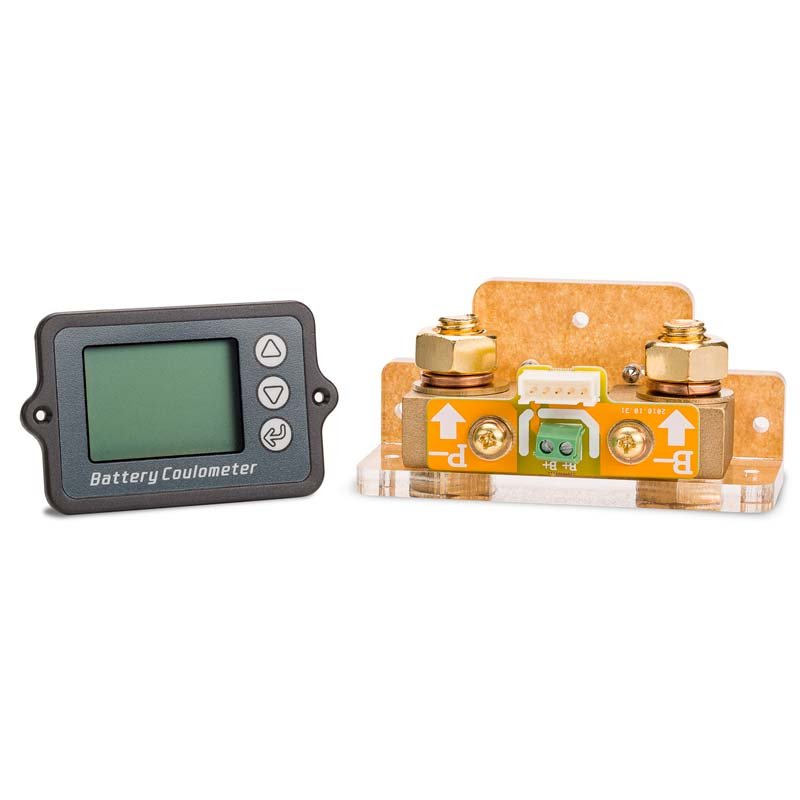

100A Coulometer Battery Monitor with Shunt
The AMPTRON® battery monitor is a high precision current type battery capacity meter (also known as a coulometer) designed to monitor the performance of battery systems. The unit continuously measures voltage, charge and discharge current, energy consumed and remaining battery capacity (State of Charge). This information leads to more efficient use of the battery system.
The product can monitor most battery types, include Lithium ion, Lithium Iron Phosphate, Lead Acid and Nickel-metal Hydride batteries with a working voltage from 8V to 80V.
The monitor can monitor large continuous current flows of up to 100A continuous, and up to 150A for 10s.
Purchase Online Below OR
Find Your Nearest Reseller
Free in-store installation is available at our shops, or you can call us for our competitively priced Roadside and Onsite Service.
Product Description
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-COMBOMON-150A-8-80-V03
|
100A Coulometer – Battery monitor with shunt
|
|
Working Voltage
|
8V to 80V
|
Can tolerate short voltage spikes of up to 120V
|
|
Maximum current
|
100A continuous and 150A for up to 10s
|
|
|
Working dissipation
|
10mA to 12mA
|
|
|
Standby dissipation
|
0.5mA to 0.8mA
|
|
|
Sleep dissipation
|
50uA to 60uA
|
|
|
Voltage accuracy
|
±2.0{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
|
|
Current accuracy
|
±2.0{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
|
|
Capacity accuracy
|
±2.0{08cb6795595cf4832c99cea482302116df95ae2d61a0357cbecbcc60351753c1}
|
|
|
Backlight on current
|
40mA to 50mA
|
|
|
Backlight off current
|
30mA to 40mA
|
|
|
Comms Cable Length
|
3m
|
8M Cable optional extra
|
|
Preset capacity value
|
0.1Ah to 999Ah
|
|
|
Temperature range
|
0℃ to 45℃
|
|
|
Weight
|
20g
|
|
|
Size
|
52*36*15.6mm
|
|
|
Protection Category
|
IP55
|
Not suitable for outdoor use
|
- ✓ Superior vibration and corrosion resistance
