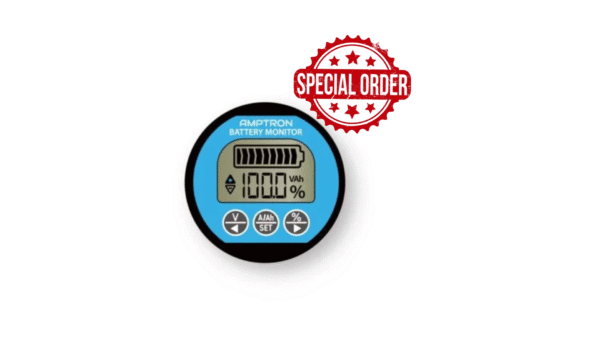

500A Battery Monitor with Shunt and Bluetooth Coulometer

SKU: AT-COULMON-BT-500A-8-80AV01

$179.00

10 People watching this product now!
product-delivery

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
Brand

Amptron

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “500A Battery Monitor with Shunt and Bluetooth Coulometer”

Your email address will not be published. Required fields are marked *

Description

The AMPTRON® battery monitor is a high-precision current-type battery capacity meter (also known as a coulometer) designed to monitor the performance of battery systems. The unit continuously measures voltage, charge and discharge current, energy consumed, and remaining battery capacity (State of Charge). This information leads to more efficient use of the battery system.

The product can monitor most battery types, including Lithium-ion, Lithium Iron Phosphate, Lead Acid, and Nickel-metal Hydride batteries with a working voltage from 8V to 80V.

Quick and easy setup to display key battery information such as State of Charge (both % and Ah), Voltage, Current draw, Temperature, Cycles etc.

Suitable for compliance with AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards.

Built-in audible alarm that will trigger on adverse battery conditions prior to battery shut-down.

Conveniently view battery alarm codes.

View consolidated battery information for a bank / group of connected BluEdge batteries in one convenient display (for models that supports parallel communication). For the 24V, 36V and 48V batteries – dive down into cell voltage data for each connected battery in the group.

Easy fixing with flexible flush mounted design and range extendable via common UTP network cables. *** Please note, the display unit requires a compatible communications adapter cable to connect to a battery. Refer to the table below for the compatible cable for each battery model.

Monitor Specifications:

​Preset capacity value

0.1Ah to 999Ah

Item
Specification
Description/Remark
Model
AT-COULMON-BT-500A-8-80V01
500A Coulometer – Battery monitor with shunt + BT
Working Voltage
8V to 80V
Can tolerate short voltage spikes of up to 120V
Maximum current
500A continuous
Working dissipation
10mA to 12mA
Standby dissipation
0.5mA to 0.8mA
Sleep dissipation
50uA to 60uA
Voltage accuracy
±2.0%
​Current accuracy
​±2.0%
​Capacity accuracy
​±2.0%
​Backlight on current
40mA to 50mA
​Backlight off current
30mA to 40mA
Communication Interface
Bluetooth Comms
Interface Comms Cable
Length = 3M
8M Cable available optional extra
Preset Capacity Value
0.1Ah to 999Ah
​Temperature range
0℃ to 45​℃
​Weight
20g
Size
​52*36*15.6mm
Protection Category
IP55
Not suitable for outdoor use

Warranty: 2 years

BluEdge Battery Display – User Manual
BluEdge Battery Display – Communication cables mapping

Please click and read Monitor Warranty Policy
