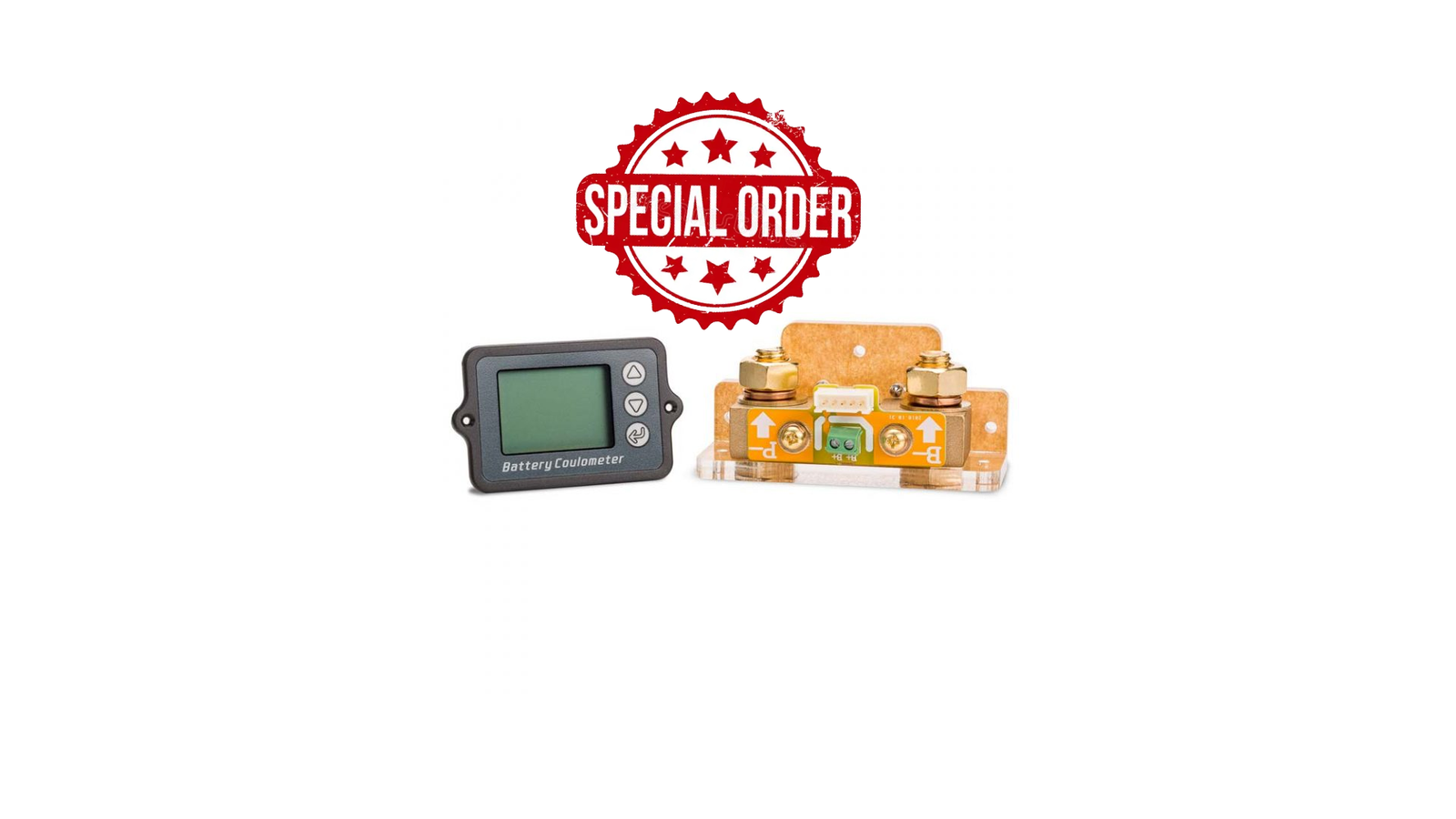

100A Battery Monitor with Shunt and Coulometer

SKU: AT-COMBOMON-150A-8-80V03

$136.00

15 People watching this product now!
product-delivery

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
Brand

Amptron

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “100A Battery Monitor with Shunt and Coulometer”

Your email address will not be published. Required fields are marked *

Description

The AMPTRON® battery monitor is a high precision current type battery capacity meter (also known as a coulometer) designed to monitor the performance of battery systems. The unit continuously measures voltage, charge and discharge current, energy consumed and remaining battery capacity (State of Charge). This information leads to more efficient use of the battery system.

The product can monitor most battery types, include Lithium ion, Lithium Iron Phosphate, Lead Acid and Nickel-metal Hydride batteries with a working voltage from 8V to 80V.

The monitor can monitor large continuous current flows of up to 100A continuous, and up to 150A for 10s.

The monitor combo system kit is easy to install DIY. The meter is suitable for use in mobile and portable powerpacks and equipment; cars; boats; recreational vehicles; Offroad and 4×4 vehicles; e-bikes and many other applications. Here is a list of product features:-
Battery status.
Forward (positive) and Reverse (negative) current flow at the same time.
Consumed energy (as Amp hours).
Remaining battery capacity (as a % or Amp hours)
Dual display for Voltage (V)
Current (A), Power (W)
Ampere-hour (Ah),
Working Hours (H), Charging Time, Discharging Time
Battery capacity (%)
Flexible on-line calibration function.
Low power consumption.
No external power required when monitoring above 10V

Monitor Specifications:

Item
Specification
Description/Remark
Model
AT-COMBOMON-150A-8-80-V03
100A Coulometer – Battery monitor with shunt
Working Voltage
8V to 80V
Can tolerate short voltage spikes of up to 120V
Maximum current
100A continuous and 150A for up to 10s
Working dissipation
10mA to 12mA
Standby dissipation
0.5mA to 0.8mA
Sleep dissipation
50uA to 60uA
Voltage accuracy
±2.0%
​Current accuracy
​±2.0%
​Capacity accuracy
​±2.0%
​Backlight on current
40mA to 50mA
​Backlight off current
30mA to 40mA
Comms Cable Length
3m
8M Cable optional extra
​Preset capacity value
0.1Ah to 999Ah
​Temperature range
0℃ to 45​℃
​Weight
20g
Size
​52*36*15.6mm
Protection Category
IP55
Not suitable for outdoor use

WARRANTY: 2 years
