AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

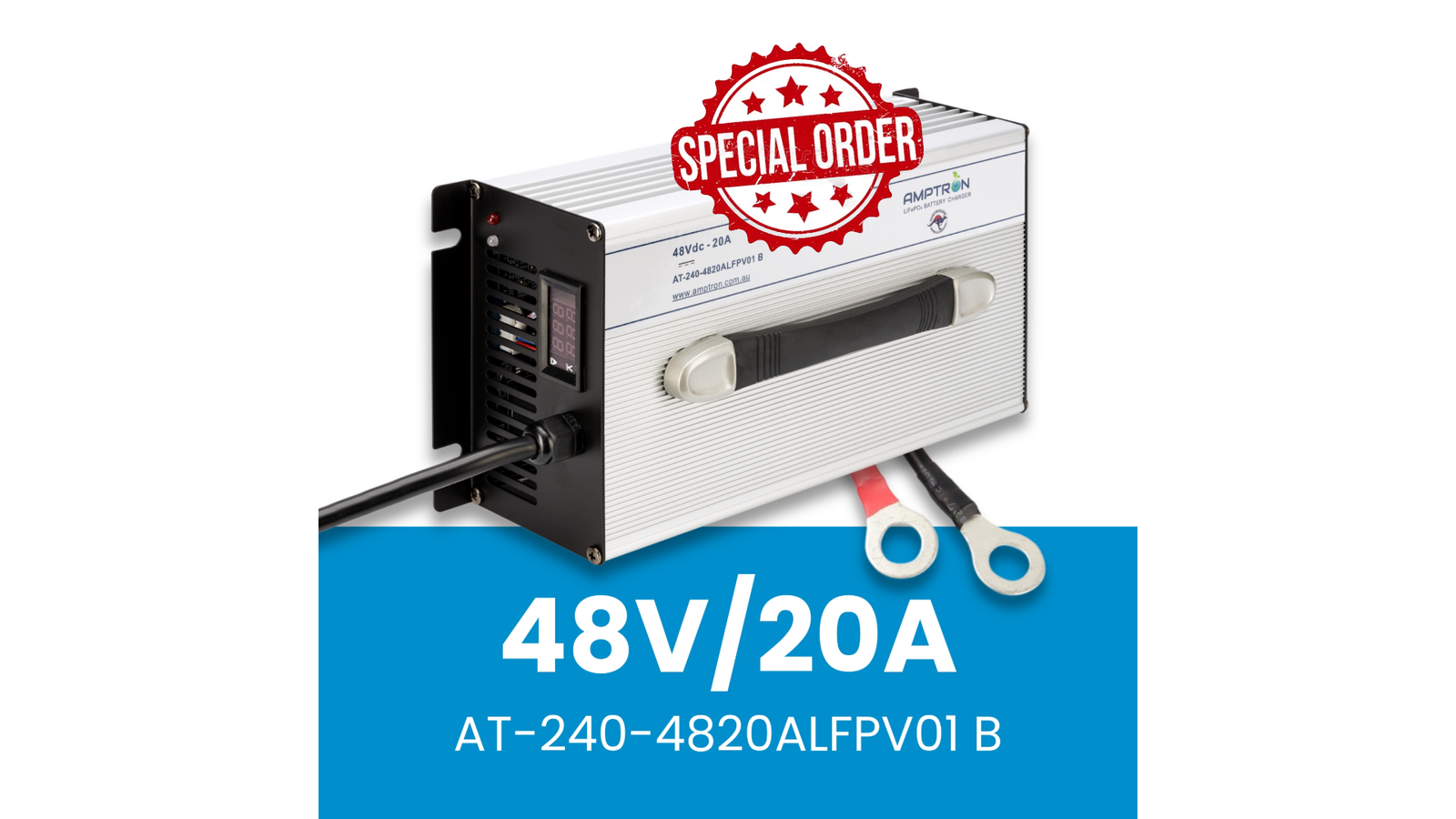

The 48V 20A model charger operates from mains AC 200-260V as input, supplying up to 20A charging output suitable for nominal 48V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
Part Number: AT-240-4820ALFPV01
Input Voltage: min 200Vac to max 260Vac
Input Power: Max 1450W
Constant Charge Voltage: Vdc min 58.1V to max 58.7V
Constant charge current: Min 19A to max 21A
Charge complete current: Vdc min 1.2A to max 1.8A
Ripple voltage: 650mV
Efficiency: 85% At Full Load
Product Dimensions: L-260mm x W-150mm x H-90mm
Warranty: 2 years
