Description

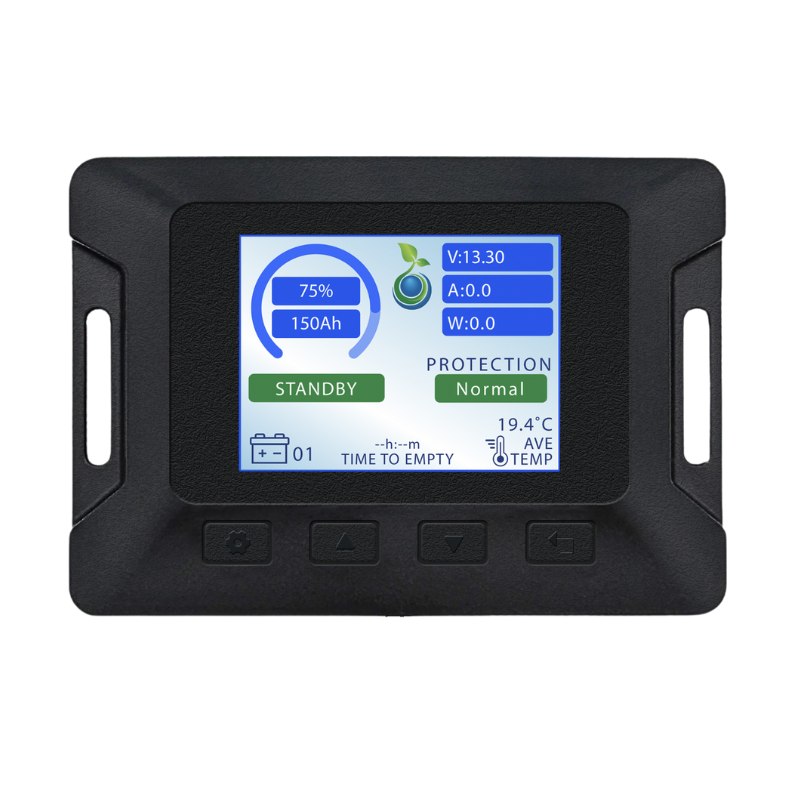

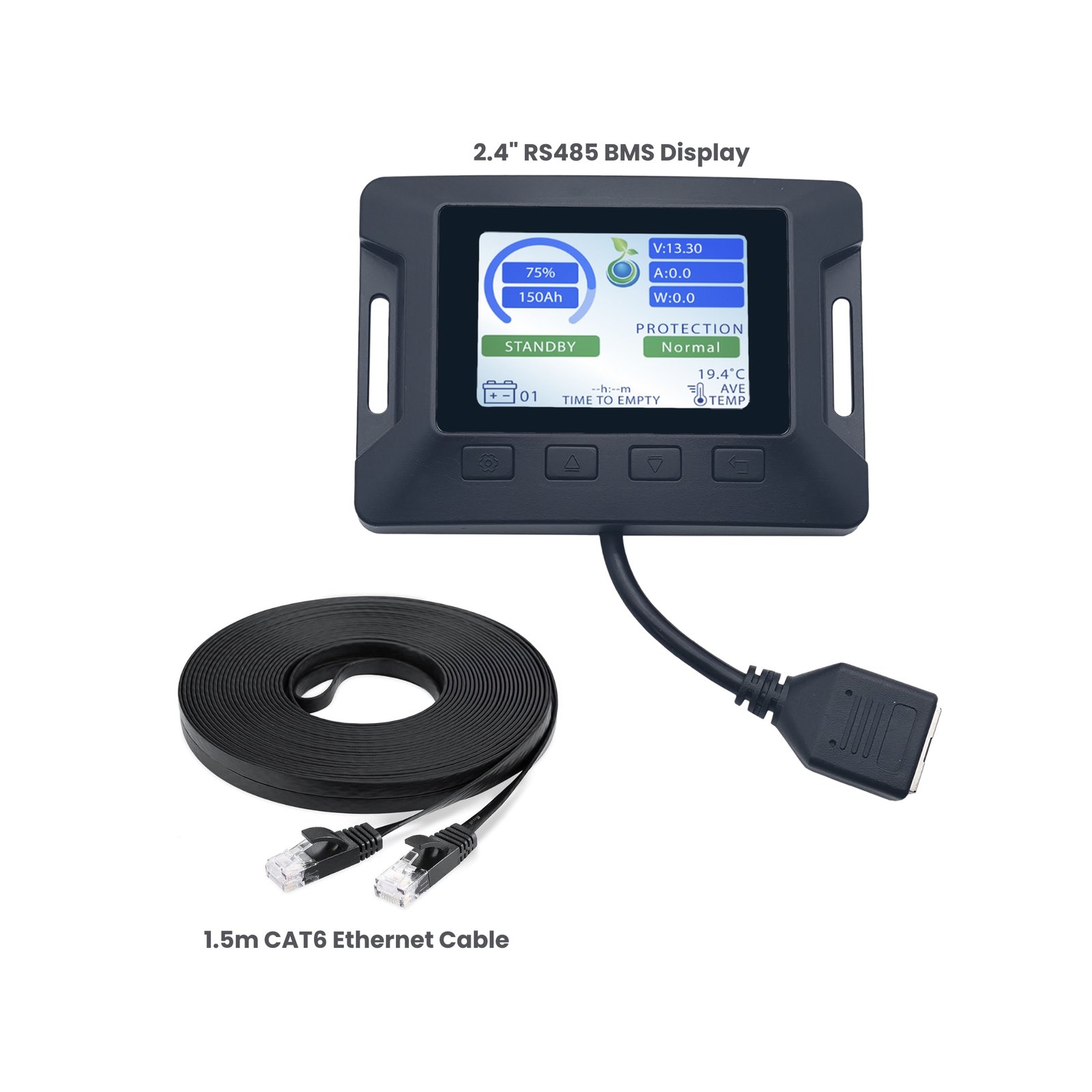

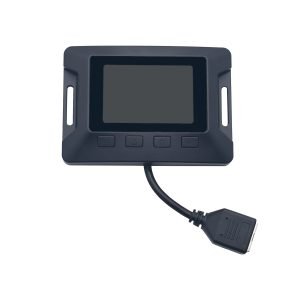

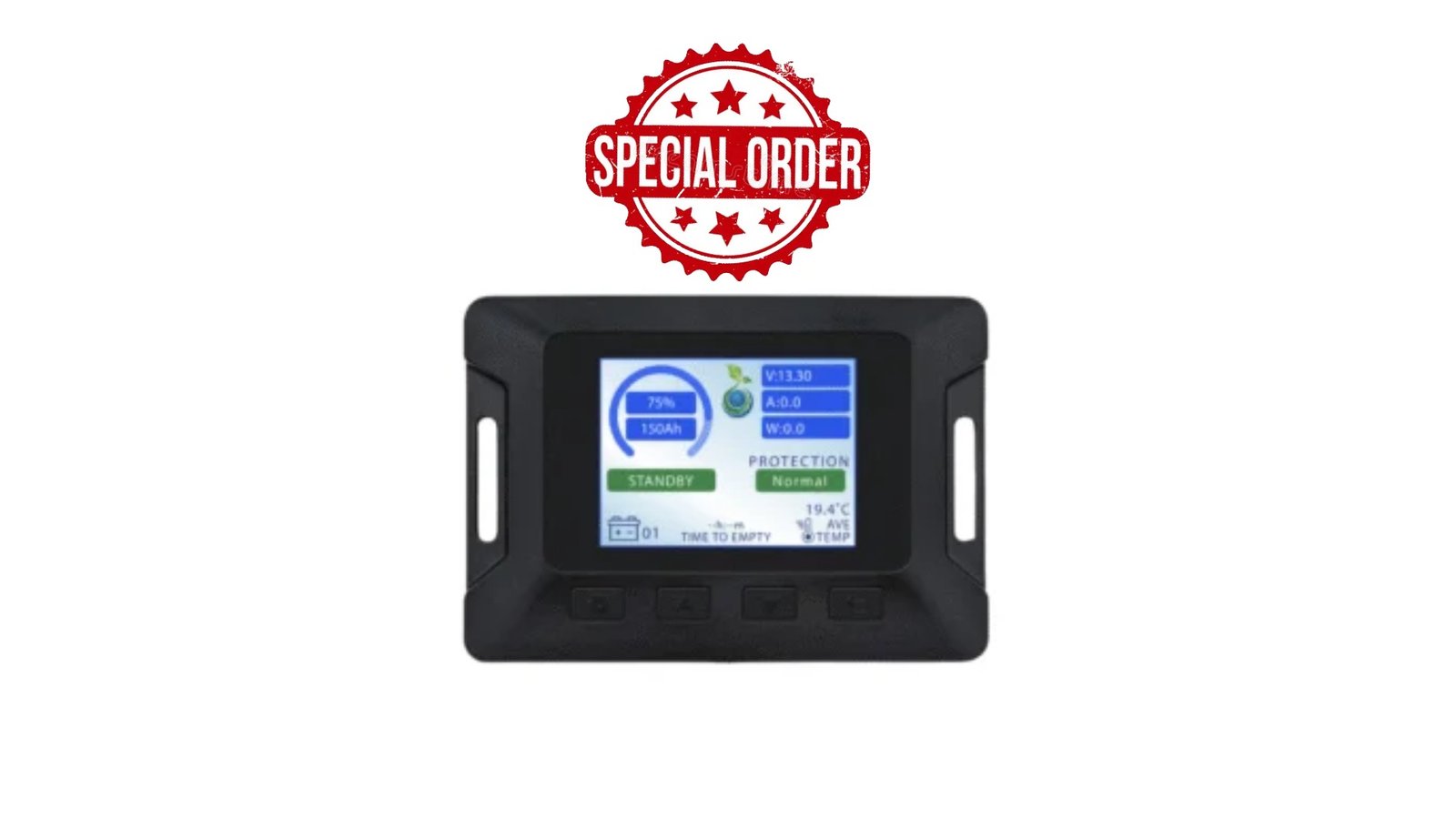

The AMPTRON® BluEdge RS485 BMS LCD Display is a 2.4-inch full-colour screen with built-in audible alarm, designed to connect seamlessly with any BluEdge battery. It provides real-time data including SOC, voltage, current, power, temperature, and cycle count, and supports consolidated monitoring of parallel-connected batteries. Now supplied with a 1.5m CAT6 Ethernet cable. Purchase with any BluEdge series battery and get 10% off this product. Longer ethernet cable available on request.
Monitor Features:

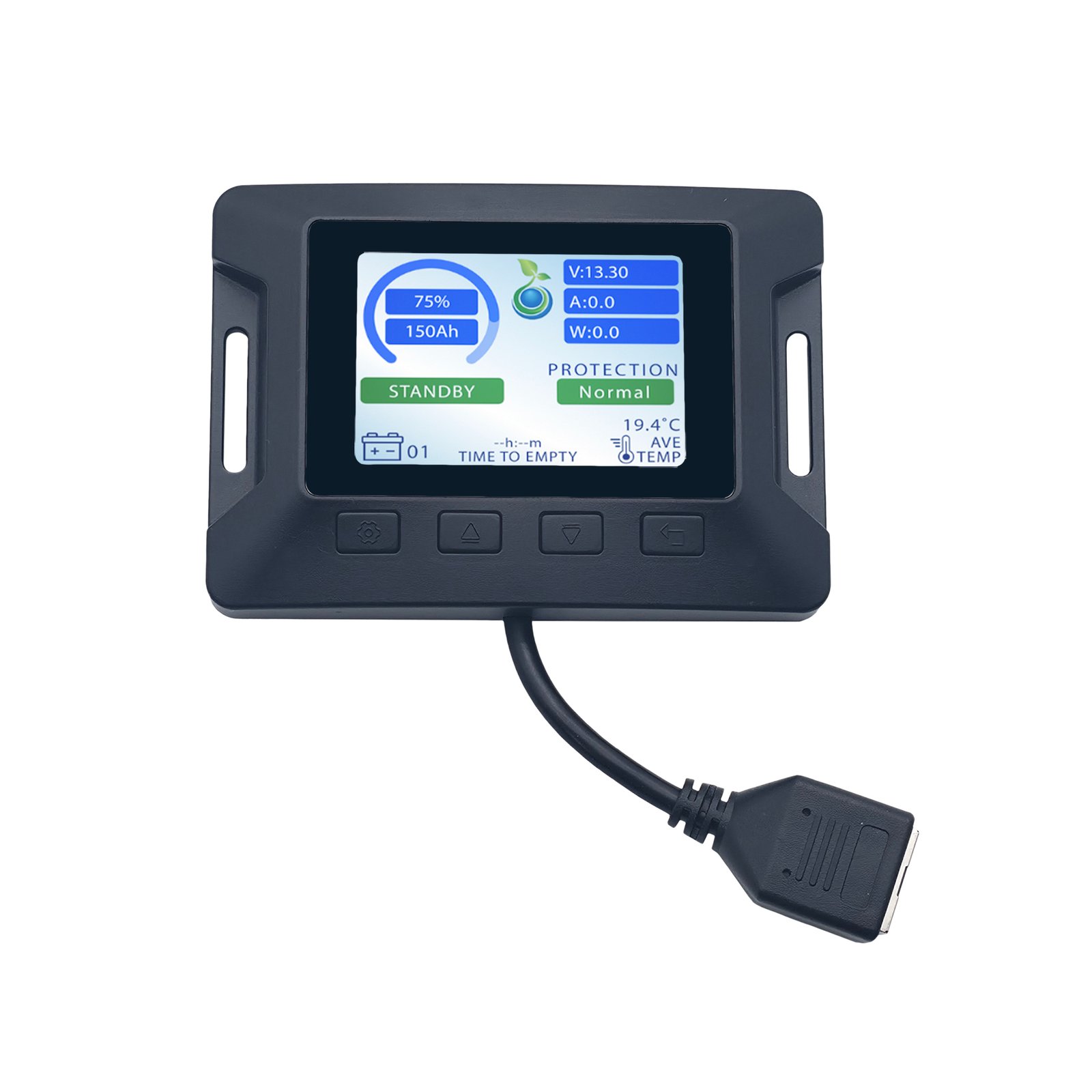

Quick and easy setup to display key battery information such as State of Charge (both % and Ah), Voltage, Current draw, Temperature, Cycles etc.
Suitable for compliance with AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards.
Built-in audible alarm that will trigger on adverse battery conditions prior to battery shut-down.
Conveniently view battery alarm codes.

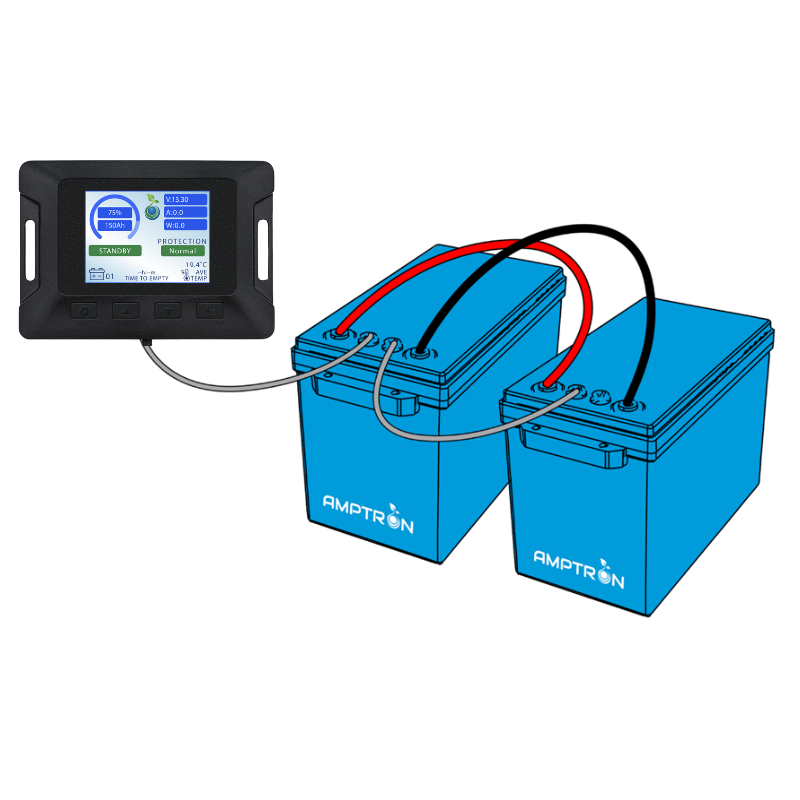

View consolidated battery information for a bank / group of connected BluEdge batteries in one convenient display (for models that supports parallel communication). For the 24V, 36V and 48V batteries – dive down into cell voltage data for each connected battery in the group.
Easy fixing with flexible flush mounted design and range extendable via common UTP network cables. *** Please note, the display unit requires a compatible communications adapter cable to connect to a battery. Refer to the table below for the compatible cable for each battery model.
| Battery model | Protocol | Communication cable adapter required for display | Parallel communication supported? |
| AT-LFP-12-100-BTC-BV10 | RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series) | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-200-BTC-BV10 | RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series) | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-200-BTC-DV10 | RS485 MODBUS RTU C JBD STD | AT-BE-CAN-RS485-COMM-AV01 | No |
| AT-LFP-12-400-BTC-BV10 | RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series) | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-400-BTC-DV10 | RS485 MODBUS RTU C JBD STD | AT-BE-CAN-RS485-COMM-BV01 | No |
| AT-LFP-24-100-BTC-BV10 | RS485 MODBUS RTU C JBD ESS | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-24-200-BTC-BV10 | RS485 MODBUS RTU C JBD ESS | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-36-100-BTC-AV10 | RS485 MODBUS RTU C JBD ESS | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-48-100-BTC-AV10 | RS485 MODBUS RTU C JBD ESS | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
Monitor Specifications:
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-BMSMON-2.4-KIT
|
BluEdge LCD 2.4-inch full-colour RS485 BMS display
|
| Display | Full Colour LCD | |
| Preset capacity range | 0.1Ah to 999Ah | |
|
Interface Comms connection
|
RS485
|

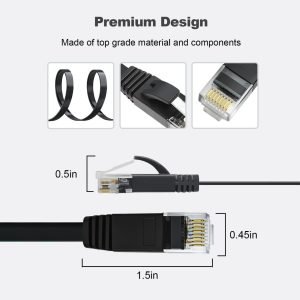

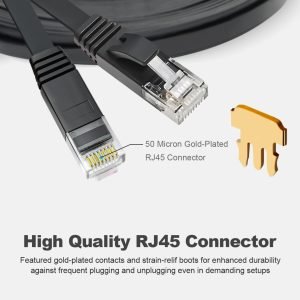

Using a UTP CAT5 or CAT6 cable (CAT6 Cable Included)
|
|
Weight
|
20g
|
|
|
Size
|
100*70*15mm
|
|
|
Protection Category
|
IP55
|
Not suitable for outdoor use
|
