Description

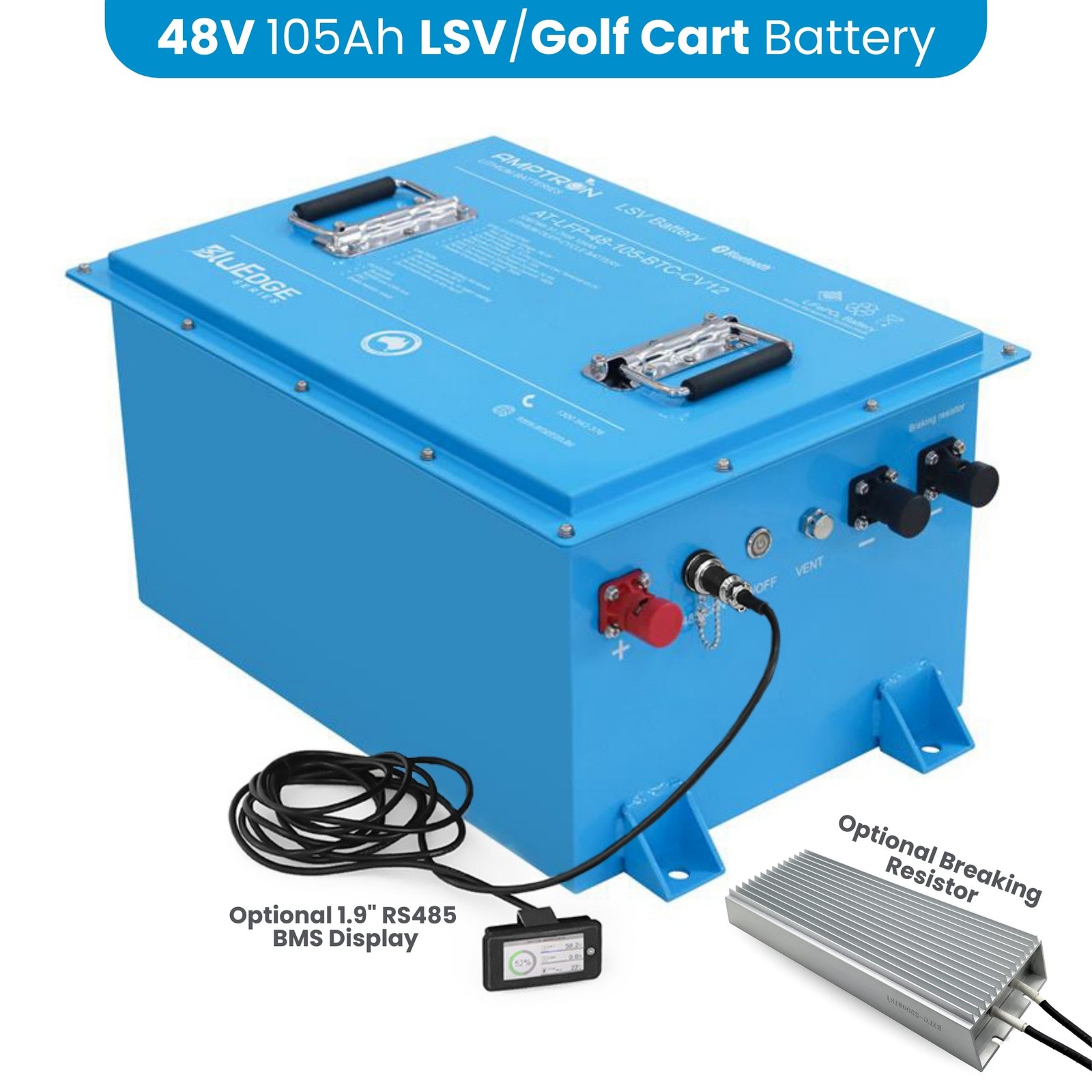

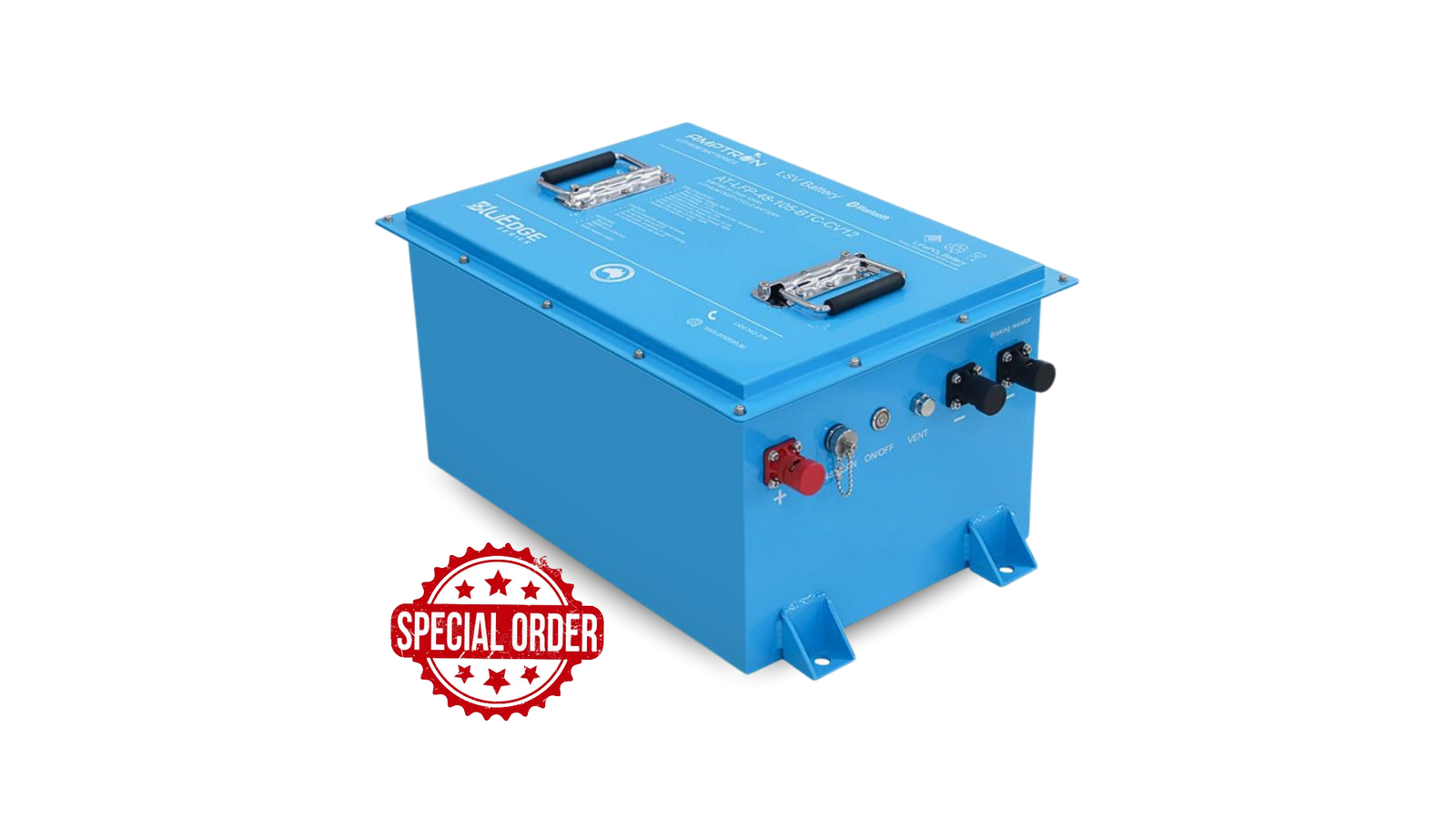

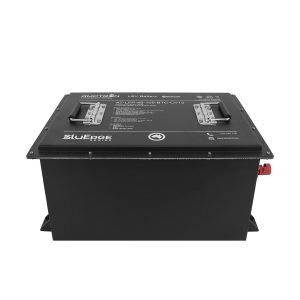

AMPTRON® 48V 105Ah Lithium LiFePO4 Golf Cart Battery – High Performance EV Battery
The AMPTRON® 48V 105Ah Lithium LiFePO4 Battery is purpose-built for golf carts, low-speed electric vehicles (LSVs), and utility EVs, delivering powerful performance, long service life, and intelligent battery monitoring. Designed using safe and reliable LiFePO4 lithium technology, this battery provides superior energy efficiency, lightweight performance, and long-lasting durability compared to traditional lead-acid batteries.
With an impressive 105Ah capacity (5376Wh) and 180A continuous discharge capability, the battery delivers strong and reliable power for electric motors. The advanced Battery Management System (BMS) ensures safe operation by protecting against overcharging, over-discharging, overheating, and short circuits.
The built-in Bluetooth connectivity allows users to monitor real-time battery performance directly from their smartphone via Android or iOS apps. Optional accessories such as a colour LCD display and braking resistor provide additional control and safety features for regenerative braking systems.
Designed to withstand demanding environments, the battery features IP67 water resistance, making it ideal for humid or outdoor applications.
Key Features
-
48V 105Ah Lithium LiFePO4 Battery (5376Wh)
-
3500 cycles at 100% Depth of Discharge
-
180A continuous discharge / 350A peak discharge
-
Built-in Bluetooth monitoring (iOS & Android)
-
CANbus and RS485 communication compatibility
-
IP67 water-resistant design
-
High-performance Battery Management System
-
Ideal for golf carts, LSVs, and electric utility vehicles
-
Backed by an Australian 5-year warranty
LSV BluEdge Battery Series
The Amptron BluEdge LSV series is specifically engineered for electric vehicles and golf carts, offering high current capability and advanced battery management for optimal performance. With high-quality prismatic lithium cells, the battery provides reliable power and an extended cycle life of up to 3500 cycles, significantly reducing long-term energy costs.

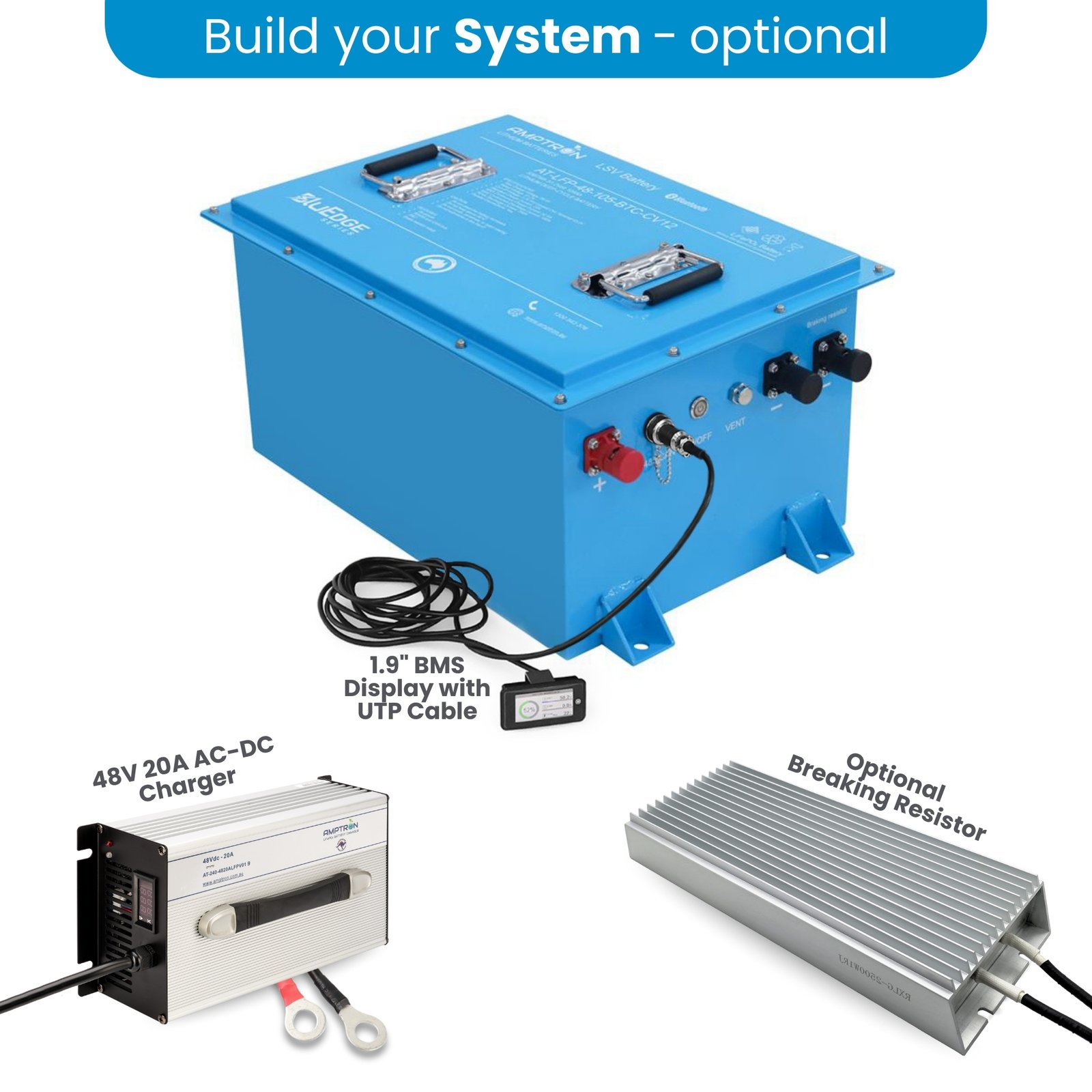

Optional accessories include:
-
LCD battery display
-
Brake resistor for regenerative braking protection
-
CAN/RS485 communication cable
The brake resistor accessory helps maintain safe speeds when driving downhill by preventing regenerative braking overvoltage, protecting the battery system and improving overall safety.
Technical Specifications
Model: AT-LFP-48-105-BTC-CV12
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Rated Capacity: 105Ah / 5376Wh
Rated Voltage: 51.2V
Cycle Life: 3500 cycles at 100% DoD

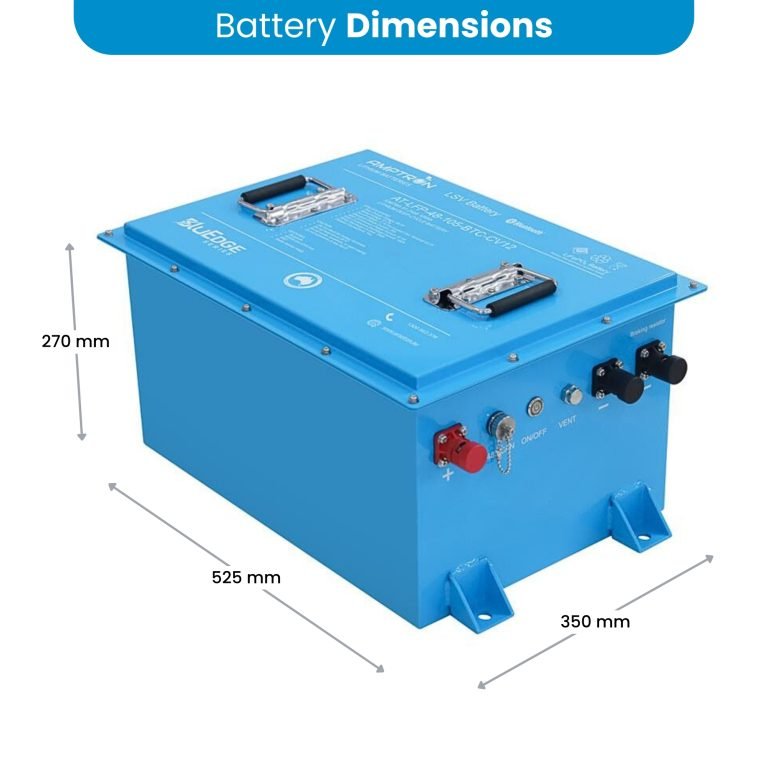

Dimensions: 525mm × 350mm × 270mm
Weight: 51kg
Continuous Discharge: 180A
Peak Discharge: 350A (30 seconds)
Operating Voltage Range: 43.2V – 58.4V
Maximum Charge Voltage: 58.4V
Operating Temperature:
-
Charge: 0°C – 55°C
-
Discharge: -20°C – 55°C
Protection Rating: IP67 Water Resistant
Perfect Applications
-
Golf carts
-
Low-speed electric vehicles (LSVs)
-
Utility electric vehicles
-
Electric transport carts
-
Industrial EV equipment
